A6A Series

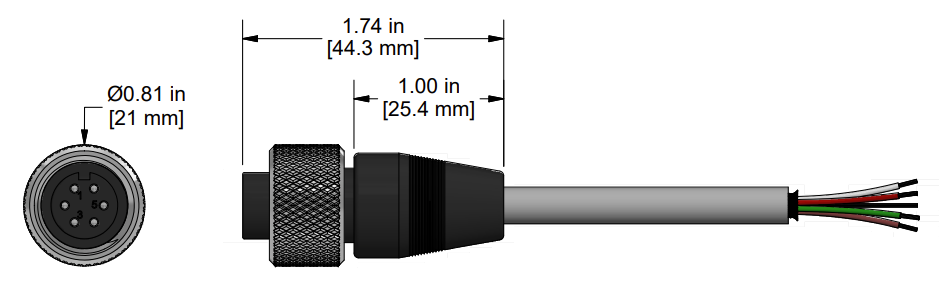

6 Socket MIL-Style, Polycarbonate Molded Connector, Compatible with CTC Loop Power Triaxial Sensors, Permanent Mount, 250 °F (121 °C) Max Temp
Product Features
- 6 Socket Connection for use with CTC Triaxial Loop Power Sensors
- Designed to Withstand a Wide Variety of Industrial Applications
- 316L Stainless Steel Locking Ring for Added Durability and Corrosion Resistance
| Specifications | |
|---|---|
| Application | Permanent Mount |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 6 Socket MIL-Style |
| Shell Material | Polycarbonate Molded |
| Connector Insert Material | Polycarbonate |
| Rating | IP68 |
| Pin-Out | 1=Ch. Y (+) Loop Power 2=Ch. X (+) Loop Power 3=Ch. Z (+) Loop Power 4=Ch. Y (-) Loop Power Return 5=Ch. Z (-) Loop Power Return 6=Ch. X (-) Loop Power Return |
