AC128 Series

Low Cost, High G Measurement Accelerometer, Side Exit 2 Pin Connector, 50 mV/g, ±15%
AC128-1A
2 Pin Connector
Connector Pin Polarity
A (+) Signal/Power
B (-) Common
A drawing showing the dimensions and pin configuration of a CTC AC128 industrial accelerometer.
Stock Product
AC128-3A
CB206 Armored Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
A drawing showing the dimensions and pin configuration of a CTC AC128 industrial accelerometer.
Built To Order
AC128-6A
CB611 Heavy Duty Armored Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
A drawing showing the dimensions and pin configuration of a CTC AC128 industrial accelerometer.
Built To Order
Specifications Standard Metric
Part Number AC128 M/AC128
Sensitivity (±15%) 50 mV/g
Frequency Response (±3dB) 60-600,000 CPM 1,0-10000 Hz
Dynamic Range ± 100 g, peak
*Vsource ≥ 22V, 12Vbias
Electrical
Settling Time 5 Seconds
Voltage Source 18-30 VDC
Constant Current Excitation 2-10 mA
Spectral Noise @ 10 Hz 8 µg/√Hz
Spectral Noise @ 100 Hz 2.5 µg/√Hz
Spectral Noise @ 1000 Hz 1.7 µg/√Hz
Broadband Noise Floor
(10 to 15k Hz)
<100 ohm
Output Impedance <100 ohm
Bias Output Voltage 10-14 VDC
Case Isolation >108 ohm
Specifications Standard Metric
Environmental
Operating Temperature Range -58 to 250 °F -50 to 121 °C
Maximum Shock Protection 5,000 g, peak
Electromagnetic Sensitivity CE
Sealing Welded, Hermetic
Submersible Depth 200 ft. 60 m
SIL Rating SIL 2
Physical
Sensing Element PZT Ceramic
Sensing Structure Shear Mode
Weight 5.1 oz 145 grams
Case Material 316L Stainless Steel
Connector (Non-Integral) 2 Pin MIL-C-5015
Resonant Frequency 1,260,000 CPM 21000 Hz
Mounting Torque 2 to 5 ft. lbs. 2,7 to 6,8 Nm
Mounting Hardware Supplied 1/4-28 Captive Bolt M6x1 Captive Bolt
Calibration Certificate CA10

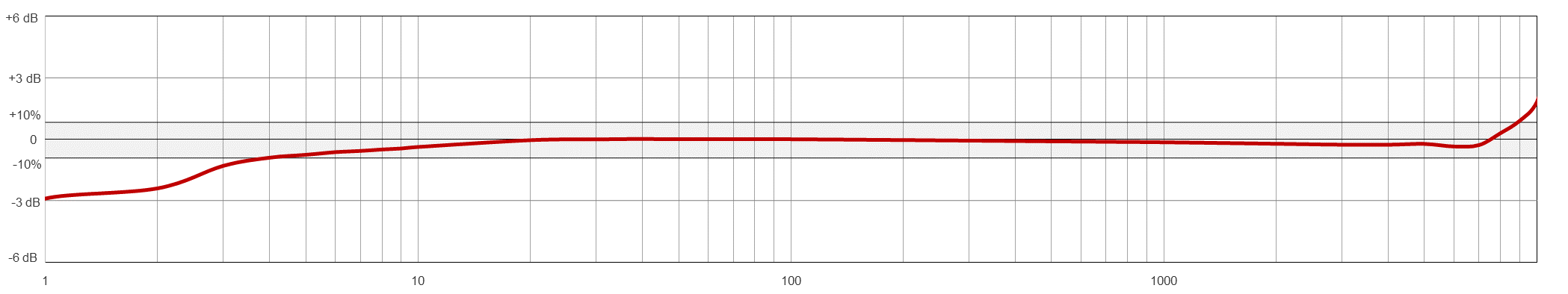

Typical Frequency Response

A line graph showing the frequency response of a CTC AC128 condition monitoring sensor.
