C49 Datasheet

A side view of a C49 data collector connector with a black thermoplastic shell with raised ridges on the side, with stainless steel connector, above a front view of the connector showing the 25 pins

Product Features

IP66 Rating

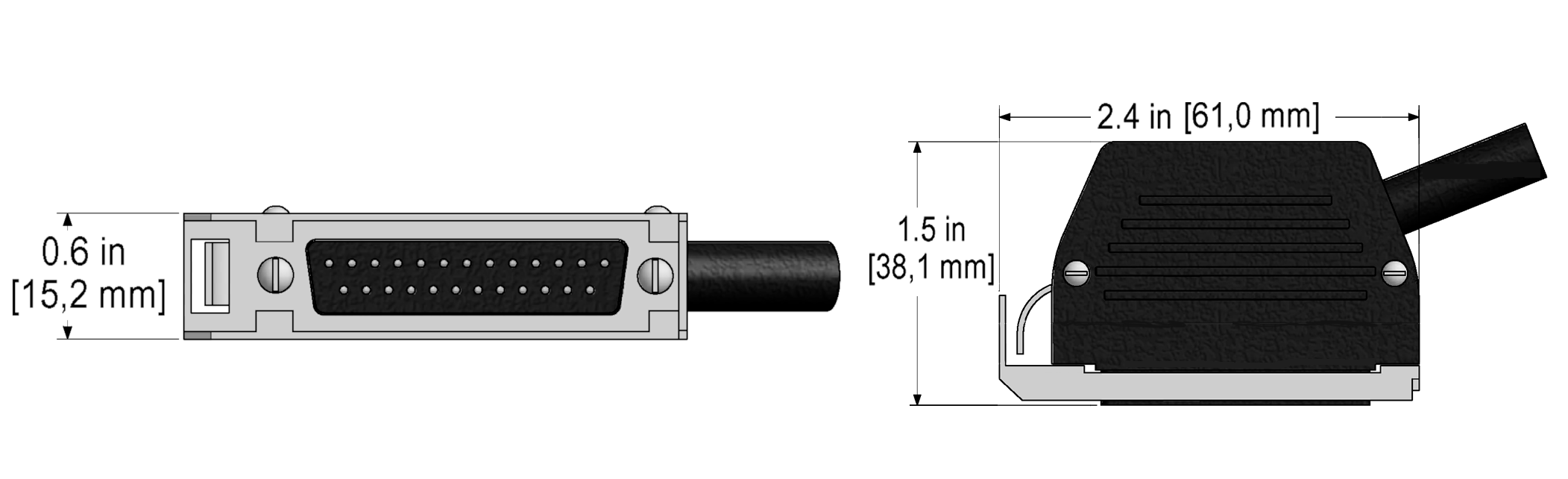

A line drawing showing the diameter and length of an assembled CTC C49 vibration sensor connector kit.

Specifications
Application	Portable Monitoring
Max Temperature	230 °F (110 °C)
Connector Type	25 Pin Subminiature
Connector Insert Material	Steel
Rating	IP66 Rated
Pin-Out	22 = Signal/Power (+) 23 = Common (-)

Built to Order
