C617 Series

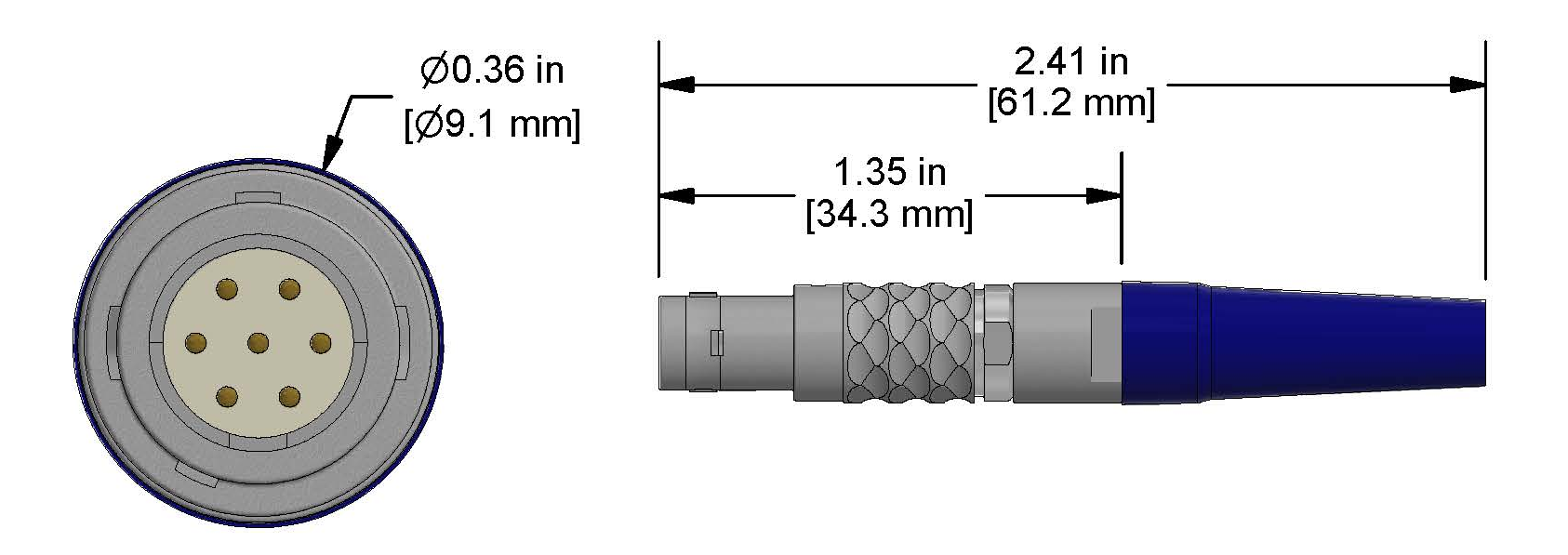

Pruftechnik VIBXpert II Compatible, 7 Pin LEMO® Connector for Current Line Drive Sensors , Pin 2 Jumped to Pin 3, Pin 7 Signal/Power (+)
Product Features
- 7 Pin LEMO Connector for Single Channel Input,
- Pin 2 Jumped to Pin 3
- Compatible Connectors: C79, F, E
| Specifications | |
|---|---|
| Application | Portable Monitoring |
| Max Temperature | 248 °F (120 °C) |
| Connector Type | 7 Pin LEMO® Connector |
| Strain Relief | Silicone |
| Shell Material | Aluminum |
| Connector Insert Material | PEEK |
| Rating | IP66 |
| Pin-Out | Pin 2 Jumped to Pin 3 Pin 7 Signal/Power (+) |
