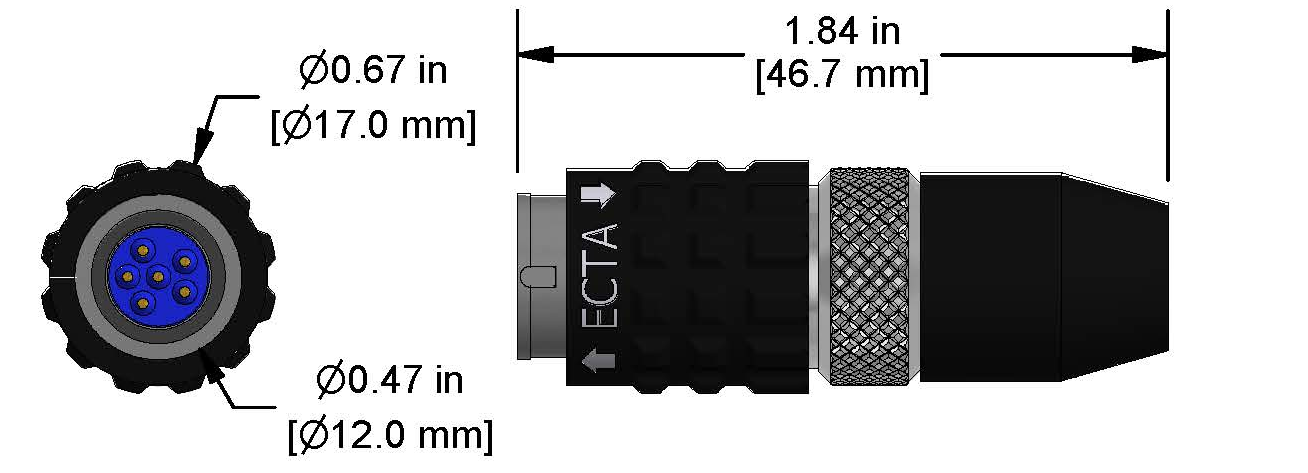

C628 Series
ACOEM Falcon Compatible, 6 Pin Connector, Triaxial Acceleration Input, Pin 2 Common (-), Pin 3 (Z Axis), Pin 4 (X Axis), Pin 5 (Y Axis)
Product Features
ECTA Triaxial Connector for use with Acoem Falcon Data Collectors
Case Grounded
| Specifications | |
|---|---|
| Application | Portable Monitoring |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 6 Pin |
| Shell Material | Delrin |
| Connector Insert Material | Aluminum |
| Rating | IP66 |
| Pin-Out | Pin 2: Common (-) Pin 3: Z Axis Pin 4: X Axis Pin 5: Y Axis |
