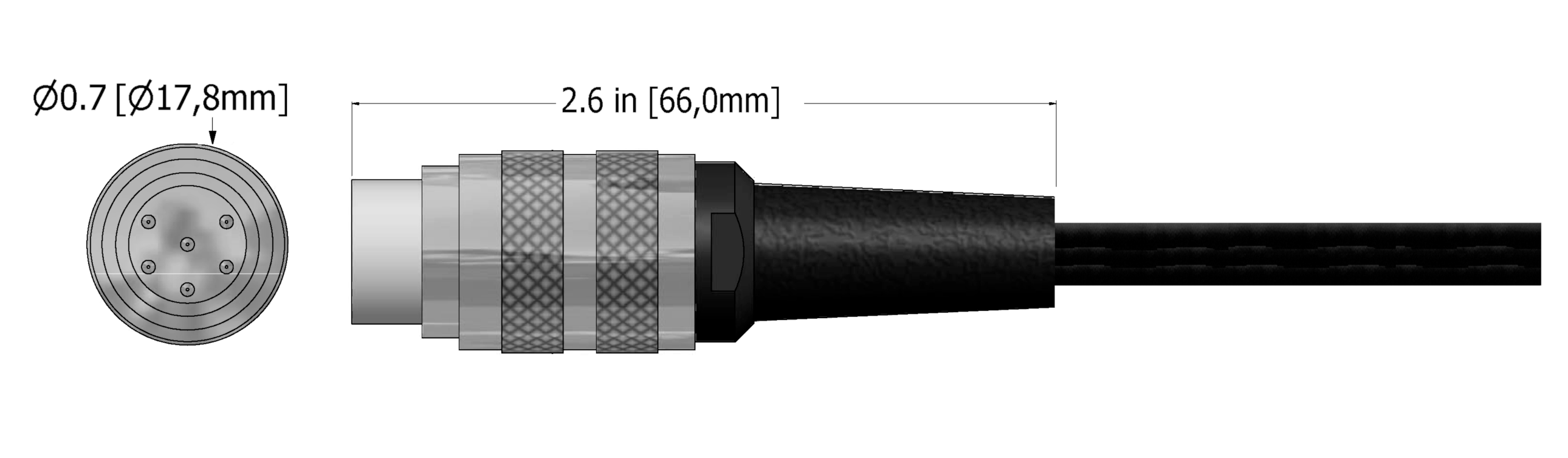

C91 Series
Vibrotest Compatible, 6 Pin Connectorm Single Channel Acceleration Input, Pin 1 (Z Axis), Pin 2 Common (-), Pin 3 (X Axis), Pin 4 Shield/Drain, Pin 5 (Y Axis)
Product Features
- 6 Pin Connector for Single Channel Acceleration Input
- Compatible Connectors: C79, E, F, Z
| Specifications | |
|---|---|
| Application | Portable Monitoring |
| Max Temperature | 185 °F (85 °C) |
| Connector Type | 6 Pin Amphenol |
| Shell Material | Nickel Plated Die Cast |
| Rating | IP66 Rated |
| Pin-Out | Pin 2: Signal/Power (+) Pin 4: Common (-) |
