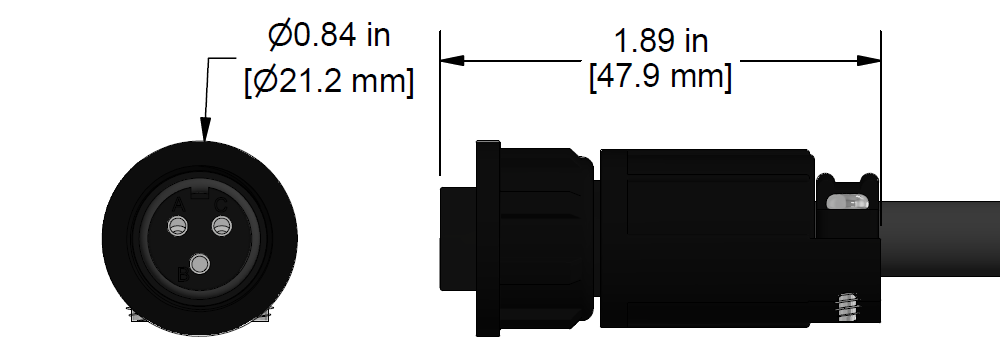

CK-C3X Series
3 Socket MIL-Style Connector Kit with Polycarbonate Insert and Thermoplastic Backshell, 250 °F (121 °C) Maximum Temperature
Product Features
- 3 Socket Connection, Crimp Contacts
- Epoxy Kit (MH109-3D) and Crimp Tool (CB926-1A) Sold Separately
| Specifications | |
|---|---|
| Application | Permanent Mount |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 3 Socket MIL |
| Shell Material | Thermoplastic |
| Connector Insert Material | Polycarbonate |
| Pin-Out | Pin 1: Signal (+) Pin 2: Signal (+) Pin 3: Common (-) |
