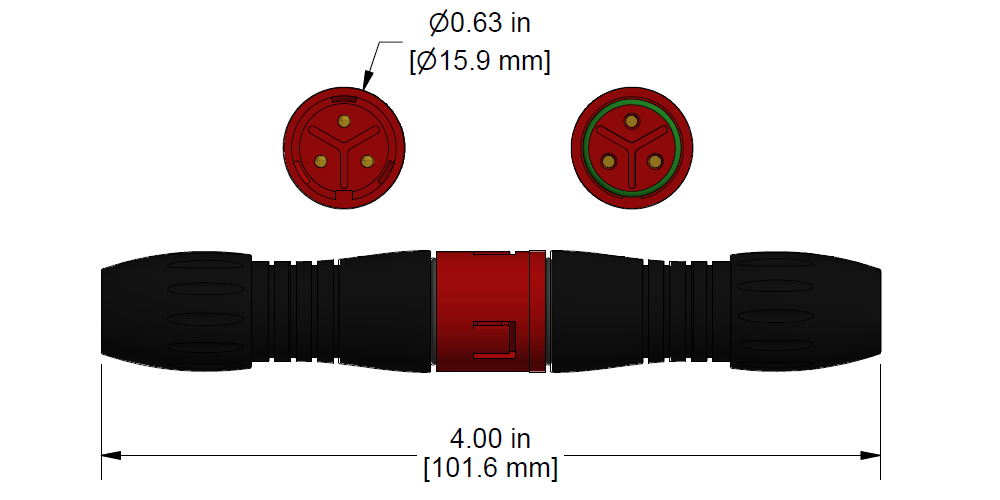

CK-SF Series
Field Installable Safety Feature Connector Kit, for use with 2 Conductor Cables, 250 °F (121 °C) Max Temp
Product Features
Field Installable Safety feature connector kit
For use with 2 conductor cables
| Specifications | |
|---|---|
| Application | Portable Monitoring |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | Safety Feature |
| Shell Material | Nylon |
| Rating | UL94 V-0 |
| Pin-Out | Pin 1: Signal (+) Pin 2: Common (-) Pin 3: Shield |
