DC100730 with Armor

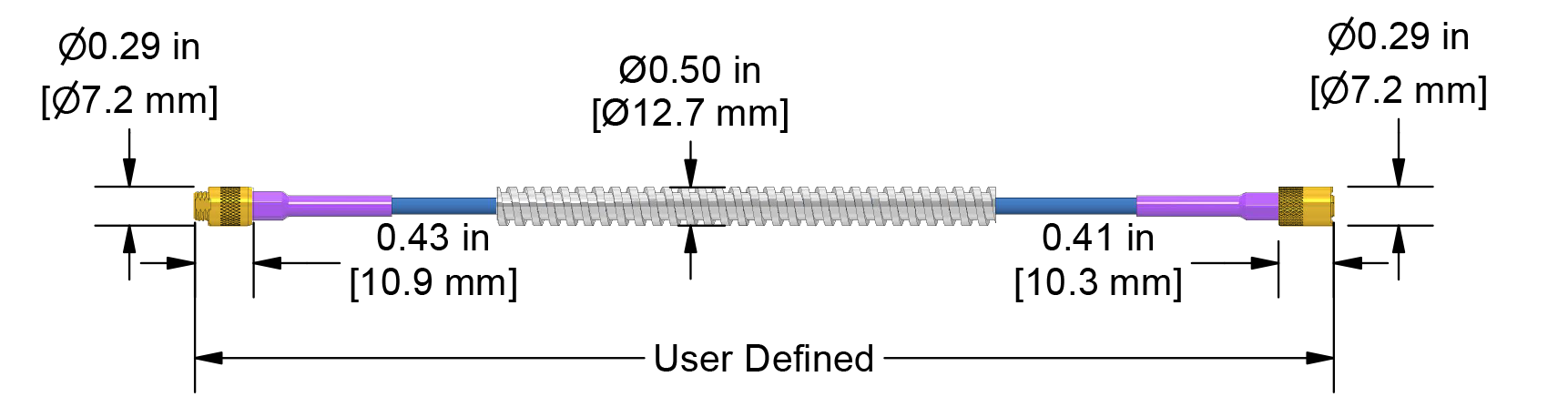

Proximity Probe Extension Cable for 11 mm PRO Proximity Probes, with Armor Jacket
PRO DC100730 extension cables combine with PRO DP1007 series probes and PRO DD1007 series drivers to form a complete assembly to monitor vibration and shaft position
- Excellent chemical resistance
- Upgraded to include SecureLock Connector
- Optional Connector Protectors to cover connections to avoid grounding issues if exposed to metal
Lengths AA, BB, and CC are configurable
|
Temperature Range
|
-49 to 340 °F (-45 to 171 °C) |
|
Material
|
316L Stainless Steel Armor Jacket |
|
Rating
|
IP60 Rated Connection between Prox Probe & Extension Cable Connectors |
|
Connector
|
SecureLock |
|
Connector Pull Strength
|
Up to 30 lbs. |
|
System Length
|
Matched to 5 & 9 meter system lengths |
|
Bending Radius
|
1.16 in. (2.95 cm) |
