DP1009 Datasheet

CE Certified

A render of a PRO Line DP1009 FFv™ 5 mm proximity probe with blue FEP jacketing and optional connector protector.

Product Features

Measure shaft vibration and displacement on machinery with fluid film bearings

Durable PPS over-molded probe tips withstand harsh conditions when monitoring critical machinery such as turbines and compressors

5 mm probe tip diameter with 1/4-28, 3/8-24, M8x1 or M10x1 threaded body
Probe tip and body sealed to prevent leaking through cable
Upgraded to include SecureLock connector

DP100901

Standard Mount

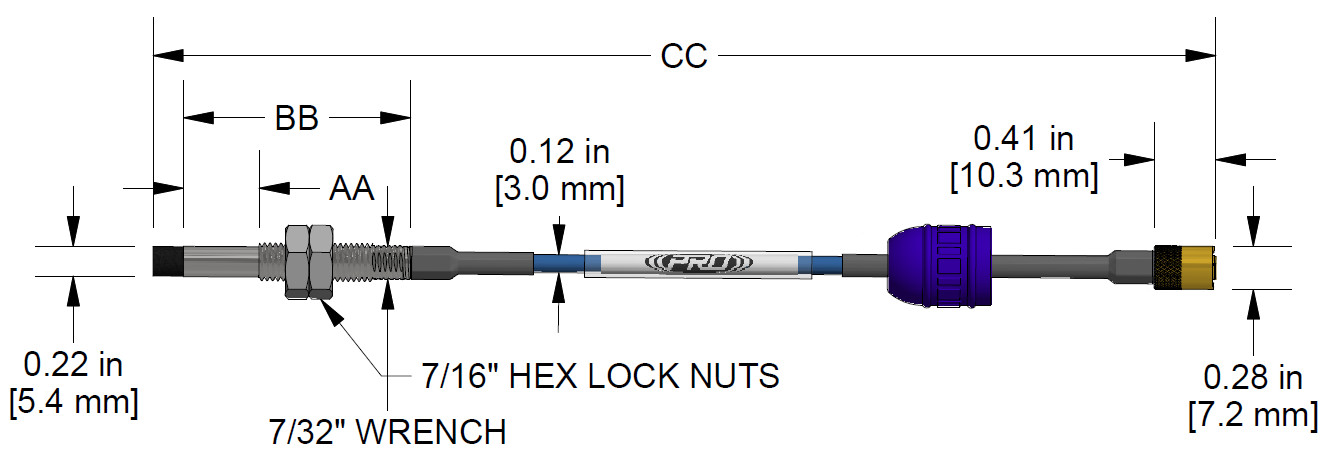

A dimension drawing of a Standard Mount CTC PRO Line DP1009 proximity probe.

DP100903

Standard Mount

A dimension drawing of a Standard Mount CTC PRO Line DP1009 proximity probe.

DP100906

Reverse Mount

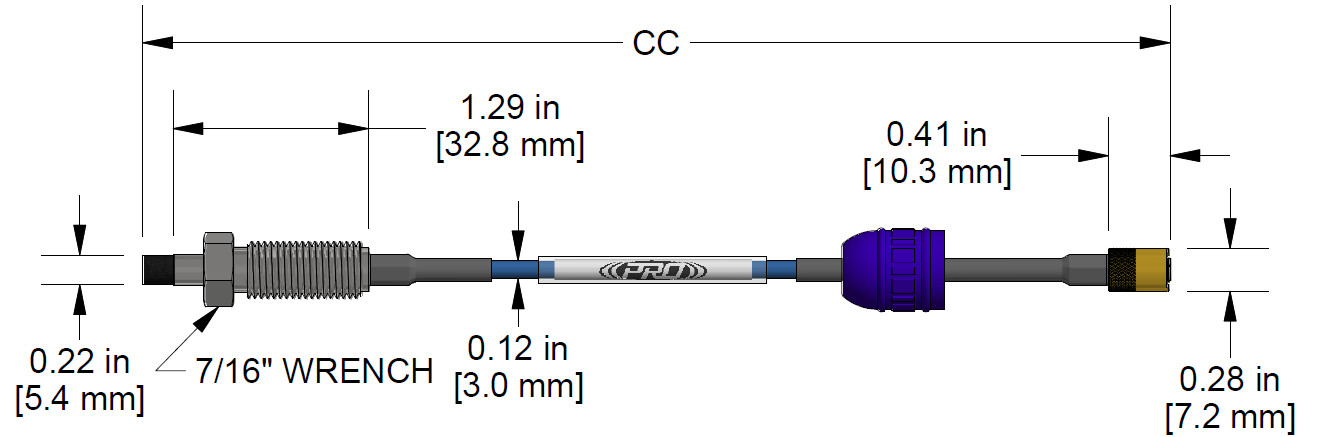

A dimension drawing of a Reverse Mount CTC PRO Line DP1009 proximity probe.

DP100907

Reverse Mount

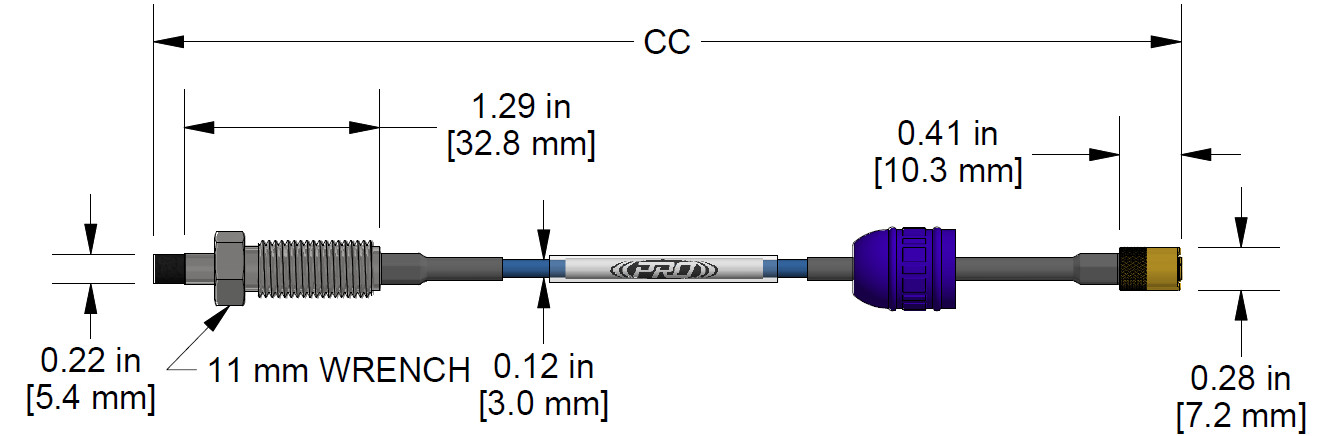

A dimension drawing of a Reverse Mount CTC PRO Line DP1009 proximity probe.

DP100911

Reverse Mount

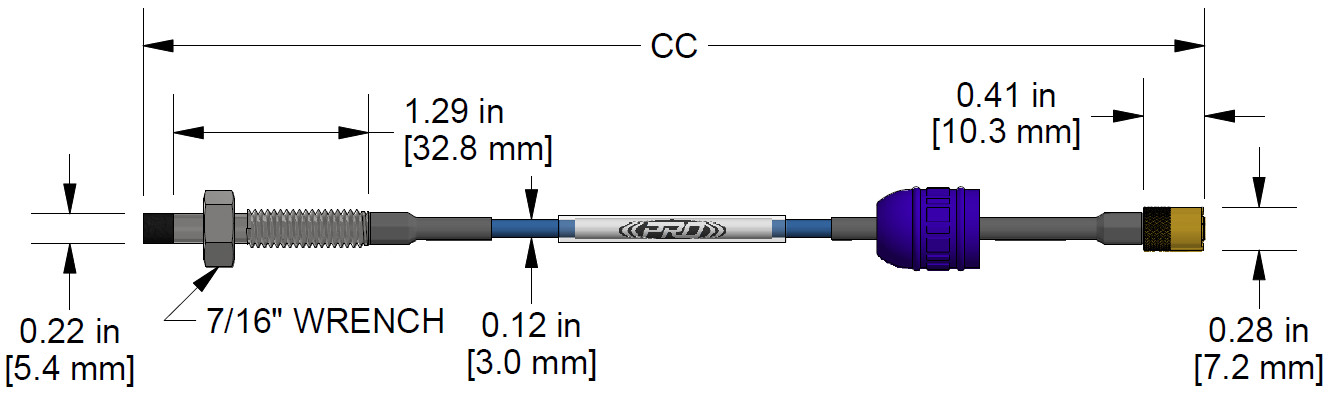

A dimension drawing of a Reverse Mount CTC PRO Line DP1009 proximity probe.

DP100912

Reverse Mount

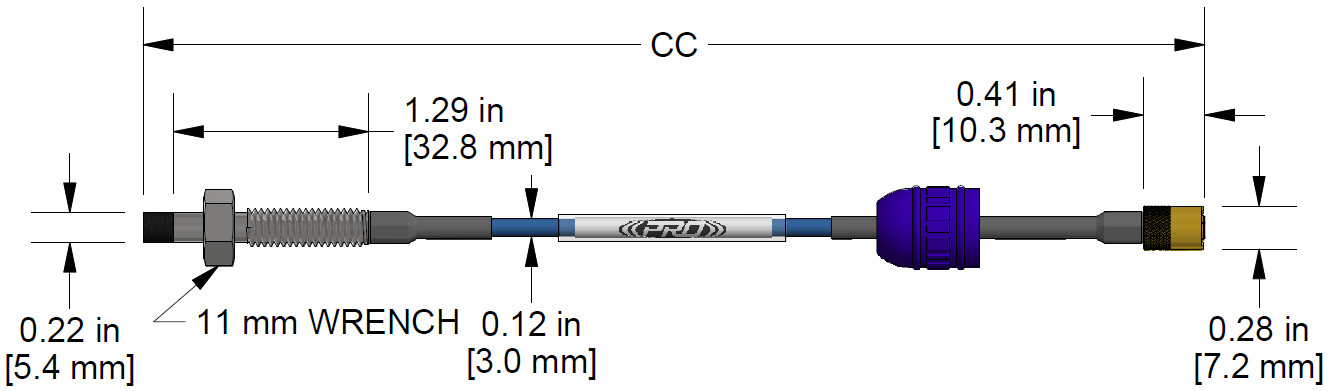

A dimension drawing of a Reverse Mount CTC PRO Line DP1009 proximity probe.

Lengths AA, BB, and CC are configurable

Specifications
Temperature Range	-49 to 250 °F (-45 to 121 °C)
Sensitivity	-200 mV/mil (-7.87 V/mm) (1 mil = 0.001 in.)
Material	FEP Cable Jacket with 316L Stainless Steel Probe Body
Case Thread	1/4-28 or M8x1 (Standard Mount), 3/8-24 or M10x1 (Reverse Mount)
Wrench Flats	7/32 in. or 7 mm (Standard Mount), 7/16 in. or 11 mm (Reverse Mount)
Rating	IP68
Connector	SecureLock
Connector Pull Strength	Up to 30 lbs.
Bending Radius	1.16 in. (2.95 cm)

Built to Order
