DSB2000
Dual Input & Output Modular Vibration Switch Box, Stainless Steel Enclosure, NEMA 4X (IP66) Rated, Includes DSB-MOD(X) 1 to 8 Dual Output Sensor Input Switch Module
Product Features
Enclosure with DIN Rail Mountable Modules for Multiple Dual Inputs and Switched Outputs
Internally earth grounded for noise reduction
- Provides a switched output from up to 8 remotely installed dual output sensors to a data collector through two BNCs, or 3 Pin MIL spec connector
- Modules feature external BNC and 2 or 3 Pin connection options to suit your preferred data collector
- Modular design provides flexible upgrade option
| Specifications | |
|---|---|
| Temperature Range | -72 to 180 ° (-58 to 82 °C) |
| Enclosure Material | Stainless Steel |
| Inputs | Terminal Block, 4 Inputs per Channel (A,B,C,GND) |
| Outputs | 2 BNC Jacks and 3 Pin MIL |
| Continuous Output | Optional Multi-Pin Connector for Interface with Online Systems (Requires JB931-3A) |
| Sensor Input Options | 4, 6, 8 |
| Rating | NEMA 4X (IP66) |
| Door Closure | Twist Lock |
| Dimensions | 6.66 x 9.50 x 6.31 in. (169 x 241 x 160 mm) |
| Resistance | Resistant to Hose Directed Fluid and Corrosion |

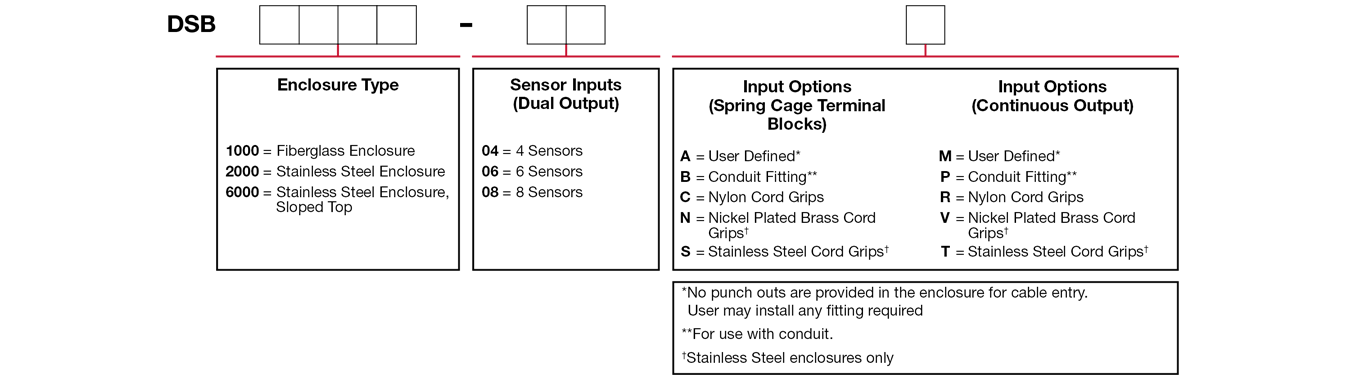

Ordering Information
