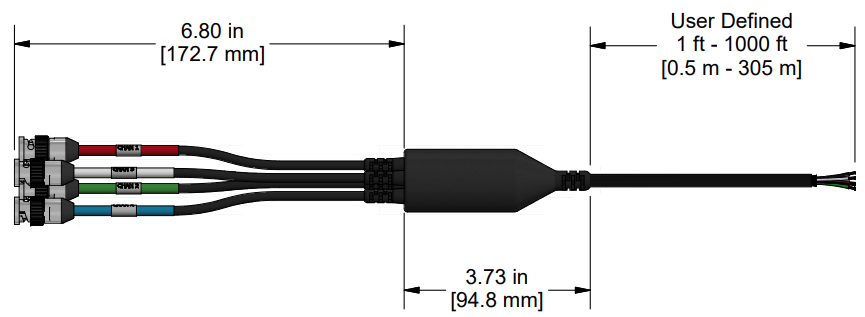

F4D Series
4 Channel BNC Plug Connector, Polyurethane Molded, 250 °F (121 °C) Max Temp
Product Features
4 BNC Plugs to 1 Multi-Conductor Cable
Polyurethane Molded
- Labelled CHAN 1 (Red), CHAN 2 (Green), CHAN 3 (White), CHAN 4 (Blue)
- 250 °F (121 °C) Max Temp
- IP66 Rated
| Specifications | |
|---|---|
| Application | Portable and Permanent Measurements |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | BNC Plug |
| Strain Relief | Polyurethane |
| Shell Material | Brass Shell |
| Connector Insert Material | Beryllium Copper |
| Rating | IP66 |
| Pin-Out | Pin = Signal (+) Case = Common (-) |
