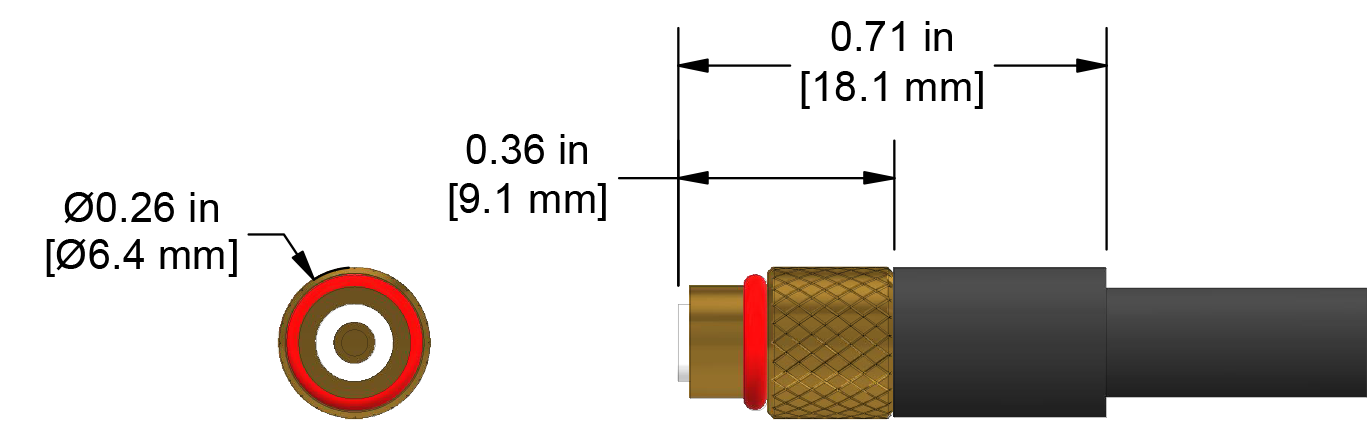

FD10 Series
10-32 Jack Connector for Coaxial Cable
Product Features
- For inline extension cables connecting to 10-32 Plug Connectors
- Coaxial Cable Connector
- 200°C Max Temperature
| Specifications | |
|---|---|
| Temperature Range | -80 to 350 °F (-60 to 277 °C) |
| Connector Type | 10-32 Jack (Socket) Connector |
| Strain Relief | Silicone Molded Boot |
| Max Coupling Torque | 8 in-lbs |
| Shell Material | Gold Plated Brass |
| Pin Contact Material | Gold Plated Brass |
| Pin-Out | Center Socket = Signal (+) Shell = Common (-) |
