Hazardous-Area Approved DP1001
Intrinsically Safe 8 mm PRO Proximity Probes
Continuous Monitoring in Hazardous Locations
Measures shaft vibration and displacement on machinery with fluid film bearings
- Probe tip and body sealed to prevent leaking through cable
- Upgraded to include SecureLock connector
- For use with PRO Line Proximity Drivers only

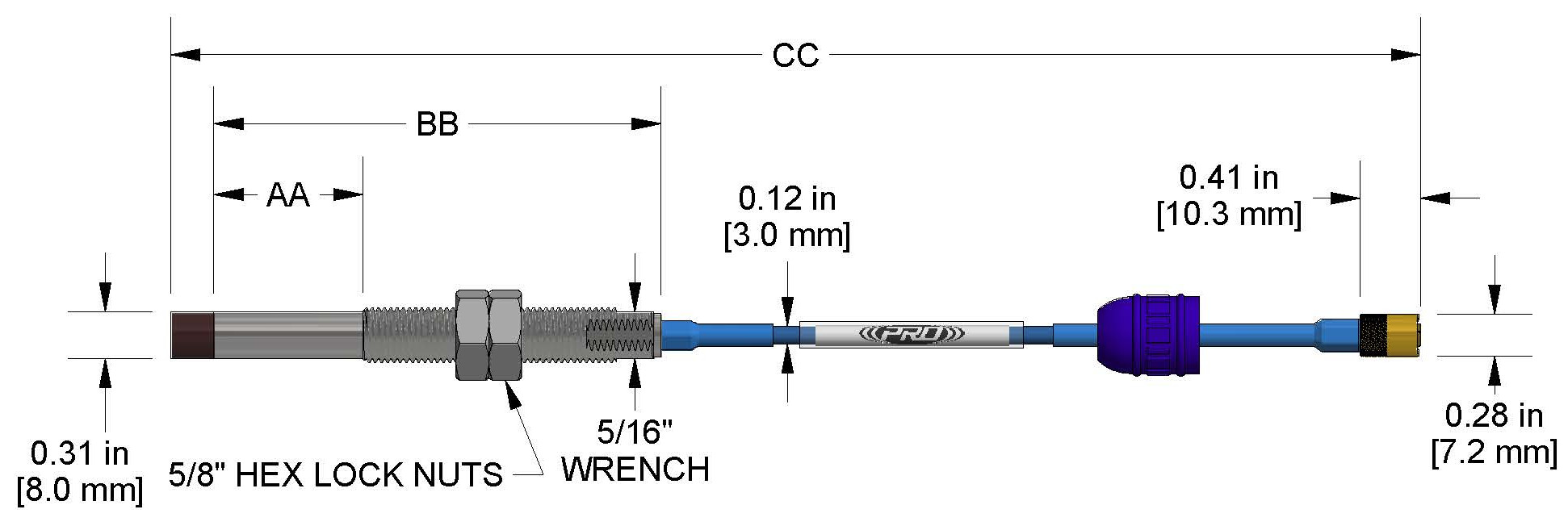

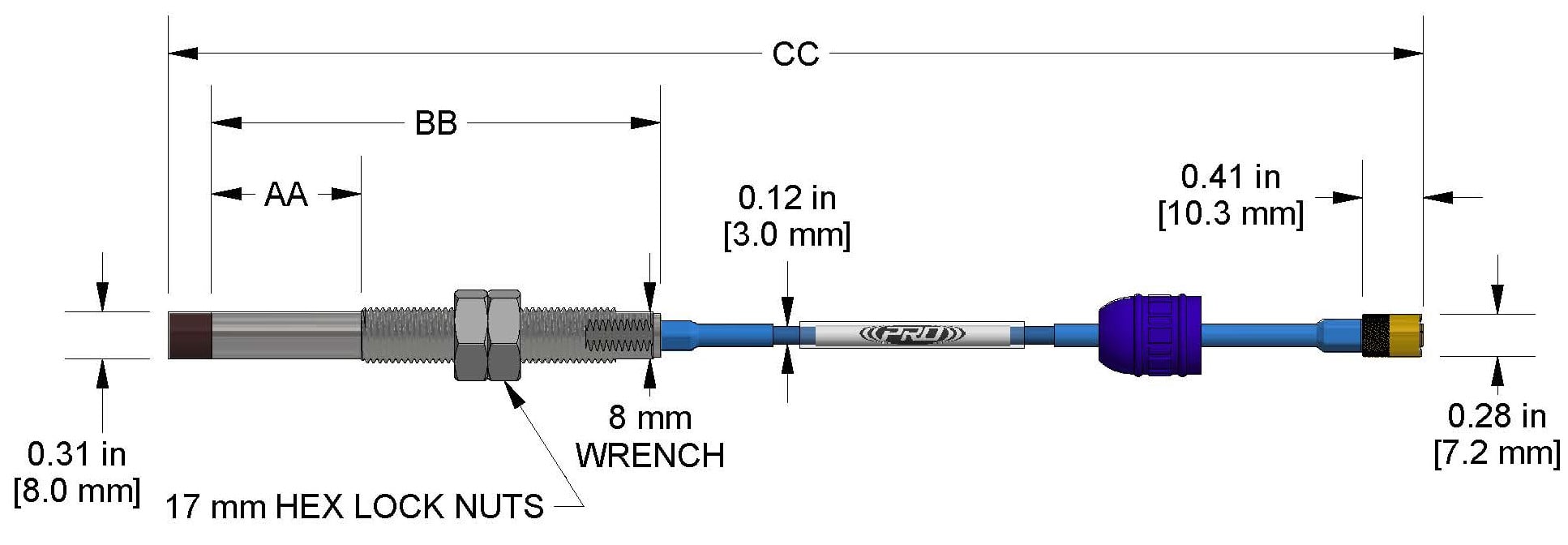

Lengths AA, BB, and CC are configurable
|
Temperature Range
|
-49 to 350 °F (-45 to 177 °C) |
|
Sensitivity
|
-200 mV/mil (-7.87 V/mm) (1 mil = 0.001 in.) |
|
Material
|
FEP Cable Jacket with 316L Stainless Steel Probe Body |
|
Case Thread
|
3/8-24 or M10x1 |
|
Wrench Flats
|

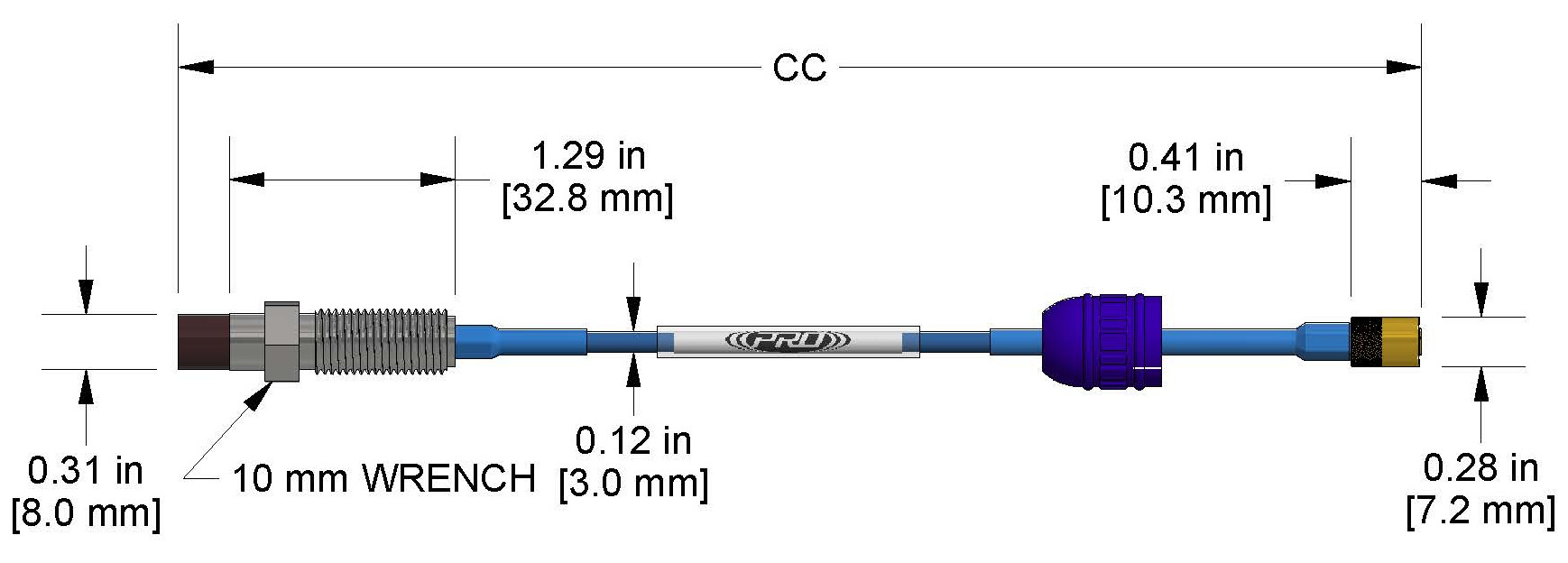

5/16 in. or 8 mm (Standard Mount), 7/16 in. or 10 mm (Reverse Mount) |
|
Rating
|
IP68 |
|
Connector
|
SecureLock |
|
Connector Pull Strength
|
Up to 30 lbs. |
US & Canada:
Class I Division 1 Groups A, B, C, D
Class II Division 1 Groups E, F, G
Class III
Class I Zone 0 AEx ia IIC
Class I Division 2 Groups A, B, C, D
Class II Division 2 Groups E, F, G
Ex ia IIC Ga
ATEX:
SIRA 16ATEX2084X
Ex ia IIC
International (IECEx):
IECEx CSA 16.0017X
Ex ia IIC
Temperature Codes:
T4 = -45°C to 100°C
T5 = -35°C to 85°C
