Hazardous-Area Approved DP1009

Intrinsically Safe FFv™ Proximity Probe, 5 mm Probe Tip Diameter, with 1/4-28, 3/8-24, M8x1, or M10x1 Case Thread
DP100901
Standard Mount

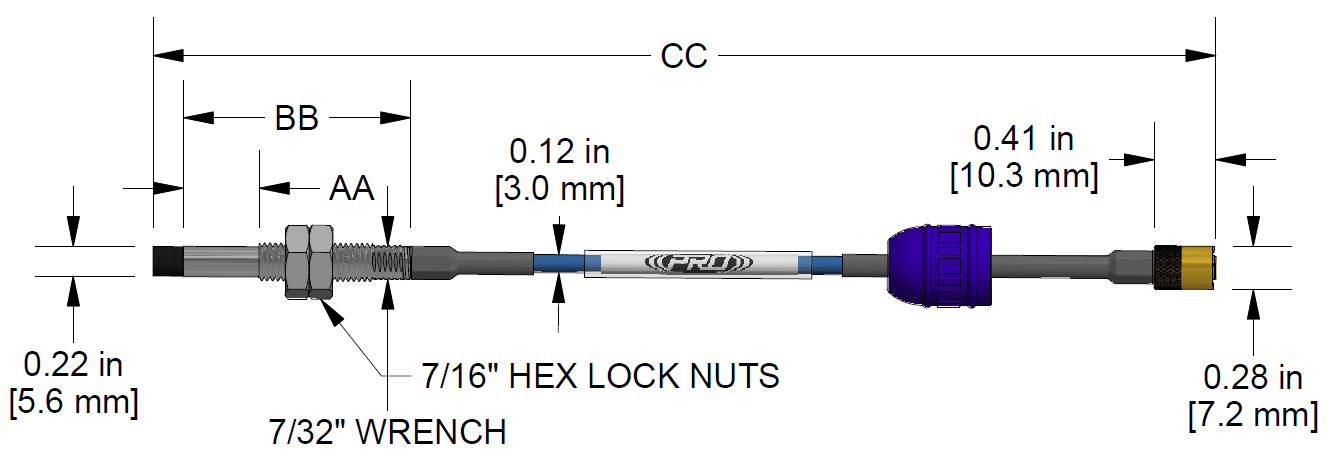

A dimension drawing of a Standard Mount CTC PRO Line Hazardous-Area Approved DP1009 proximity probe.
DP100903
Standard Mount
A dimension drawing of a Standard Mount CTC PRO Line Hazardous-Area Approved DP1009 proximity probe.
DP100906
Reverse Mount
A dimension drawing of a Reverse Mount CTC PRO Line Hazardous-Area Approved DP1009 proximity probe.
DP100907
Reverse Mount
A dimension drawing of a Reverse Mount CTC PRO Line Hazardous-Area Approved DP1009 proximity probe.
Lengths AA, BB, and CC are configurable
Specifications
Temperature Range -49 to 340 deg;F (-45 to 171 °C)
Sensitivity -200 mV/mil (-7.87 V/mm) (1 mil = 0.001 in.)
Material FEP Cable Jacket with 316L Stainless Steel Probe Body
Case Thread 1/4-28 or M8x1 (Standard Mount), 3/8-24 or M10x1 (Reverse Mount)
Wrench Flats 7/32 in. or 7 mm (Standard Mount), 7/16 in. or 11 mm (Reverse Mount)
Rating IP68
Connector SecureLock
Connector Pull Strength Up to 30 lbs.
Bending Radius 1.16 in. (2.95 cm)
Built to Order

Regulatory Approvals

US & Canada:
Class I Division 1 Groups A, B, C, D
Class II Division 1 Groups E, F, G
Class III
Class I Zone 0 AEx ia IIC
Class I Division 2 Groups A, B, C, D
Class II Division 2 Groups E, F, G
Ex ia IIC Ga
ATEX:
SIRA 16ATEX2084X
Ex ia IIC
International (IECEx):
IECEx CSA 16.0017X
Ex ia IIC
Temperature Codes:
T4 = -45°C to 100°C
T5 = -35°C to 85°C
IECEX Certified CSA Certified ATEX Certified CE Certified UKCA Certified ETL Certified
FOR REFERENCE ONLY, PLEASE REFER TO CONTROL DRAWING
