J2Q Series

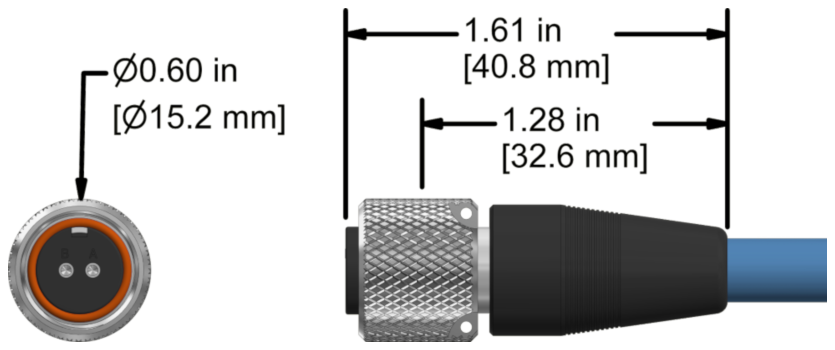

2 Socket Mini-MIL Connector, Polycarbonate with Grounded Locking Ring for Class 1, Division 2 Locations
Product Features
Grounded Locking Ring for Class 1, Division 2 Installations
- 2 Socket Mini-MIL Connection for use with CTC Miniature Size Accelerometers
- Designed to Withstand a Wide Variety of Industrial Applications
- 316L Stainless Steel Locking Ring for Added Durability & Corrosion Resistance
| Specifications | |
|---|---|
| Application | Permanent Mount |
| Max Temperature | 250° F (121° C) |
| Connector Type | 2 Socket Mini-MIL |
| Shell Material | Polycarbonate |
| Connector Insert Material | Polycarbonate |
| Rating | IP66 |
| Pin-Out | A = Signal (+) B = Common (-) |
