K3CG Series

3 Socket MIL-Style Connector with Grounded Backshell and Rubber Bending Strain Relief, Polyurethane Molded, Portable or Permanent Measurements, 250 °F (121 °C) Max Temp

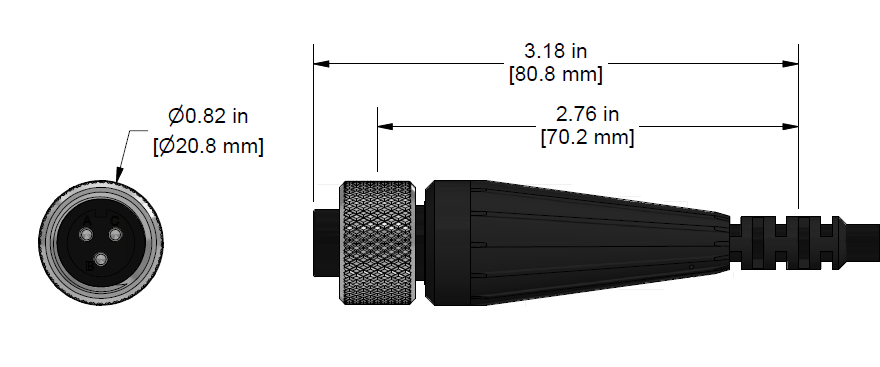

A line drawing showing the diameter and length of an assembled CTC K3CG vibration sensor connector kit.
Specifications
Application Portable or Permanent Measurements
Max Temperature 250 °F (121 °C)
Connector Type 3 Socket MIL-Style
Strain Relief Rubber Bending Strain Relief
Shell Material Polyurethane
Connector Insert Material Polyurethane
Rating IP68
Pin-Out A = Signal (+)
B = Common (-)
C = Signal (+)
Built to Order
