LP284 Datasheet

CE Certification

Product Features

4-20 mA Current Proportional to Vibration in Velocity

Transmit Signals Over Long Distances with No Signal Loss
Outputs to PLC, DCS, SCADA

LP284-XXX-1E

2 Pin Connector

Connector Pin	Polarity
A	(+) Loop Power mA Output
B	(-) Common

A drawing showing the dimensions and pin configuration of a CTC LP284 4-20 mA loop power sensor with standard connector.

Built To Order

LP284-XXX-2E

CB103 Integral Cable

Conductor	Polarity
Red	(+) Loop Power mA Output
Black	(-) Common
Shield	Cable Drain Wire

A drawing showing the dimensions and pin configuration of a CTC LP284 4-20 mA loop power sensor with integral cable.

Built To Order

LP284-XXX-3E

CB206 Armored Integral Cable

Conductor	Polarity
Red	(+) Loop Power mA Output
Black	(-) Common
Shield	Cable Drain Wire

A drawing showing the dimensions and pin configuration of a CTC LP284 4-20 mA loop power sensor with armored integral cable.

Built To Order

Specifications	Standard		Metric
Part Number	LP284
Tolerance: 4 mA		(± 10%)
Tolerance: 20 mA		(± 10%)
Electrical
Settling Time		<30 Seconds
Voltage Source		15-30 VDC
Case Isolation		>10⁸ ohm
Environmental
Operating Temperature Range	-4 to 212°F		-20 to 100°C
Electromagnetic Sensitivity		CE
Sealing		Welded, Hermetic
Submersible Depth	200 ft.		60 m

Specifications	Standard		Metric
Physical
Sensing Element		PZT Ceramic
Sensing Structure		Shear Mode
Weight	6.0 oz		170 grams
Case Material		316L Stainless Steel
Mounting Thread		M8x1.25 Captive Bolt
Connector (Non-Integral)		2 Pin MIL-C-5015
Mounting Torque	2 to 5 ft. lbs.		2,7 to 6,8 Nm
Mounting Hardware Supplied	M8x1.25 Captive Bolt
Calibration Certificate		Current Output @ 100 Hz

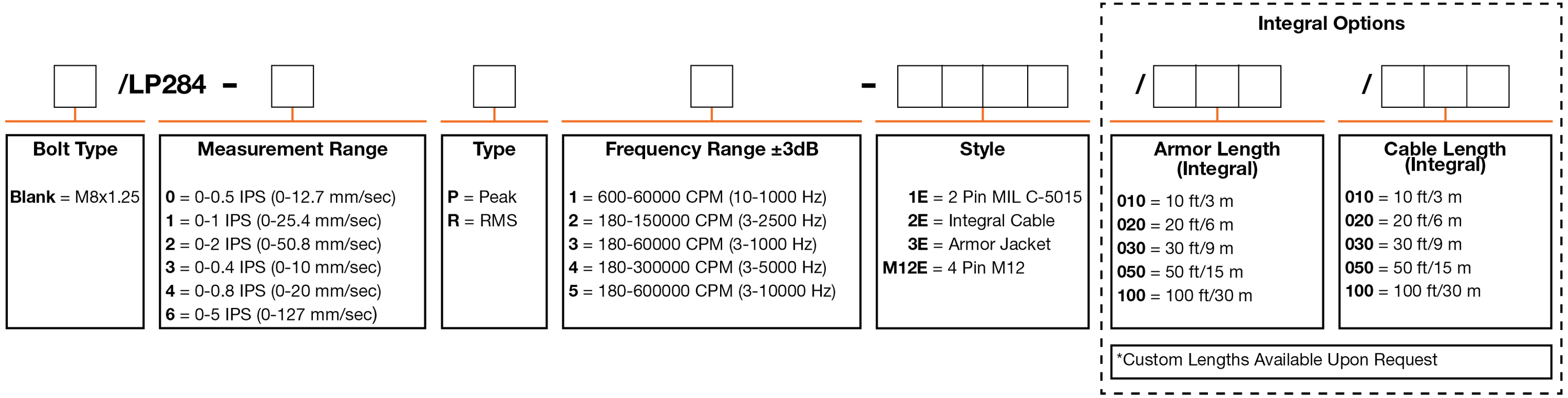

Ordering Information

A chart showing configuration options to create a complete part number for ordering a CTC LP284 4-20 mA loop power sensor.
