LP364 Series
Dual Output Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Acceleration with °C Temperature Output, Side Exit 3 Pin Connector
Product Features
4-20 mA Current Proportional to Vibration in Acceleration
- Peak and RMS Outputs Available
- Transmits Signals Over Long Distances with No Signal Loss
- Outputs to PLC, DCS, SCADA
LP364-XXX-1E
3 Pin Connector
| Connector Pin | Polarity |
| A | (+) Loop Power mA Output |
| B | (-) Common |
| C | (+) Temperature Voltage |
Built To Order
LP364-XXX-2E
CB105 Molded Integral Cable
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
| White | (+) Temperature Voltage |
| Shield | Cable Drain Wire |
Built To Order
LP364-XXX-3E
CB218 Armored Integral Cable
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
| White | (+) Temperature Voltage |
| Shield | Cable Drain Wire |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 4.9 oz | 140 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4-28 | ||
| Connector (Non-Integral) | 3 Pin MIL-C-5015 | ||
| Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm | |
| Mounting Hardware Supplied | 1/4-28 Captive Bolt | M6x1 Captive Bolt | |
| Calibration Certificate | Current Output @ 100 Hz |

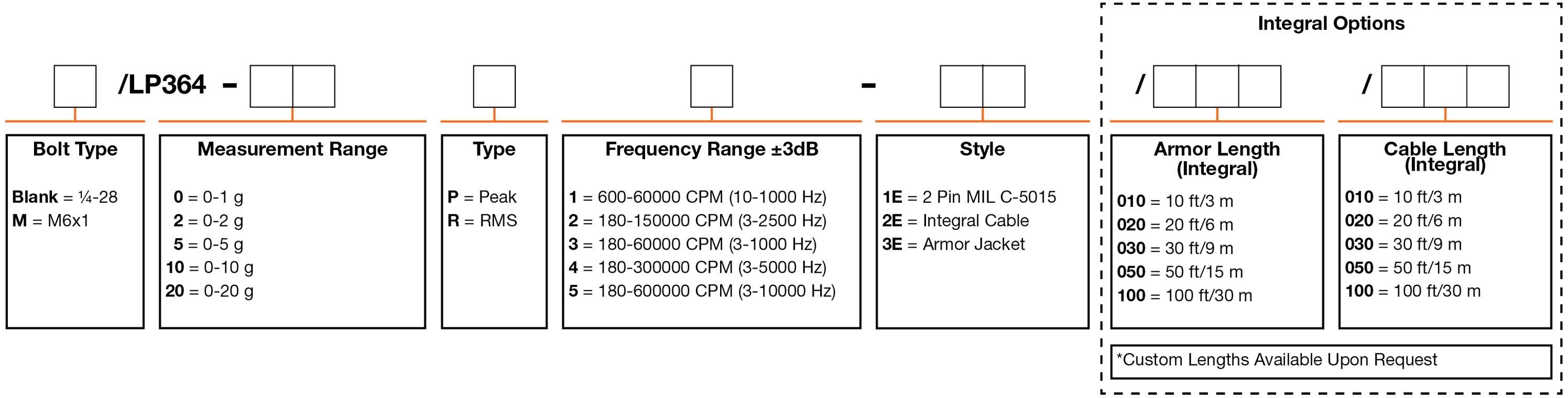

Ordering Information
