LP802-XXX-51C Series
Nonincendive, Intrinsically Safe, CSA North America Class 1, Division 1 and IECEx/ATEX Zone 0,1 Approved Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit with Flying Leads
Regulatory Information
CSA 221421
Ex ia IIC T4; Ex ia I Ma
Ex iaD A20 T105°C
DIP A20 IP6X T105°C
AEx ia IIC T4
AEx iaD 20 T105°C
CLI GPS A,B,C,D
CLII, GPS E,F,G; CLIII
CLI, Zone 0, Zone 20
Operating Temp Code: T4
Ambient Temp Range = -40°C TO +80°C
Control Drawing INS10012
Ex ia IIC T4 -40°C < Ta < +80°C
1600 ft (488 m) Maximum Allowable Integral Cable Length
Approved Cables: CB102, CB103, CB111, CB190, CB193, CB296
Requires one IS111-1B Intrinsic Safety Barrier
Ex ia IIC T4; Ex ia I Ma
Ex iaD A20 T105°C
DIP A20 IP6X T105°C
AEx ia IIC T4
AEx iaD 20 T105°C
CLI GPS A,B,C,D
CLII, GPS E,F,G; CLIII
CLI, Zone 0, Zone 20
Operating Temp Code: T4
Ambient Temp Range = -40°C TO +80°C
Control Drawing INS10012
Ex ia IIC T4 -40°C < Ta < +80°C
1600 ft (488 m) Maximum Allowable Integral Cable Length
Approved Cables: CB102, CB103, CB111, CB190, CB193, CB296
Requires one IS111-1B Intrinsic Safety Barrier
Sira 15ATEX2152X
IECEx SIR 15.0060X
Ex ia IIC T3/T4 Ga
Ex ib IIIC T135°C Db
Operating Temp Code: T135°C
Ambient Temp Range = -40°C to +80°C
Ex ia I Ma
Connector Exit Entity Parameters:
Ui = 28 Vdc, li = 120 mA, Pi = 1W, Ci = 0nF, Li = 0µH
Integral Cable Entity Parameters
Ui = 28 Vdc, li = 120 mA, Pi = 1W, Ci = 80.4nF, Li = 336µH
LP802-XXX-51C
1/4 inch NPT Mount
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 12 oz | 340 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4 NPT | ||
| Connector (Non-Integral) | Flying Leads | ||
| Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm | |
| Calibration Certificate | Current Output @ 100 Hz |

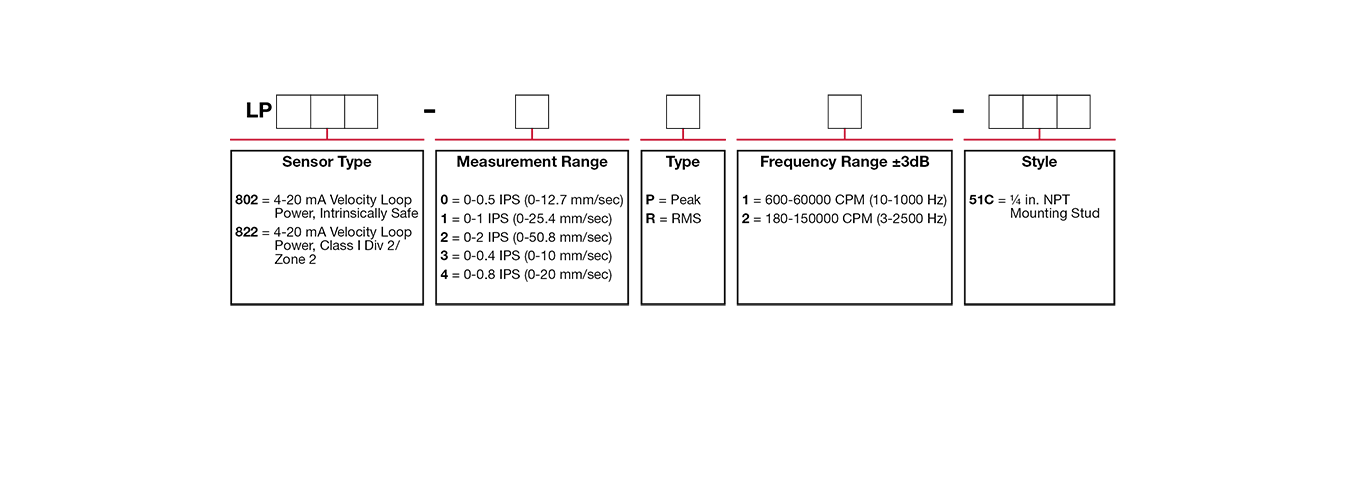

Ordering Information
