LPH902 Series
Nonincendive, Intrinsically Safe, CSA North America Class 1, Division 1 and IECEx/ATEX Zone 0,1 Approved Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Acceleration, Top Exit 2 Pin Connector
Regulatory Information
CSA 221421
CSA 26CA80263367X
CLI, DIV 1, GRP A, B, C and D
CLII, DIV 1, GRP E, F and G; CLIII
Ex ia IIC T3-T4 Ga
Ex ib IIIC T135°C...T147°C Db
CLI, ZN 0, AEx ia IIC T3-T4 Ga
ZN 21, AEx ib IIIC T135°C...T147°C Db
T3: Ta = –40°C to +121°C
T4: Ta = –40°C to +80°C
T147°C: Ta = – 40°C to +121°C
T135°C: Ta = – 40°C to +80°C
1600 ft (488 m) Maximum Allowable
Integral Cable Length
Approved Cabling: CB102, CB103*, CB111, CB190*, CB193*, CB296 (*Approved for Use in T4 Applications Only)
Requires one IS111-1B Intrinsic Safety Barrier
CSA 26CA80263367X
CLI, DIV 1, GRP A, B, C and D
CLII, DIV 1, GRP E, F and G; CLIII
Ex ia IIC T3-T4 Ga
Ex ib IIIC T135°C...T147°C Db
CLI, ZN 0, AEx ia IIC T3-T4 Ga
ZN 21, AEx ib IIIC T135°C...T147°C Db
T3: Ta = –40°C to +121°C
T4: Ta = –40°C to +80°C
T147°C: Ta = – 40°C to +121°C
T135°C: Ta = – 40°C to +80°C
1600 ft (488 m) Maximum Allowable
Integral Cable Length
Approved Cabling: CB102, CB103*, CB111, CB190*, CB193*, CB296 (*Approved for Use in T4 Applications Only)
Requires one IS111-1B Intrinsic Safety Barrier
Sira 15ATEX2152X
IECEx SIR 15.0060X
Ex ia IIC T3/T4 Ga
Ex ib IIIC T135°C...T147°C Db
Ex ia I Ma
T3: Ta = –40°C to +121°C
T4: Ta = –40°C to +80°C
Mining Group I: Ta @-40°C to +121°C
T147°C:-40°C to 121°C
T135°C: -40°C to +80°C
Connector Exit Entity Parameters:
Ui = 28 Vdc, li = 120 mA, Pi = 0.63W, Ci = 0nF, Li = 0µH
Integral Cable Entity Parameters
Ui = 28 Vdc, li = 120 mA, Pi = 0.63W, Ci = 80.4nF, Li = 336µH
LPH902-1A
2 Pin Connector
| Connector Pin | Polarity |
| A | (+) Loop Power |
| B | (-) Loop Power Return |
Built To Order
LPH902-2A
CB193 Integral Cable
| Conductor | Polarity |
| Red | (+) Loop Power |
| Black | (-) Loop Power Return |
| Shield | Cable Drain Wire |
Built To Order
LPH902-3A
CB296 Armored Integral Cable
| Conductor | Polarity |
| Red | (+) Loop Power |
| Black | (-) Loop Power Return |
| Shield | Cable Drain Wire |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 3.0 oz | 86 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4-28 Blind Tapped Hole | ||
| Connector (Non-Integral) | 2 Pin MIL-C-5015 | ||
| Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm | |
| Mounting Hardware Supplied | 1/4-28 Stud | M6x1 or M8x1.25 Adapter Stud | |
| Calibration Certificate | Current Output @ 100 Hz |

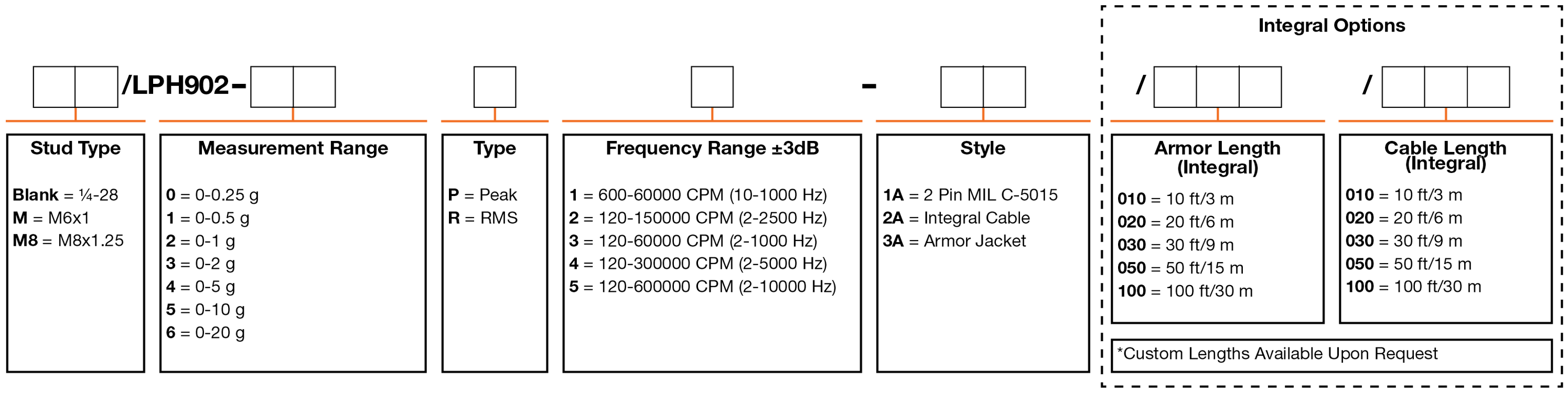

Ordering Information
