LPT302 Series
Loop Power Triaxial Sensor, 4-20 mA Output Proportional to Vibration in Acceleration, Side Exit 6 Pin Connector
Product Features
Continuously Monitor & Protect Important Machinery
- 4-20 mA current proportional to Vibration in Acceleration
- Transmit Signals Over Long Distances with No Signal Loss
- Customize Your Settings to Focus on the Most Important Frequencies
LPT302-XXX-1A
6 Pin Connector
| Connector Pin | Polarity |
| 1 (Axis Y) | (+) Loop Power |
| 2 (Axis X) | (+) Loop Power |
| 3 (Axis Z) | (+) Loop Power |
| 4 (Axis Y) | (-) Loop Power Return |
| 5 (Axis Z) | (-) Loop Power Return |
| 6 (Axis X) | (-) Loop Power Return |
Built To Order
LPT302-XXX-2A
CB123 Integral Cable
| Connector Pin | Polarity |
| Red (Axis Y) | (+) Loop Power |
| Green (Axis X) | (+) Loop Power |
| White (Axis Z) | (+) Loop Power |
| Black (Axis Y) | (-) Loop Power Return |
| Blue (Axis Z) | (-) Loop Power Return |
| Brown (Axis X) | (-) Loop Power Return |
Built To Order
LPT302-XXX-3A
CB629 Armored Integral Cable
| Connector Pin | Polarity |
| Red (Axis Y) | (+) Loop Power |
| Green (Axis X) | (+) Loop Power |
| White (Axis Z) | (+) Loop Power |
| Black (Axis Y) | (-) Loop Power Return |
| Blue (Axis Z) | (-) Loop Power Return |
| Brown (Axis X) | (-) Loop Power Return |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 13.4 oz | 380 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4-28 | ||
| Connector (Non-Integral) | 6 Pin Connector | ||
| Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm | |
| Mounting Hardware Supplied | 1/4-28 Captive Bolt | M6x1 Captive Bolt | |
| Calibration Certificate | Current Output @ 100 Hz |

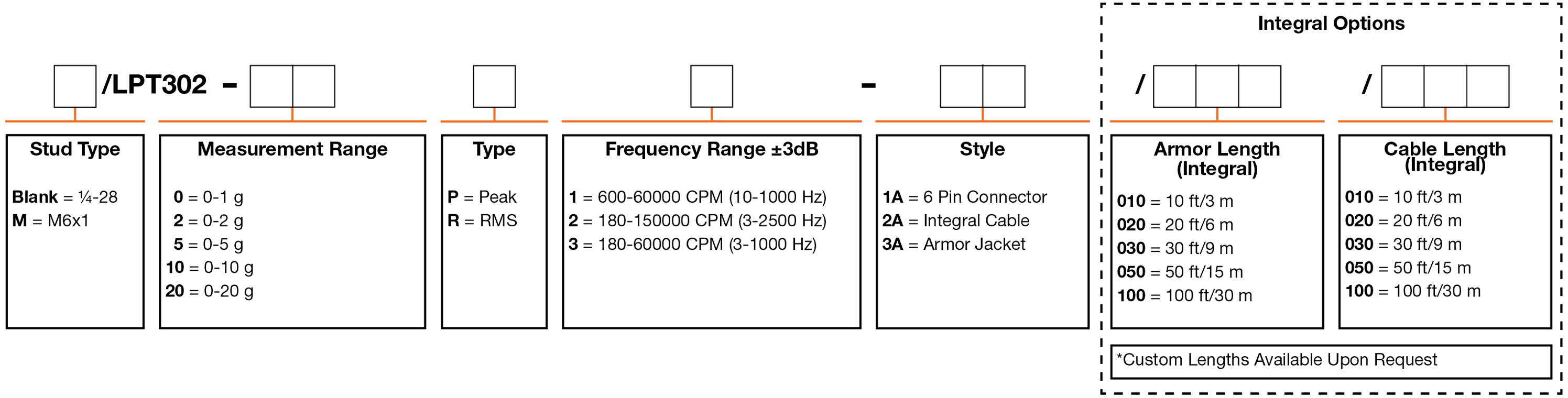

Ordering Information
