M4TA Series
4 Socket M12, Polycarbonate Molded Connector, Compatible with TA412-M12A and TA414-M12A, Permanent Mount, 250 °F (121 °C) Max Temp
Product Features
- 316L Stainless Steel Locking Ring
- IP66
| Specifications | |
|---|---|
| Application | Permanent Measurement |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 4 Socket M12 Connector |
| Shell Material | Polycarbonate Molded |
| Connector Insert Material | Polycarbonate |
| Rating | IP68 |

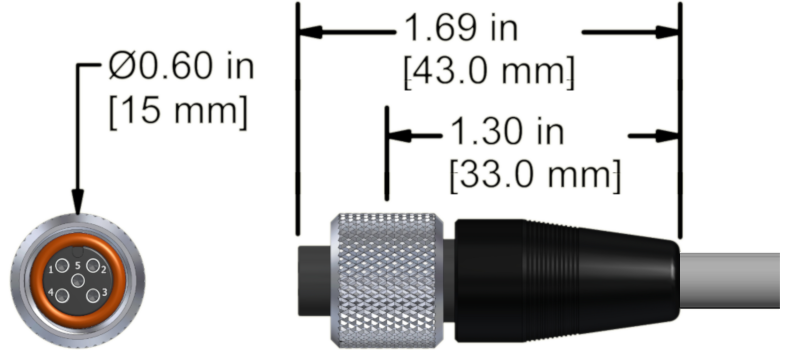

| Pin-Out | 1 = Ch. Y (+) 2 = Common (-) 3 = Ch. Z (+) 4 = Ch. X (+) |
