MH144-2A Datasheet

An MH144-2A stainless steel mounting block for three single-axis accelerometers, with an integral stud on the bottom of the cube and a threaded hole on the top and two sides of the cube.

Product Features

Low Cost
Allows attachment of 3 single axis accelerometers
Customizable positioning

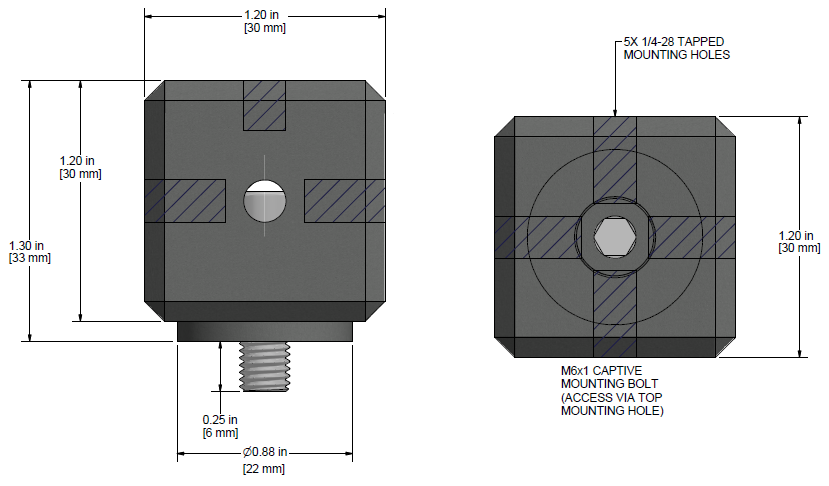

A drawing showing the dimensions of a CTC MH144-2A mounting hardware for industrial condition monitoring sensors.

Specifications
Case Material	17-4 Stainless Steel
Field Mounting	M6x1 Captive Bolt

Chemical Compatibilities for Reference

(Click Here for Full List)

Gasoline - A
Methanol - A
Lubricants – A

Compatibility

Compatible with all single axis, top exit accelerometers
Conversion mounting studs sold separately

Built to Order
