MMX2000
Single Axis Modular MAXX Box, Stainless Steel Enclosure, NEMA 4X (IP66) Rated, Includes up to 4 MMX-MOD3 Modular BNC Connection Modules for 3 to 12 Single Output Sensors
Product Features
Provides a safe, centralized data collection point
Internally earth grounded for noise reduction
- Connects up to 12 remotely installed sensors to portable data collectors, providing a safe data collection point for up to 12 measurement channels
- Buy the modules you need now, add more in the future
- Switch provided to tie common (-) signals for dual or triaxial sensors
| Specifications | |
|---|---|
| Temperature Range | -58 to 180 °F (-50 to 82 °C) |
| Enclosure Material | Stainless Steel |
| Inputs | Terminal Block 3 Inputs per Channel (±Shield) |
| Outputs | BNC Jack Per Channel |
| Sensor Input Options | 3 - 12 Channels |
| Rating | NEMA 4X (IP66) |
| Door Closure | Twist Lock |
| Dimensions | 6.66 x 9.50 x 6.31 in. (169 x 241 x 160 mm) |
| Resistance | Resistant to Hose Directed Fluid and Corrosion |

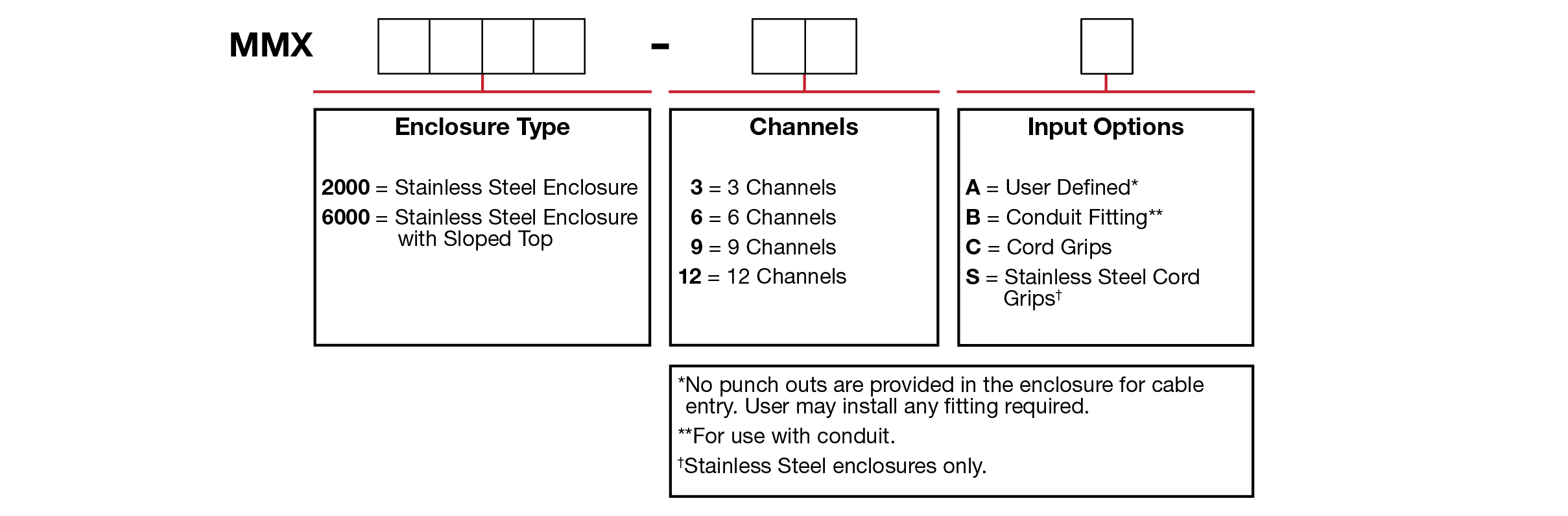

Ordering Information
