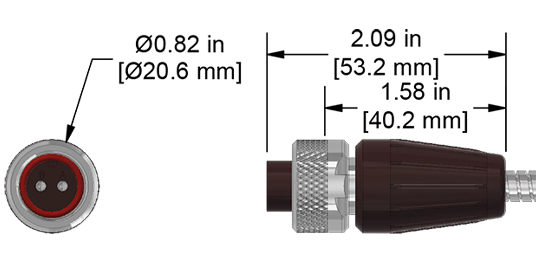

Q2R Series
High Temperature, 2 Socket MIL-Style Connector with Grounded Backshell for Hazardous Locations, PPS Molded, Permanent Measurements, 392° F (200° C) Max Temp
Product Features
Grounded Locking Ring for CSA North America Intrinsically Safe & Class 1, Division 2 Locations and IECEx & ATEX Intrinsically Safe & Zone 2 Locations
- 2 Socket Connection for use with CTC Standard Size, Single-Axis Sensors
- Approved Cabling: CB102, CB111, CB296
- 316L Stainless Steel Locking Ring for Added Durability and Corrosion Resistance
| Specifications | |
|---|---|
| Application | Permanent Mount |
| Max Temperature | 392° F (200° C) |
| Connector Type | 2 Socket MIL-Style |
| Shell Material | Polyphenylene Sulfide (PPS) |
| Connector Insert Material | Polyphenylene Sulfide (PPS) |
| Rating | IP68 |
| Pin-Out | A = Signal (+) B = Common (-) |
