SCD100 Series
Vibration Relay & Display System for CTC SC Series Signal Conditioners, with Options to Include Switch Relay or Display Only, Fiberglass Enclosure, NEMA 4X (IP65) Rated, with Optional Stack Light and Horn Alarm
Product Features
Display the vibration level from a signal conditioner. Compatible with CTC SC Series Signal Conditioners.
Capability to trigger alarms and shutdown* machinery based on the amplitude of the overall vibration within a selected frequency range to protect critical machinery & processes from excessive vibration & catastrophic failure (*shutdown feature only available when used without the optional stack light)
- Sunlight viewable display of vibration levels: IPS, g’s, mils or customized scale
- Relay includes two Form C relays per process controller
- Optional red or tri-color stack light with optional horn alarm can be programmed to flash or remain steadily on when in alert
| Specifications | |
|---|---|
| Temperature Range | 32 to 140 °F (0 to 60 °C) |
| Enclosure Material | Fiberglass |
| Power | 85 to 265 VAC universal power supply |
| Sensor Input Options | 1 - 4 Channels |
| Rating | IP65 |
| Door Closure | Snap Latches |
| Dimensions | 11.88 x 13.75 x 7.53 in. (302 x 349 x 191 mm) |
| Resistance | Resistant to Hose Directed Fluid and Corrosion |

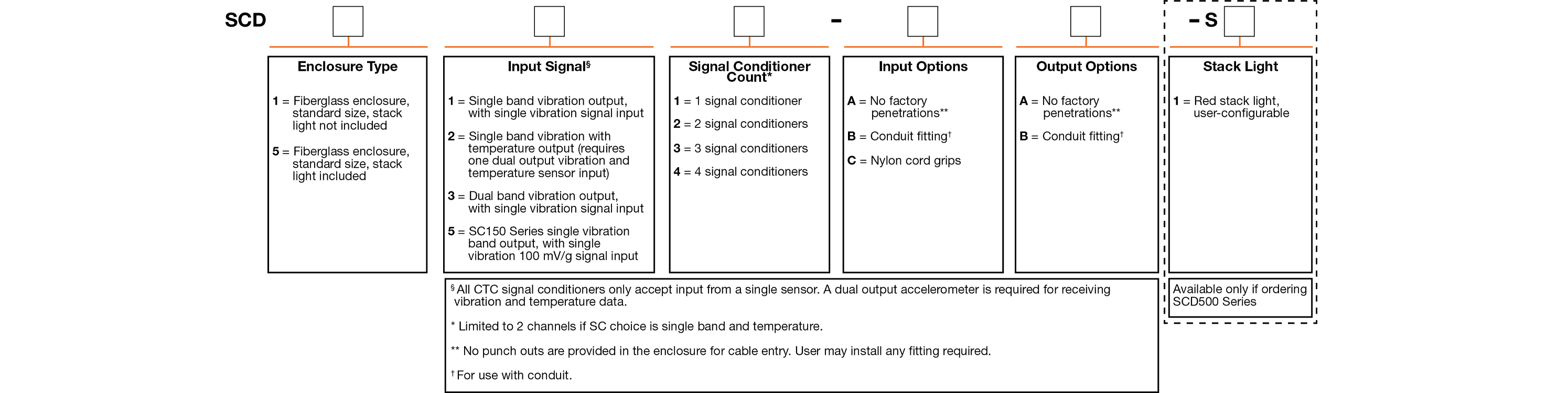

Ordering Information
