AC184 Series

Multipurpose Accelerometer, Side Exit 2 Pin Connector, M8x1.25 Captive Bolt, 100 mV/g, ±10%
AC184-1A
2 Pin Connector
Connector Pin Polarity
A (+) Signal/Power
B (-) Common
Stock Product
AC184-2C
CB103 Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
Built To Order
AC184-3C
CB206 Armored Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
Built To Order
AC184-6C
CB611 Heavy Duty Armored Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
Built To Order
Specifications Standard Metric
Sensitivity (±10%) 100 mV/g
Frequency Response (±3dB) 30-600,000 CPM 0,5-10000 Hz
Frequency Response (±10%) 120-300,000 CPM 2,0-5000 Hz
Dynamic Range ± 80 g, peak
*Vsource ≥ 22V, 12Vbias
Electrical
Settling Time <2.5 seconds
Voltage Source (IEPE) 18-30 VDC
Constant Current Excitation 2-10 mA
Spectral Noise @ 10 Hz 14 µg/√Hz
Spectral Noise @ 100 Hz 2.3 µg/√Hz
Spectral Noise @ 1000 Hz 2 µg/√Hz
Output Impedance <100 ohm
Bias Output Voltage 10-14 VDC
Case Isolation >108 ohm
Specifications Standard Metric
Environmental
Temperature Range -58 to 250°F -50 to 121°C
Maximum Shock Protection 5,000 g, peak
Electromagnetic Sensitivity CE
Sealing Welded, Hermetic
Submersible Depth 200 ft. 60 m
SIL Rating SIL 2
Physical
Sensing Element PZT Ceramic
Sensing Structure Shear Mode
Weight 6 oz 170 grams
Case Material 316L Stainless Steel
Mounting M8x1.25
Connector (Non-Integral) 2 Pin MIL-C-5015
Resonant Frequency 1,200,000 CPM 20000 Hz
Mounting Torque 2 to 5 ft. lbs. 2,7 to 6,8 Nm
Mounting Hardware M8x1.25 Captive Bolt
Calibration Certificate CA10

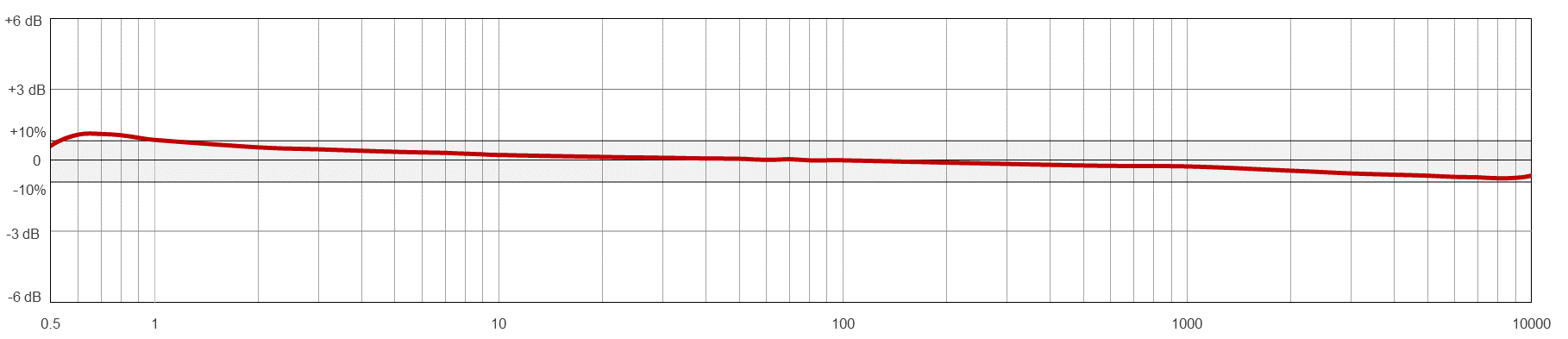

Typical Frequency Response

Frequency Response Chart
