Analog IC Temperature Sensor vs RTD Sensor
In the world of temperature measurement, selecting the right sensor is crucial for accurate and reliable results. Two popular options are analog IC Temperature Sensors and Resistance Temperature Detector Sensors (RTDs). Each has its own set of advantages, making the choice between them dependent on the specific needs of your project.
Similarities
- Both sensor types offer a highly linear temperature output response, making data interpretation easy.
- Both sensor types offer dual output designs, for vibration and temperature readings out of one sensor.
- Both sensor types offer standard top and side exit form factors.
Differences
- Price:
- IC Temperature Sensors are often more cost-effective than RTDs, making them a preferred choice for budget-conscious projects.
- IC Temperature Sensors are often more cost-effective than RTDs, making them a preferred choice for budget-conscious projects.
- Accuracy:
- RTDs generally provide the most accurate temperature measurements compared to IC Temperature Sensors. However, RTD measurements are only the most accurate when using a three-wire or four-wire RTD system. If your online monitoring system only allows for a two-wire RTD system, there will be error introduced into your temperature measurement. This error is static and will increase with longer cable lengths. As a result, there are diminishing returns as it pertains to accuracy when comparing an RTD used in a two-wire system to an analog IC Temperature Sensor.
- RTDs generally provide the most accurate temperature measurements compared to IC Temperature Sensors. However, RTD measurements are only the most accurate when using a three-wire or four-wire RTD system. If your online monitoring system only allows for a two-wire RTD system, there will be error introduced into your temperature measurement. This error is static and will increase with longer cable lengths. As a result, there are diminishing returns as it pertains to accuracy when comparing an RTD used in a two-wire system to an analog IC Temperature Sensor.
- Output Format and System Compatibility:
- Analog IC-based Sensors output a voltage proportional to temperature, making them easy to integrate into many systems. RTD-based sensors are resistive and require the measurement system to have support for such types of temperature sensors.
- Analog IC-based Sensors output a voltage proportional to temperature, making them easy to integrate into many systems. RTD-based sensors are resistive and require the measurement system to have support for such types of temperature sensors.
- Output Wiring:
- RTD-based sensors require three- or four-wire solutions to benefit from their higher accuracy. IC-based sensors do not need to worry about this.
- RTD-based sensors require three- or four-wire solutions to benefit from their higher accuracy. IC-based sensors do not need to worry about this.
- Sensing Element Location and Response Time:
- In RTD-based sensors, the RTD element is located in the base of the sensor. In analog IC-based sensors, the sensing element (IC) is located in the connector of the sensor.
- What does this mean?
- RTD sensors are far superior at accurately measuring mounting surface temperatures. Since the element is at the base of the sensor it will respond very quickly to changes in surface temperature and will be very accurate.
- IC-based sensors, on the other hand, the sensing element is located in the connector. Due to this, they do not respond nearly as quickly to surface temperature changes (as the whole sensor needs to saturate to the surface temperature). Furthermore, dependent on ambient temperature, the reported temperature is likely to be lower than the actual mounting surface temperature due to thermal dissipation to the surrounding air (think of a heat sink).
- In short, RTD-based sensors are great for accurate and fast surface temperature readings if this is required. IC-based sensors are a good alternative if accurate surface temperature readings are not required and close proximity ambient temperatures are suitable.
CTC offers both Dual Output Acceleration and Temperature, Velocity and Temperature, as well as temperature-only IC Temperature Sensors:

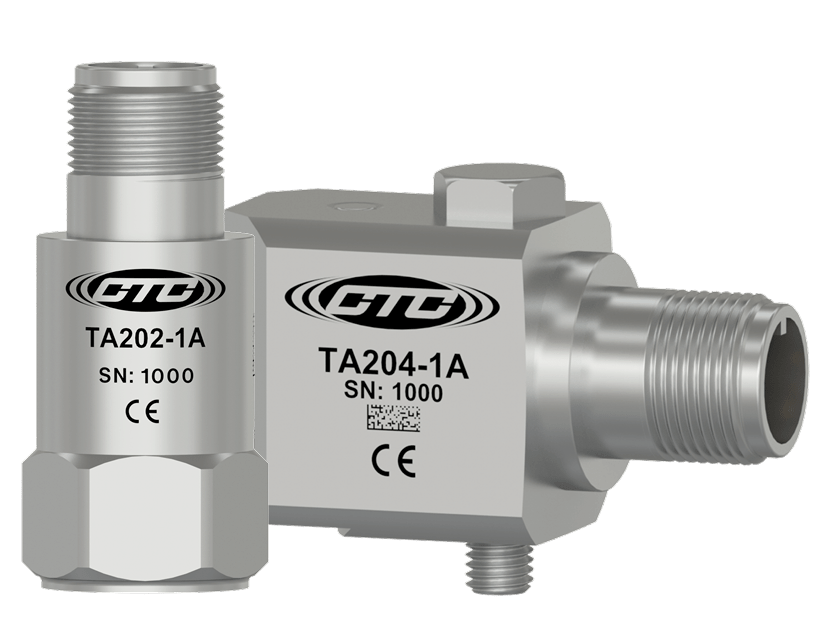

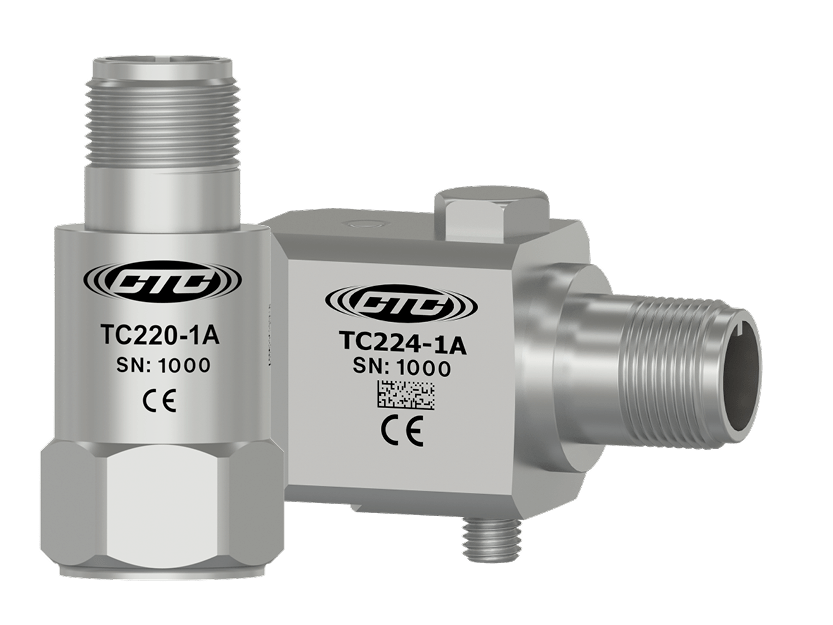

Dual Output Acceleration and Temperature Sensors

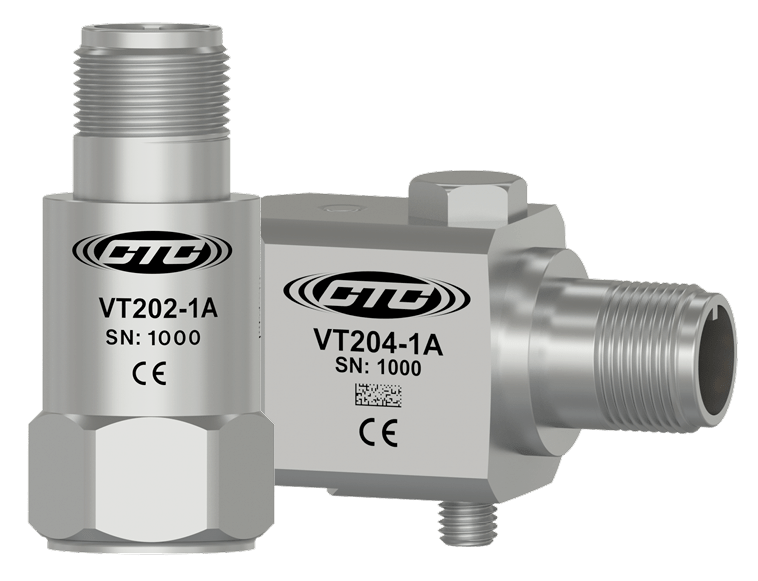

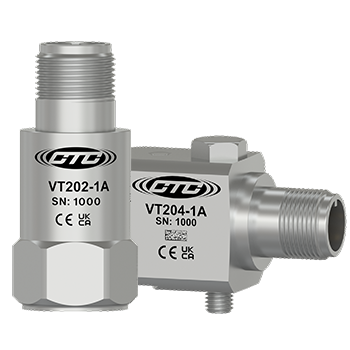

Dual Output Velocity and Temperature Sensors
CTC offers Dual Output Temperature & Acceleration RTD sensors:
TR100 Series Sensors for Standard RTD and Acceleration Measurements:

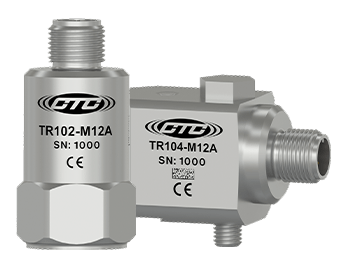

TR102-M12A
TR104-M12A
TR133-M12A
TR134-M12A
TR200 Series Sensors for RTD and Acceleration Measurements in High-Temperature Applications:

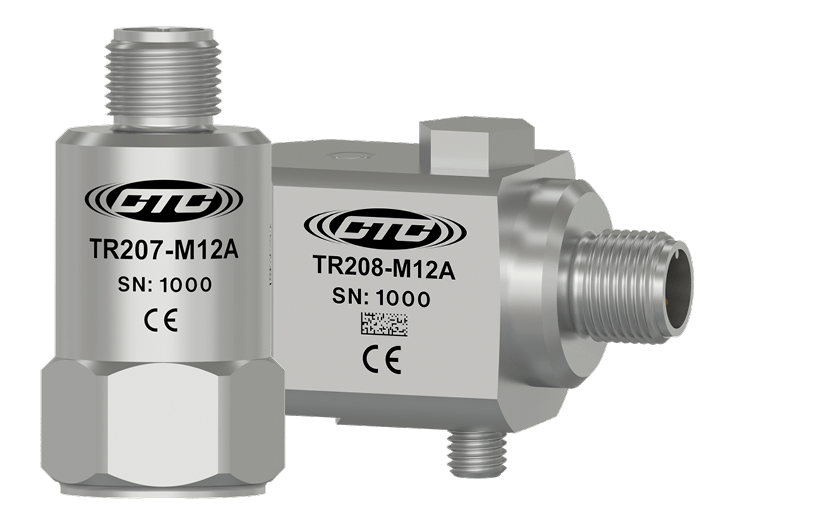

TR207-M12A
TR208-M12A
The choice between analog IC Temperature Sensors and an RTD Temperature Sensor ultimately depends on the specific requirements of your application. Both thermocouples and RTDs have their strengths and are well-suited for different scenarios. Carefully evaluating your project's needs and considering factors such as accuracy and cost will help you make an informed decision and ensure the success of your temperature measurement system.
