Available Replacement Connector for D2C

Available Replacement Connector for D2C

CTC's K2C connector is a premium replacement for D2C, at a lower price point. The K2CG offers the same functionality, but features a reduction of outsourced components for enhanced reliability.



K2C

D2C

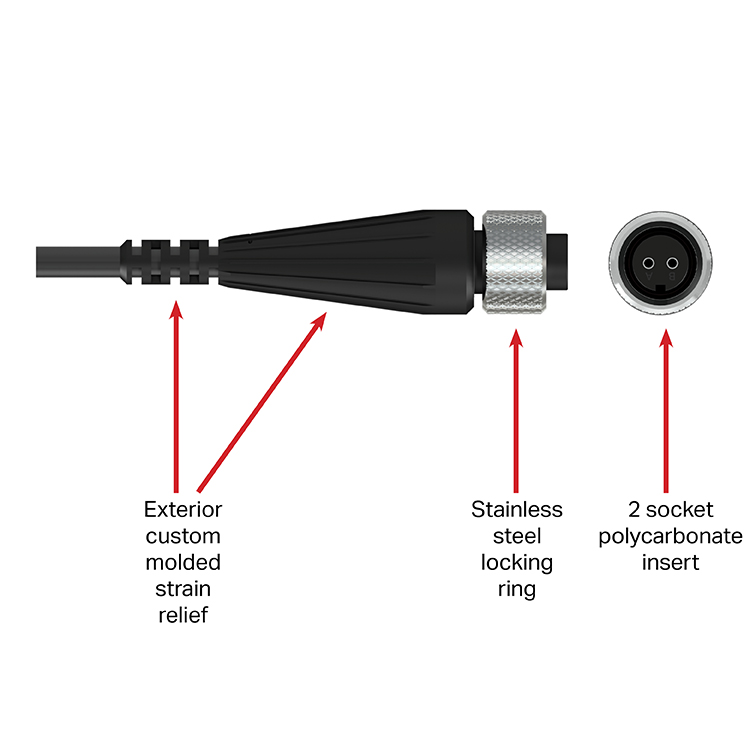

K2C Connector Details:

  • Stainless steel connector locking ring (compared to aluminum on D2C)
  • Custom molded two-socket polycarbonate connector insert (CTC controls the manufacturing of this – we own the mold for the inserts, giving CTC superior control over supply chain delays compared to commercially sourced Amphenol or worldwide supplier parts)
  • Internally reinforced aluminum strength collar (same as used in D2C, with minor dimensional modifications to adapt to the actual two-socket insert internal to the connector).
  • Polyurethane in-house over-molded bending strain relief (same material, and very similar over-mold construction as D2C)
  • Lighter weight and smaller form factor than D2C. This is not typically a driving factor in selecting industrial connectors, however, it does give it a “sleeker” look and form factor. The slight weight advantage does provide an improved pull strength in magnet-mounted vibration measurements, in that it won’t mass load the magnet/accelerometer assembly as much as the D2C when mounted horizontally, where the pull strength of the magnet could be compromised by the overall weight of the magnet/sensor/cable assembly.
