CTC Compact Series Overview

Compact Series Accelerometers Options

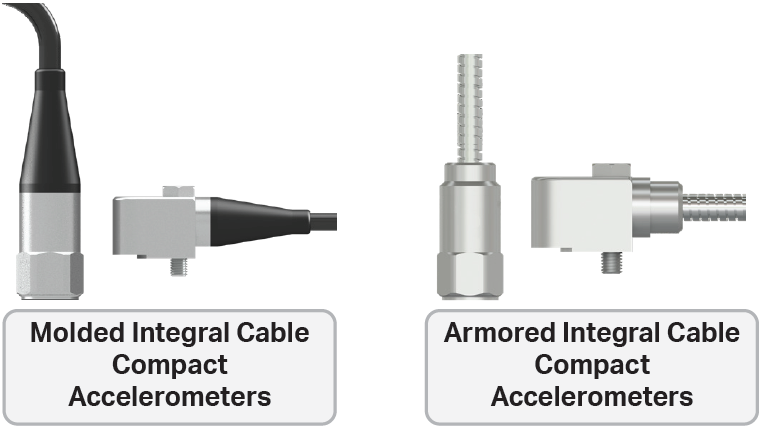

Now featuring M12 connector options. All styles come in premium ±5% sensitivity tolerance and standard ±10% sensitivity tolerance options. Integral cable options are IP68-rated, and connector options are IP68-rated when used with CTC V Series Viton™ Boot Connectors.

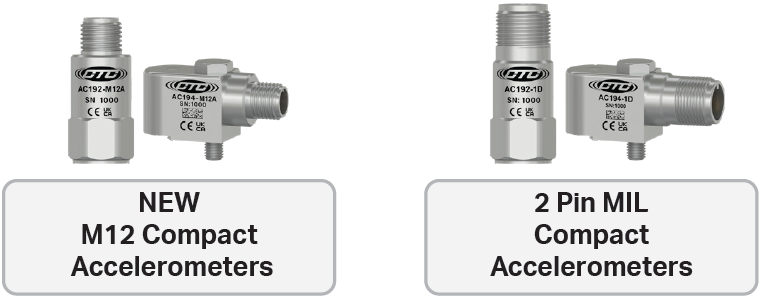

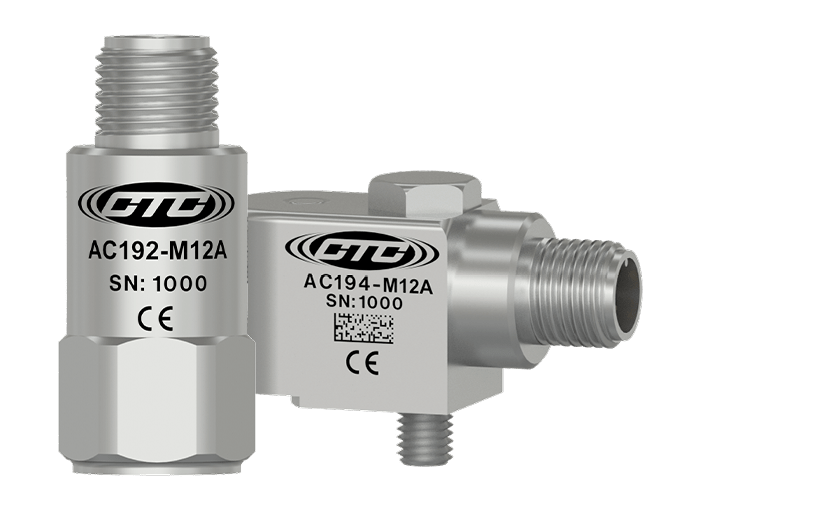

A render of CTC's AC192-M12 top exit accelerometer and AC194-M12 side exit accelerometer
AC192-M12 and AC194-M12 compact size, top and side exit M12 connectors, 100 mV/g, ±10%

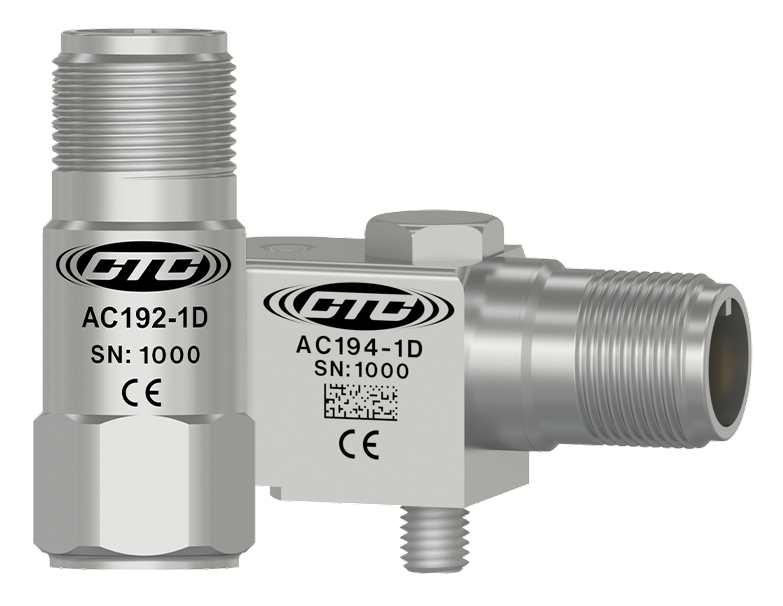

A render of a compact top exit AC192 sensor and a compact side exit AC194 sensor.

AC192 and AC194 compact size, top and side exit connectors, 100 mV/g, ±10%

Compact Size vs. Standard Size Accelerometer Size Comparison

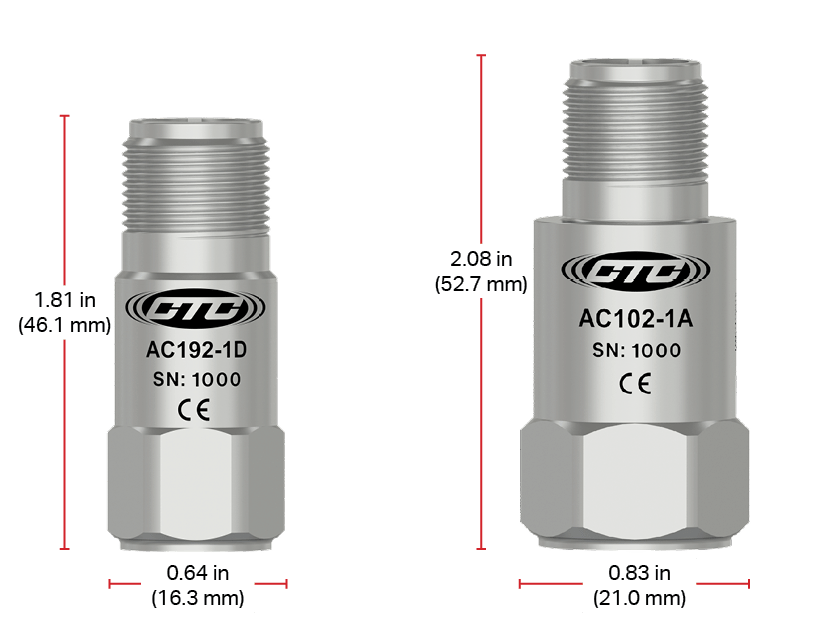

Our compact size accelerometers offer added flexibility in space-constrained applications. CTC’s top exit compact accelerometers also feature a smaller mounting base diameter (0.64” / 16.3 mm) compared to standard size accelerometers (0.83” / 21 mm) for use with smaller profile magnets, at no extra charge

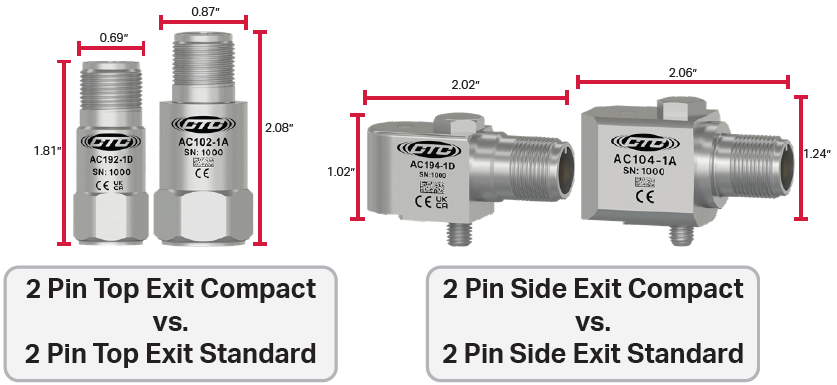

A render of a compact top exit accelerometer with 1.81 in. height next to a standard top exit sensor with 2.08 in. height
Compact size, 2 pin top exit connector vs. standard size, 2 pin top exit connector

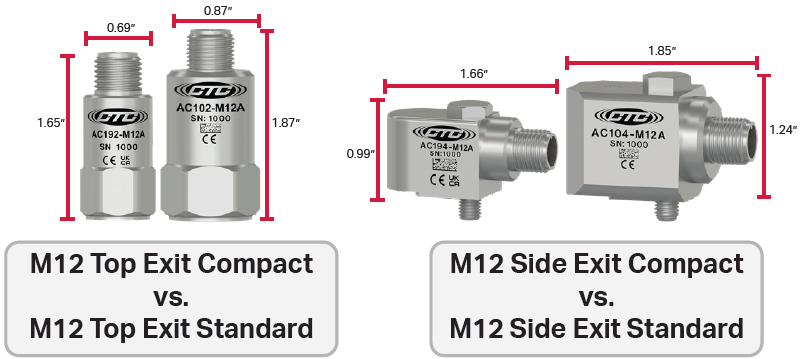

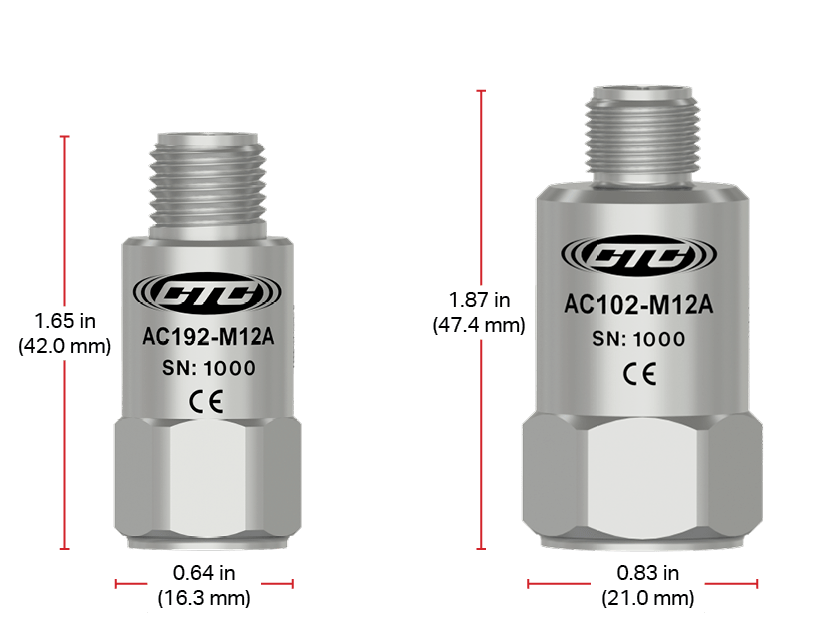

A render of a compact M12 top exit accelerometer with 1.65 in. height and a standard M12 top exit with 1.87 in. height.

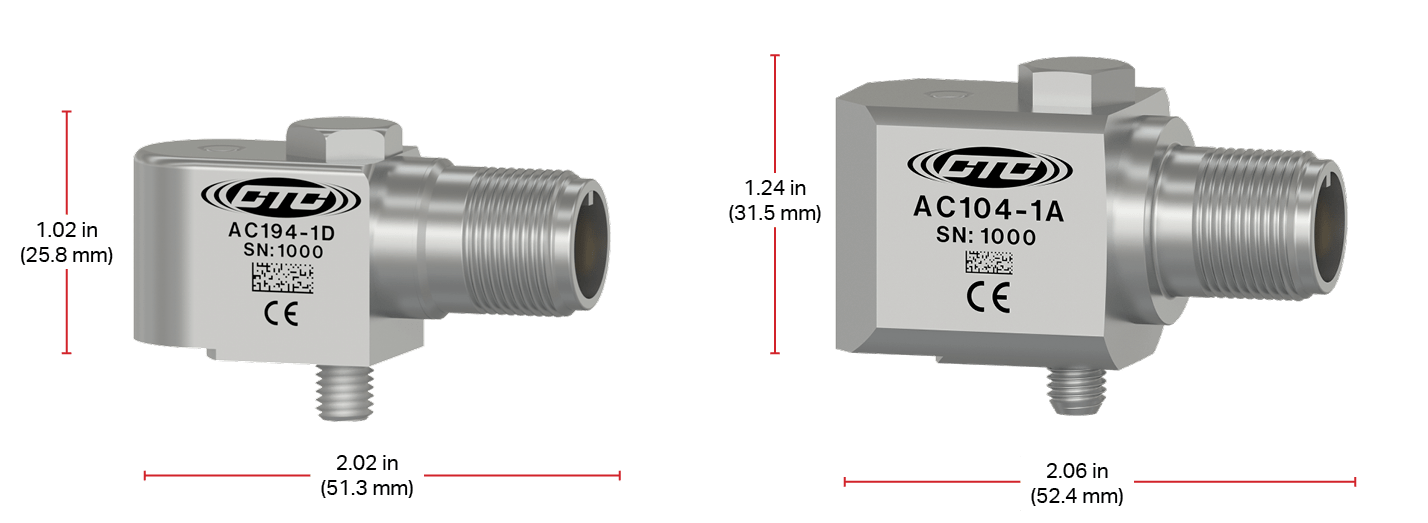

Compact size, 2 pin side exit connector vs. standard size, 2 pin side exit connector

A compact side exit accelerometer with 1.02 in. height next to a standard side exit accelerometer with 1.24 in. height
Compact size, M12 top exit connector vs. standard size, M12 top exit connector

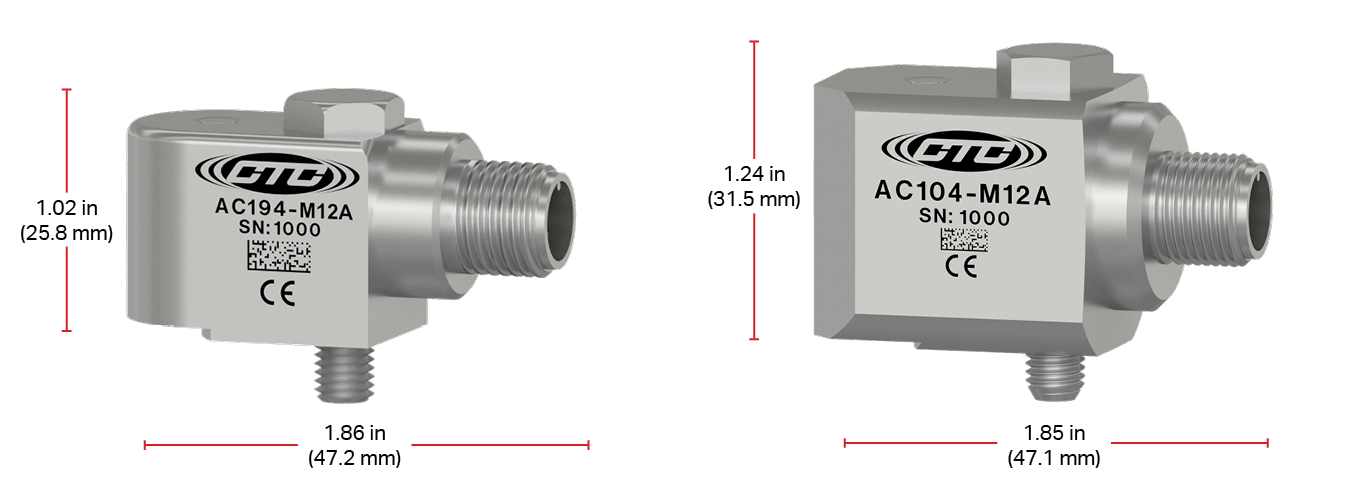

Compact size, M12 side exit connector vs. standard size, M12 side exit connector

Compact Series Mounting Options
Top Exit Sensor Stud Options

1/4-28 Stud
M6x1 Stud
M8x1 Stud

Side Exit Sensor Captive Bolt Options

1/4-28 Captive Bolt
M6x1 Captive Bolt
M8x1 Captive Bolt
