MDI Mini Case Study: Gearbox Defects

Thank you to our educational collaborator MDI for this case study

Download the printer-friendly pdf version of this blog

Introduction

Vibration analysis is a powerful tool for detecting issues like broken teeth in gearboxes. By monitoring vibration patterns, irregularities can be detected early, preventing costly failures and ensuring smooth operations.

Analysis

A gearbox defect was detected by MDI while on route in Queensland, Australia.

MDI utilized CTC's AC133 accelerometer, which is commonly used for gearbox monitoring applications.

Low Frequency Accelerometer, Top Exit Two-Pin Connector, 500 mV/g, ±10%, 6-600,000 CPM Frequency Response (±3 dB), -58 to 250 °F (-50 to 121 °C)

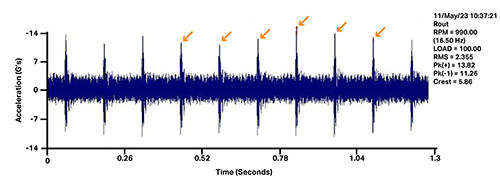

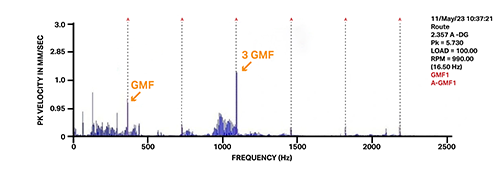

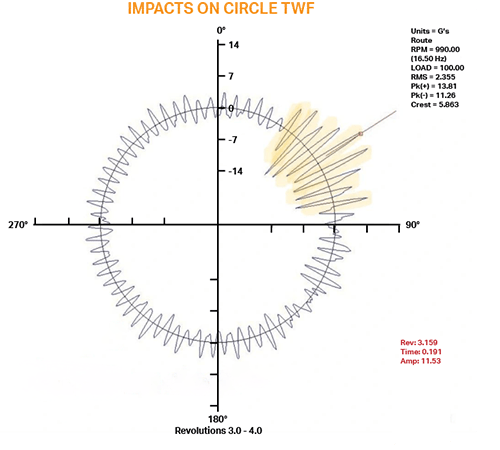

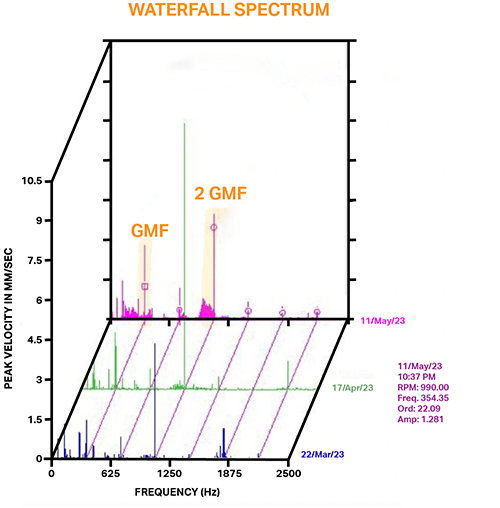

Findings
