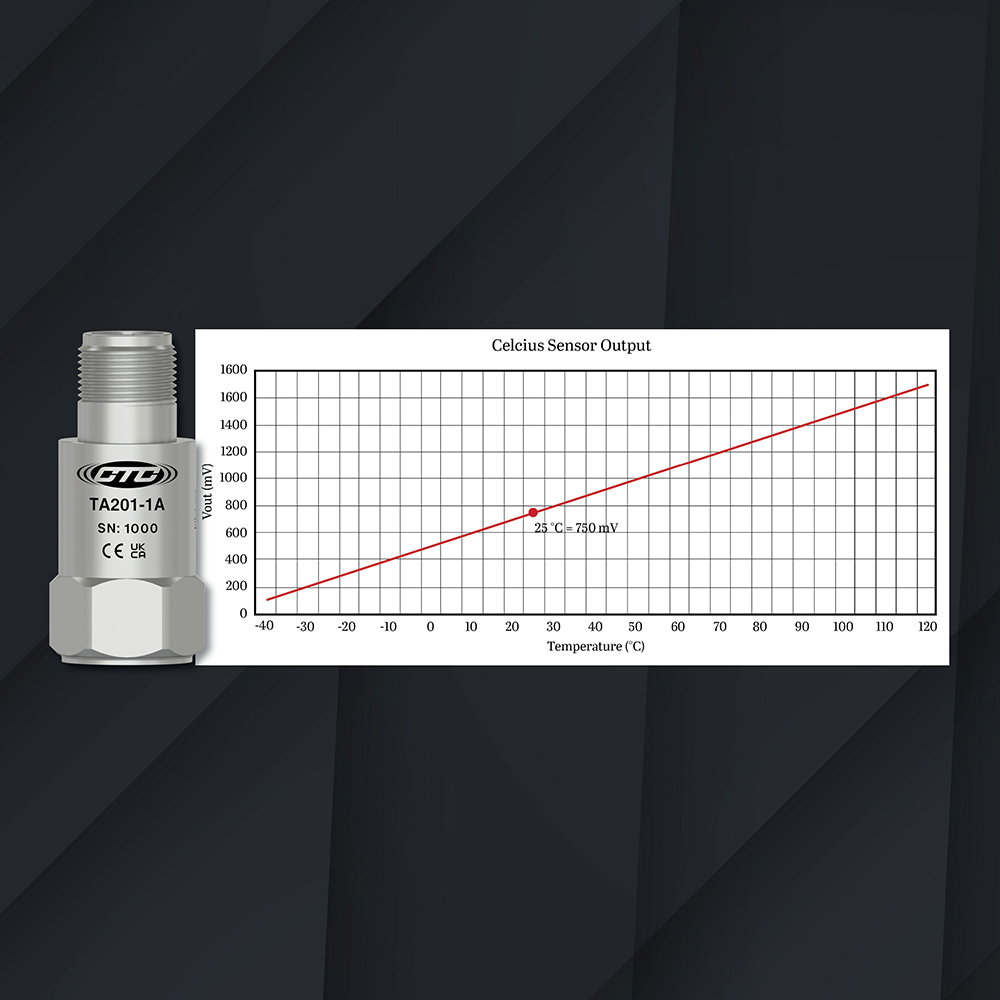

TA100 vs TA200 Series Temperature Scaling Comparison

Download printer-friendly Temperature Scaling Charts

CTC's TA200 Series Dual Output Temperature and Acceleration Sensors have replaced the legacy TA100 Series Sensors.

TA200 Series Sensors feature an enhanced temperature range of -40 °F to 250 °F (-40 °C to 121 °C).

The charts below illustrate the difference in temperature scaling between the discontinued TA100 Series and the current TA200 Series:

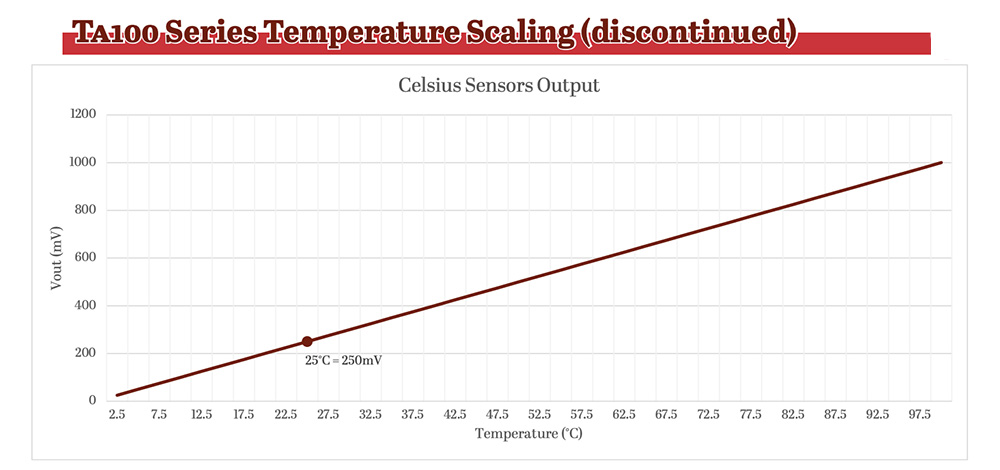

TA100 Series:
Vout at 25 °C = 250 mV ±2 °C
Measurement Range = 2.5 °C to 100 °C
Vout Tolerance (2.5 °C to 100 °C) = ±3 °C

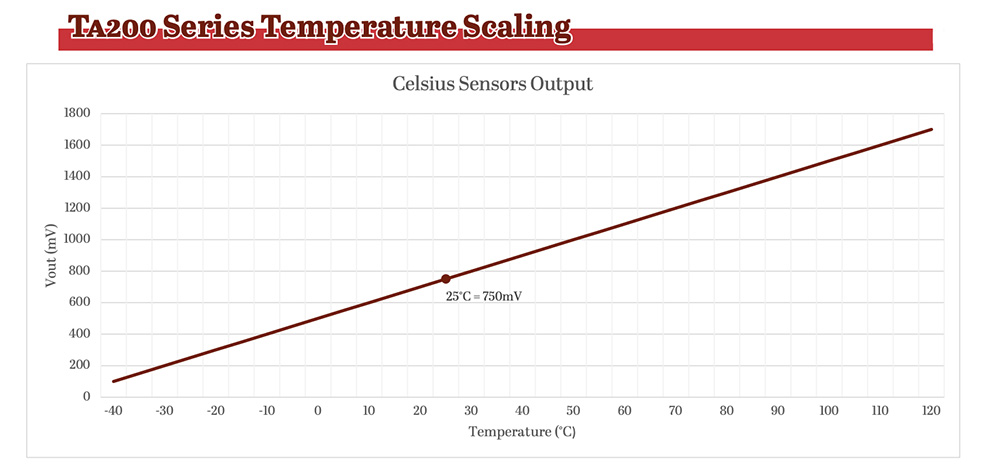

TA200 Series:
Vout at 25 °C = 750 mV ±1 °C
Measurement Range = -40 °C to 121 °C
Vout Tolerance (-40 °C to 0 °C) = +4 °C/-2 °C
Vout Tolerance (70 °C to 125 °C) = +4 °C/-2 °C
Vout Tolerance (0 °C to 70 °C) = ±2 °C
