Vibration Analysis vs Ultrasound Analysis Explained

Ultrasound sensors can be your secret weapon in detecting bearing failure. CTC is making the next generation innovations with our industrial shear mode design, compared to the mechanical design that is common with other ultrasound sensors on the market.

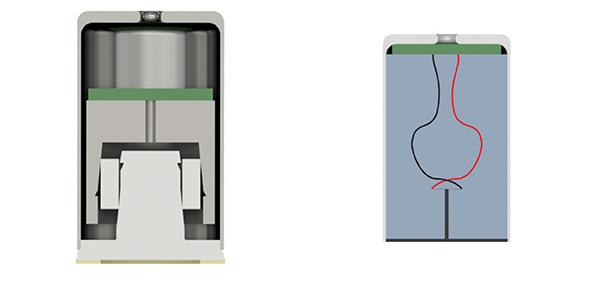

(pictured above - left: CTC ultrasound sensor interior | right: competitor's sensor interior)

Vibration Analysis:

• Any frequencies up to 20 kHz
• Used for detailed analysis of bearing fault
• Monitor gear mesh frequencies
• Detect normal faults (unbalance, misalignment)

Ultrasound Analysis:

• Any frequencies GREATER than 20 kHz
• Used for early bearing fault warning
• Helpful with lubrication of bearings
• Monitor lubrication between two surfaces

CTC's UEB332 provides the benefits of BOTH vibration analysis and ultrasound analysis by combining vibration and ultrasound technology in one hermetically sealed sensor:

UEB332 - Ultrasound Sensor, 100mV/g, Top Exit, 2 Pin mini-MIL Connector, 1/4-28 Mounting

Click here to view the UEB332 Datasheet for complete product specifications.
