Vibration Monitoring for the Paper Industry

Download the printer-friendly Vibration Monitoring for the Paper Industry Application Note

Predictive maintenance is essential to the paper and pulp manufacturing process to ensure product efficacy, operational uptime, and prevent catastrophic failure. Due to the intense heat and caustic processes involved in paper manufacturing, machine fires are a common occurrence in the absence of predictive maintenance.

Condition monitoring programs can be used to monitor the vibration of the bearings throughout the plant and improve the reliability of the overall process.

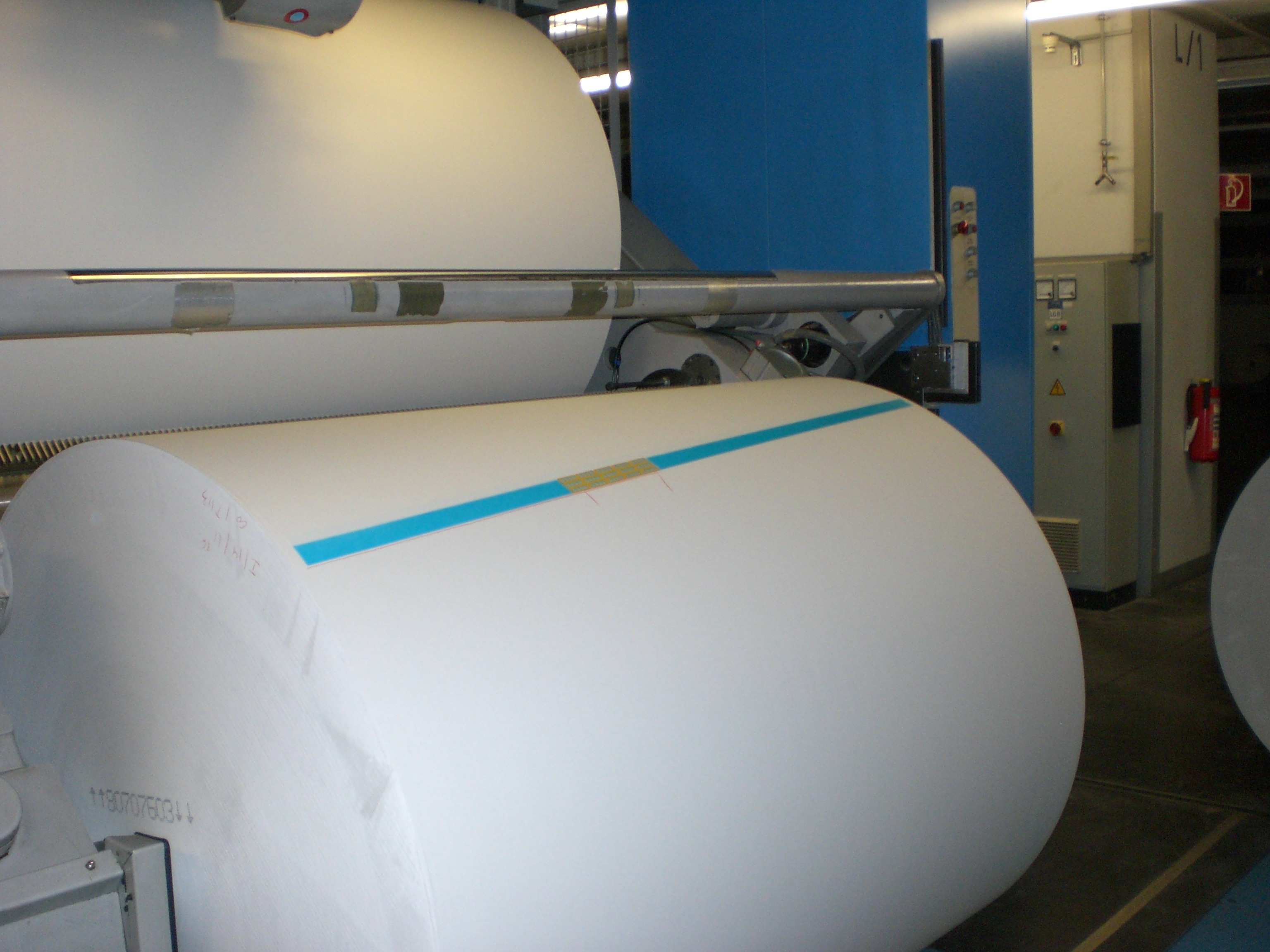

A large roll of paper on an industrial reel inside a factory

Commonly Monitored Machines within a paper mill include:

▶ Calendars
▶ Chippers
▶ Dryers
▶ Drying Cylinders
▶ Fans
▶ Gearboxes
▶ Motors
▶ Compressors
▶ Paper Machine Rolls
▶ Couch Rolls
▶ Pumps
▶ Winders

Common faults like misguided felts, breaks, and fires can be caused by defects in rolling element bearings resulting from:

▶ Improper Lubrication
▶ Misalignment
▶ Uneven Wear
▶ Overloading

Due to the often hot, wet, and chemically challenging environment present in paper and pulp processing, CTC recommends the permanent mounting of vibration sensors to the machine. CTC offers a variety of robust and reliable hardware tailored to meet the needs and environments of each industrial process within the paper industry.

FORMING / PRESSING AND CALENDAR SECTIONS

Environment Challenges in a paper with a red water drop icon representing high moisture, and a red beaker icon representing caustic chemicals

Recommended Products

Standard Accelerometer Offerings for environments up to 250 °F (121 °C):

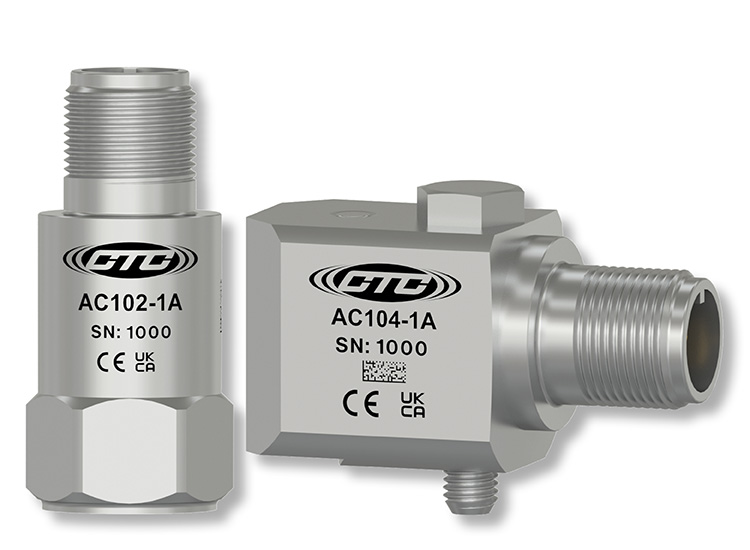

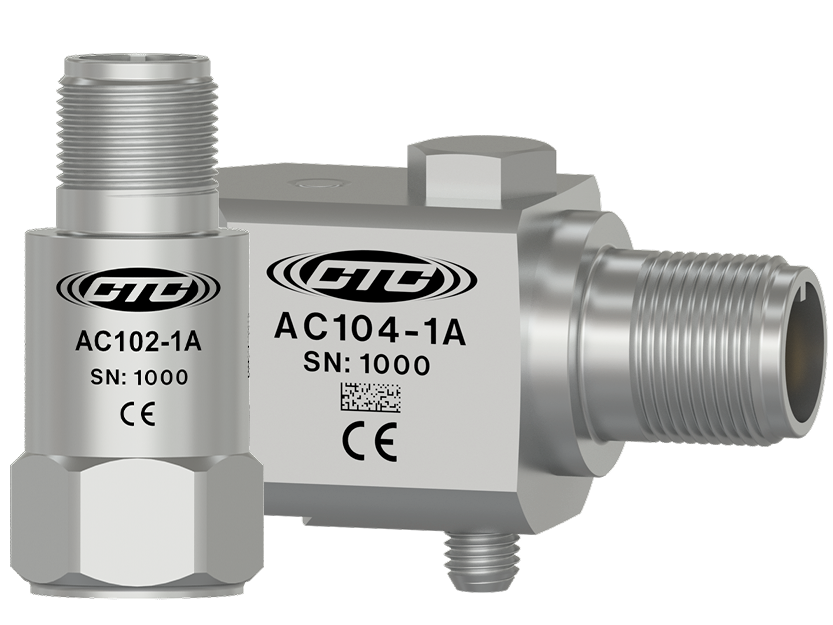

AC102 and AC104 Multipurpose Accelerometers, 2 Pin Connector, 100 mV/g, ±10%, ±80 g, Dynamic Range

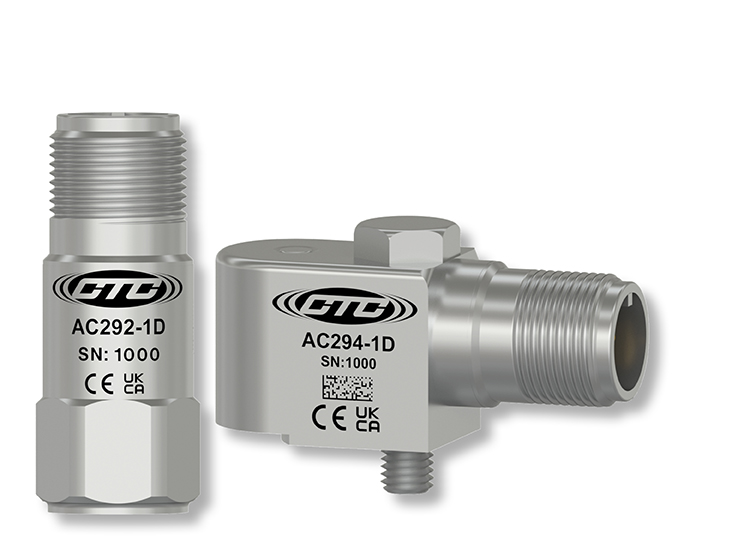

a stainless steel, top exit AC292 compact size industrial sensor next to a stainless steel, side exit, AC294 compact size vibration sensor

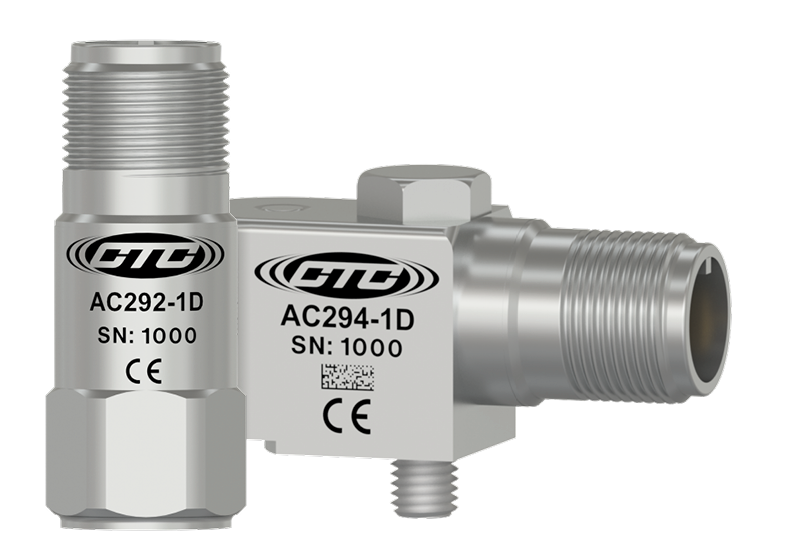

AC292 and AC294 Premium Compact Accelerometers, 2 Pin Connector, 100 mV/g, ±5%, ±80 g, Dynamic Range

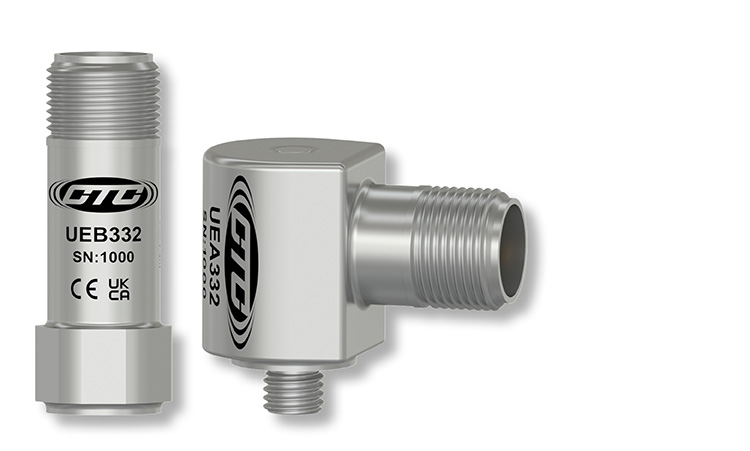

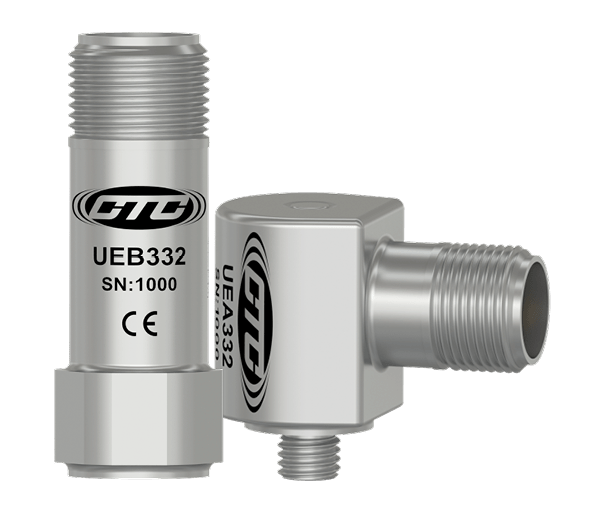

a stainless steel, top exit, miniature size UEB332 ultrasound sensor next to a stainless steel, side exit, miniature size UEA332 ultrasound sensor
UEB332 and UEA332 Dynamic Vibration IEPE Ultrasound Sensor, 1/4-28 Mounting, 2 Pin Mini-MIL Connector, 100 mV/g, ±10%, ±80 g, Dynamic Range

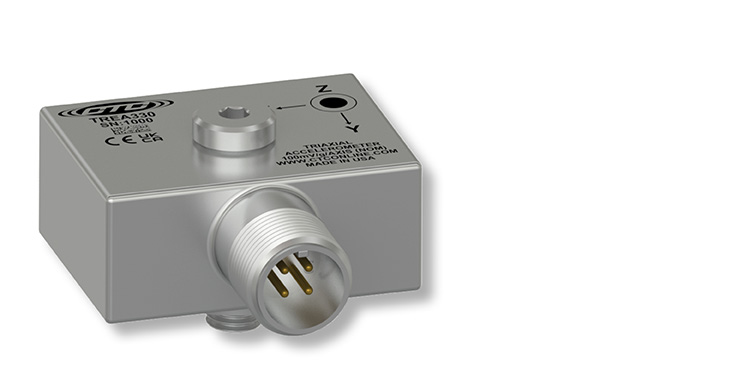

a side exit, mini size triaxial industrial accelerometer with A, X, and Y Axis Labels

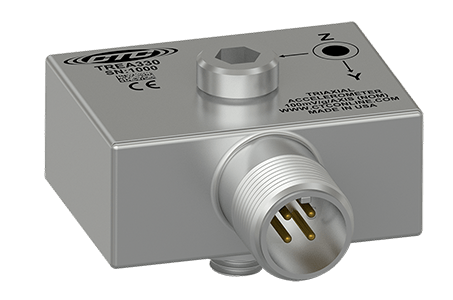

TREA330 Minature Industrial Triaxial Accelerometer, 4 Pin Mini-MIL Connector, 100 mV/g, ±5%, ±80 g, Dynamic Range

500 mV/g Accelerometer Offerings for slow, low-frequency applications:

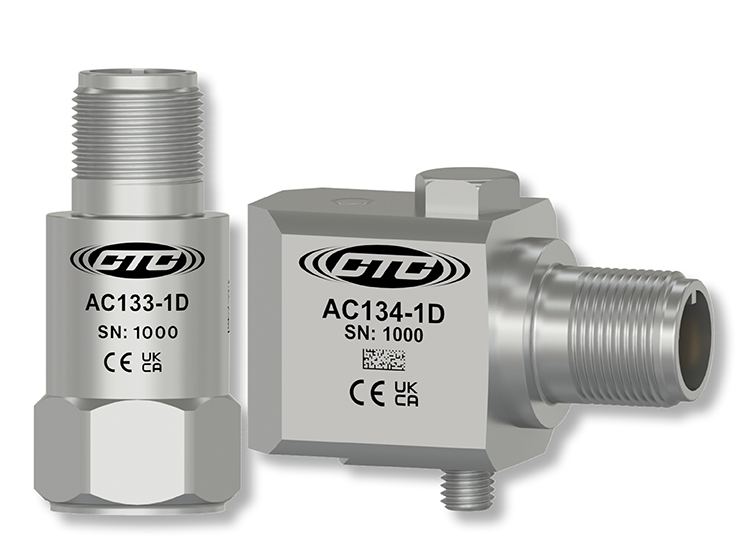

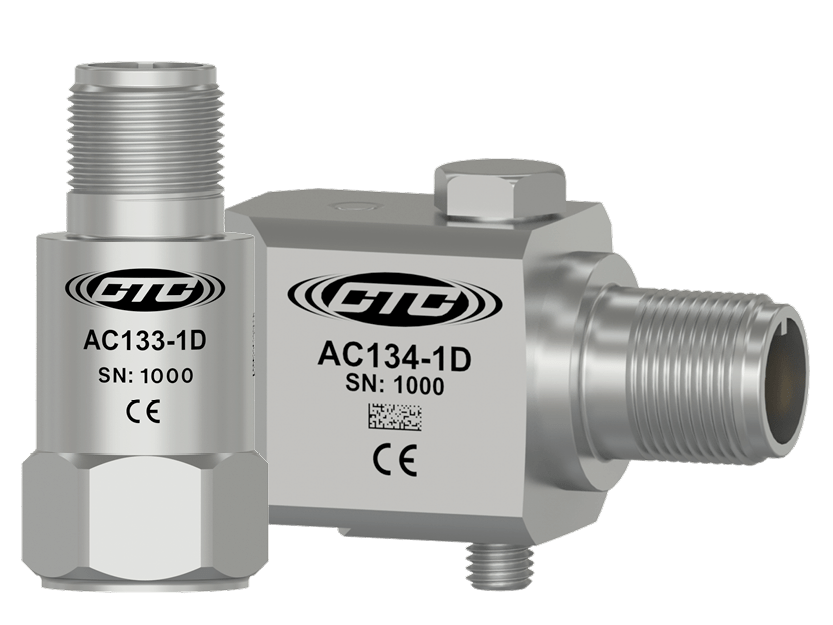

CTC Standard Size, stainless steel, Industrial Vibration sensors with AC133 top exit style on left and AC134 side exit style on right
AC133 and AC134 Low-Frequency Accelerometers, 2 Pin Connector, 500 mV/g, ±10%

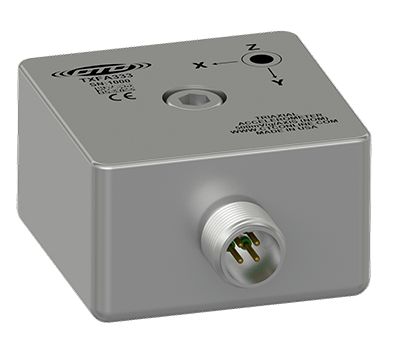

a side exit, standard size, stainless steel triaxial industrial sensor with Z, X, and Y Axis Labels
TXFA333 Low Frequency, Triaxial Accelerometer, Side Exit, 4 Pin Mini-MIL Connector, 500 mV/g, ±5%

CTC’s Dual Output Sensors are also very popular choices for paper mill predictive maintenance programs. Dual Output Sensors allow the user to measure both temperature and vibration in one sensor.

Dual Output Vibration and Temperature Offerings:

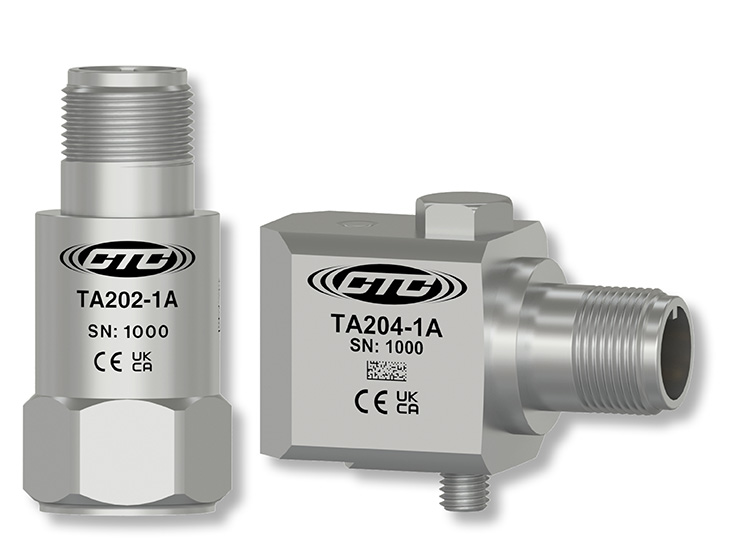

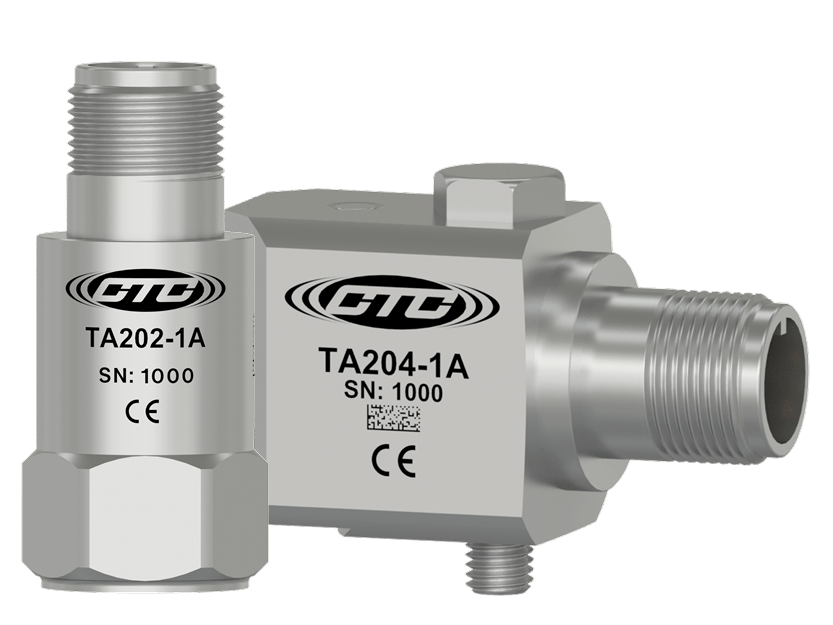

TA200 Series Dual Output Sensors, Temperature and Acceleration - Options:
25 mV/g and 10 mV/°C
100 mV/g and 10 mV/°C
500 mC/g and 10 mV/°C

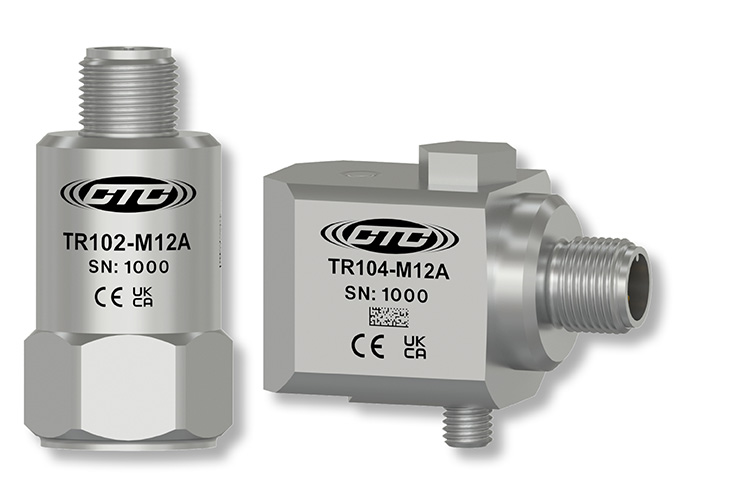

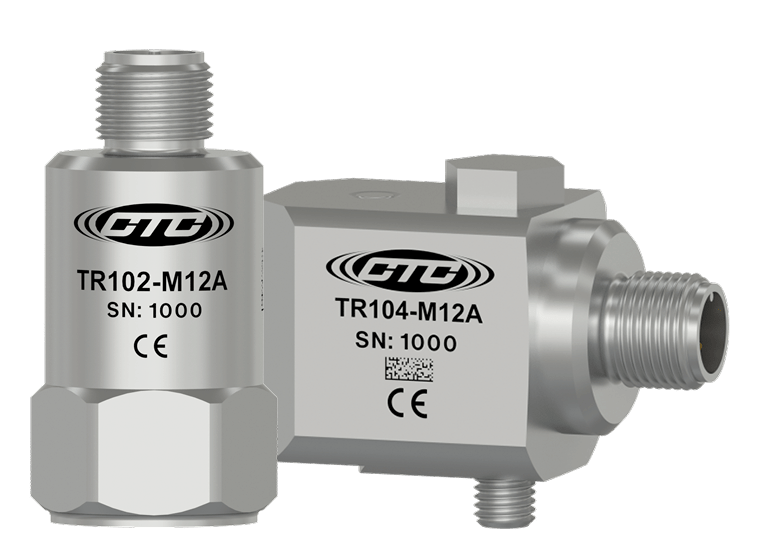

Stainless Steel, top exit and side exit, M12 standard size dual output RTD sensors
TR100 Series RTD Sensors, Temperature and Acceleration - Options:
100 mV/g and 10 mV/°C
500 mV/g and 10 mV/°C

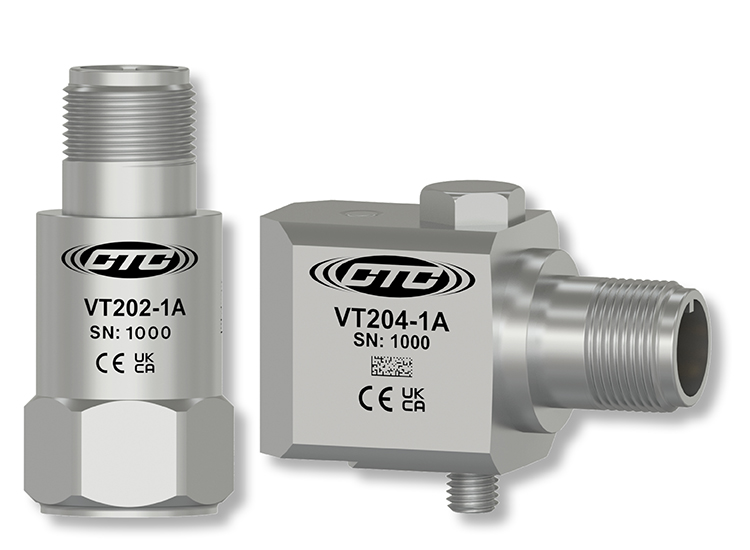

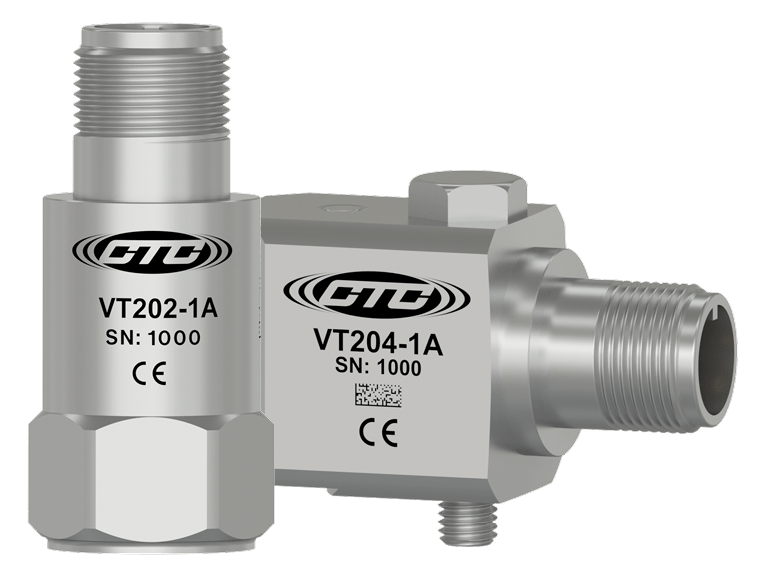

VT202 standard size, top exit, stainless steel accelerometer and VT204 standard size, side exit, stainless steel accelerometer
VT200 Series Dual Output Piezo Velocity Sensors, Velocity and Temperature - Options:
100 mV/in/sec and 10 mV/°C

CTC’s Nylon Connectors are the ideal choice for use with multi-purpose accelerometers and Dual Output Sensors in paper processing. Our nylon connectors have strong chemical resistance to caustic environments to protect the efficacy of your data. For high moisture concerns, select V Series Viton® Seal-Tight Boots for an IP69-rated seal:

Side and front views of A2A 2-Pin, Black Nylon Connector with Stainless Steel Knurled Ring, and A3A 3-Pin, Black Nylon Connector with Stainless Steel Knurled Ring
A2A and A3A Nylon Molded Connectors, 250 °F (121 °C)

Side and Front Views of B2A and B3A Black Silicone Seal-Tight Boot Connectors
B2N and B3N Seal-Tight Silicone Boot Connectors with Nylon Inserts, 250 °F (121 °C)

Side and Front Views of 2-Pin and 3-Pin Black Viton Seal-Tight Boot Connectors
V2N and V3N Seal-Tight Viton® Boot Connectors, with Nylon Inserts, 250 °F (121 °C)

Front and side view of CTC's J4N 4-Pin, Black Nylon Connector with Stainless Steel Knurled Ring for Triaxial Accelerometers
J4N Nylon-Molded Connector for 4-Pin Triaxial Accelerometers, 250 °F (121 °C)

CTC recommends FEP Jacketed Cabling for the chemical concerns present in paper processing:
Yellow FEP-Jacketed Industrial CB111 Cable with Red and Black Conductor Cables and Grey Shield Drain Wire coming out of the right side of cable
CB111 Twisted, Shielded Pair Cable for Single-Axis Sensors, 392 °F (200 °C)

Side view of CTC's CB112 White FEP-Jacketed Industrial Cable with Red, Black, and White Conductors and a grey cable shield drain wire coming out of the right end of the cable
CB112 3-Conductor, Shielded Cable for Dual Output Sensors, 392 °F (200 °C)

Orange FEP-Jacketed Industrial CB119 Cable with Red, Black, White, and Green Conductors and a Grey Shield Drain Wire coming out of the right side of cable
CB119 4-Conductor, Shielded Cable for Triaxial Sensors, 392 °F (200 °C)

DRYER SECTION AND HIGH-TEMPERATURE APPLICATIONS

A banner with a red temperature dial representing high and varying temperatures, and red water drop icon representing high moisture

Recommended Products

For high-temperature environments, CTC offers a variety of IEPE Sensors with high-temperature resistance up to 325 °F (162 °C):

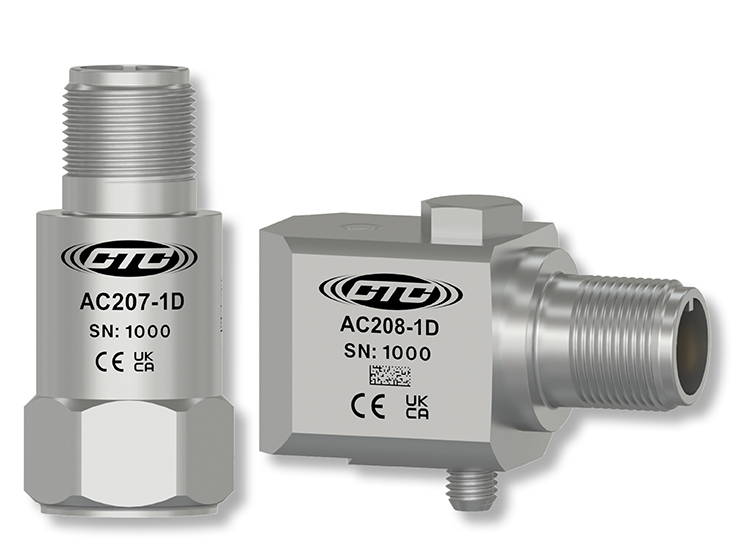

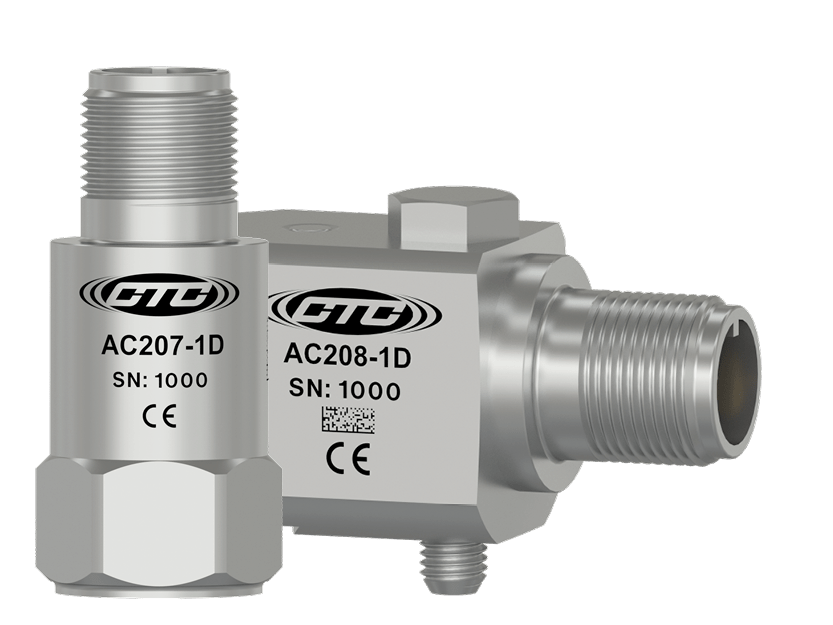

Top Exit, Stainless Steel, Standard Size AC207 Industrial Vibration Sensor and AC208 Standard Size, Side Exit, Stainless Steel Industrial Vibration Sensor for Condition Monitoring
AC207 and AC208 High Temperature, IEPE Accelerometers, 2-Pin Connector, 100 mV/g, ±10%

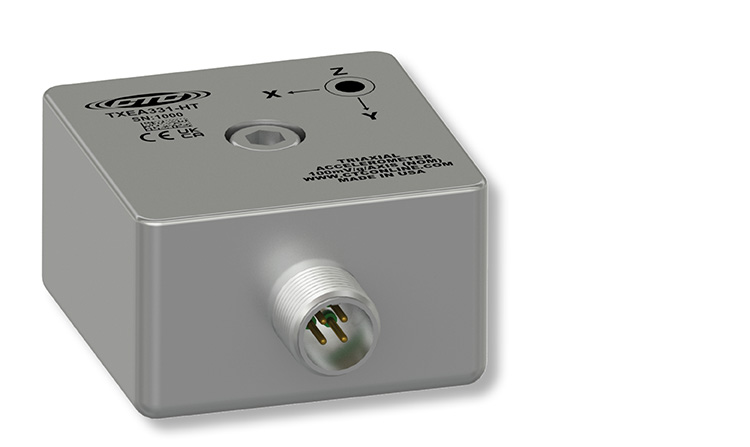

CTC's TXEA331-HT square triaxial accelerometer with side exit connector and Z, X, and Y Axis Labels

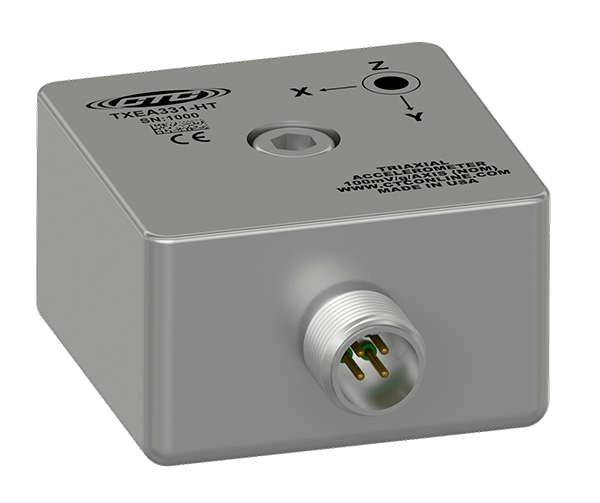

TXEA331-HT High Temperature, Triaxial Accelerometer, Side Exit 4-Pin Connector, 100 mV/g, ±5%

White rolls of toilet paper moving on an industrial metal conveyor belt inside a paper production factory

Pair CTC’s high-temperature resistance sensors with our high-temperature resistance connectors. CTC offers a variety of PPS Connectors rated for temperatures up to 325 °F (162 °C). CTC’s V2R (for single-axis sensors) and JV4R (for triaxial sensors) are Viton® Seal-Tight Boot Connectors with PPS Inserts. These connectors are great in caustic environments and have an IP69-rated seal to protect against hot and wet environments:
Front and Side Views of CTC's A2R Black PPS Connector with Stainless Steel Knurled Locking Ring

A2R 2-Socket, MIL-Style, PPS-Molded Connector, 392 °F (200 °C)

Front and Back Views of CTC's A2S Black PPS Connector with Black PPS locking ring on a red industrial cable
A2S 2-Socket, MIL-Style, PPS Molded Connector and Locking Ring, 392 °F (200 °C)

Front and Side View of CTC's V2R black Viton boot connector on a yellow industrial cable
V2R 2-Socket, MIL-Style, Seal-Tight Viton® Boot with PPS Insert, for Single-Axis Sensors, 350 °F (177 °C)

Front and Side View of CTC's JV4R black viton seal-tight boot connector on an orange industrial cable
JV4R 4-Socket, Mini-MIL, Seal-Tight Viton® Boot Connector with PPS Insert, for Triaxial Accelerometers, 350 °F (177 °C)

When permanently mounting sensors, it is important to run cables back to a safe data collection point to limit analyst exposure to the high temperatures found in the dryer section. CTC Junction Boxes provide a common cable termination point for bringing compatible cables for sensors back to one location for routine data collection with portable data collectors.

CTC offers a wide variety of Junction Boxes ranging from 1 channel up to 48 channels. Multiple channel count configurations mean that you only pay for the number of channels that you require. Due to moisture ingress concerns in paper processing, CTC recommends only selecting enclosures with latching doors for a NEMA 4X (equivalent to IP66) rating.

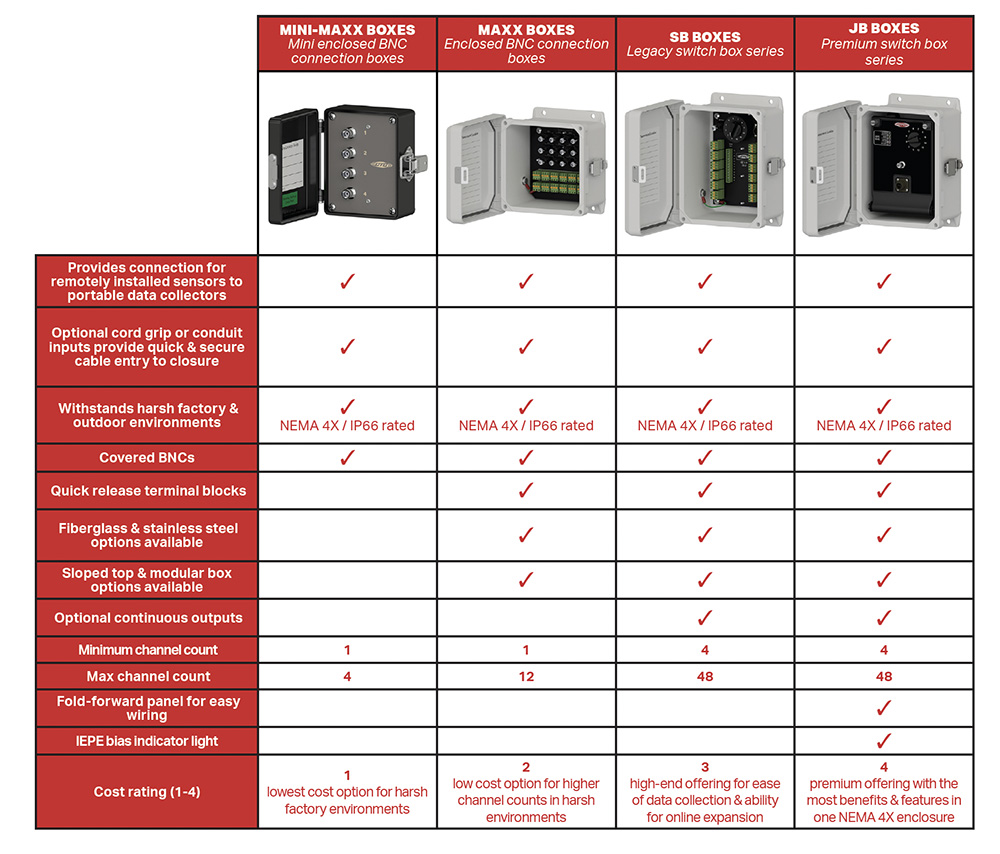

Chart comparing features between CTC's Mini-MAXX, MAXX, SB, and JB Series Enclosures, with renders of each box at the top of the column
