Mounting Hardware, Adapters, and VibeNavigator™ Extension Poles
CTC offers a variety of mounting studs, adapters, and adhesive and stud-mounted sensor mounting pads. Magnet mounting pad options for portable field applications are also available, including flat and two-rail mounting configurations. Additionally, we offer specialty mounting accessories for fin-cooled motors as well as a variety of extension adapters and VibeNavigator™ Data Collection Extension Poles which allow access to traditionally hard-to-reach bearing locations.
Specialty Mounting Adapters & Studs:
Rare Earth Magnetic Bases:
Made from Neodymium Iron Boron.
Accelerometer Quick Disconnects:

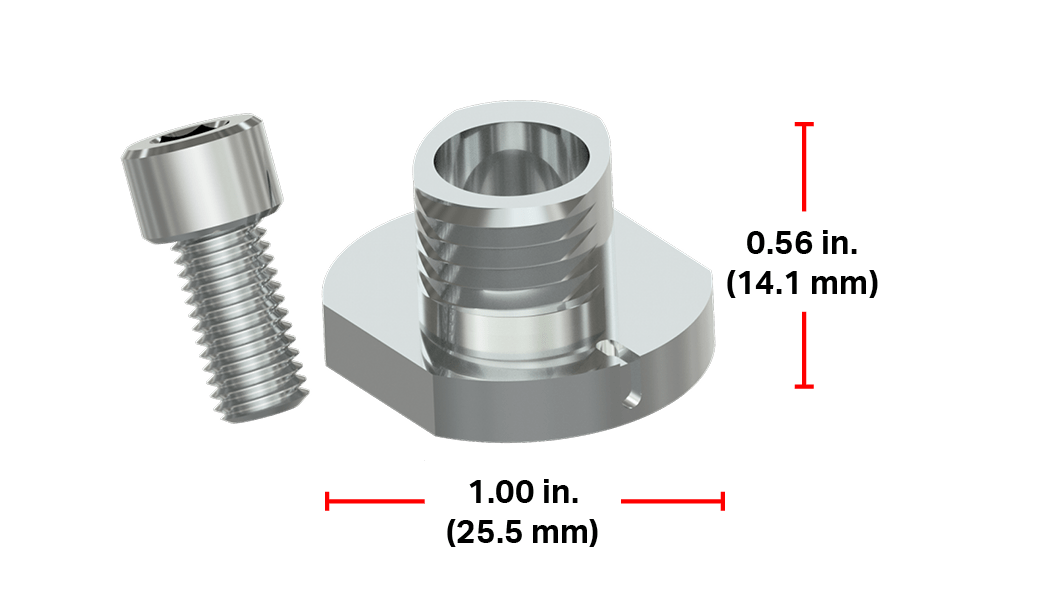

CTC's quick disconnects are ideally suited for triaxial sensor use. The permanently mounted stud creates a consistent mounting location for portable routes. The receptacle features a triaxial locating notch and ¼ turn engagement onto the stud, ensuring the sensor is oriented in the same position for every reading.

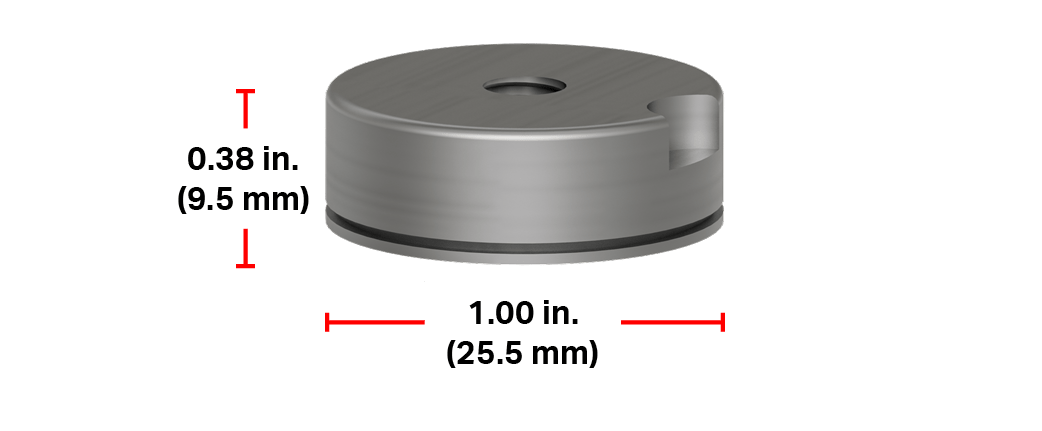

Mounting Pads / Magnet Targets:

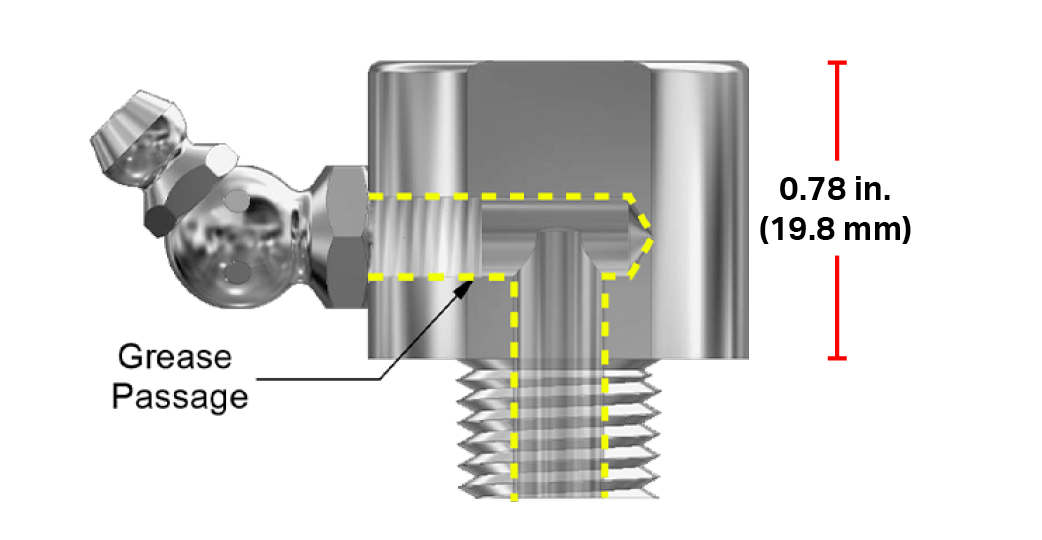

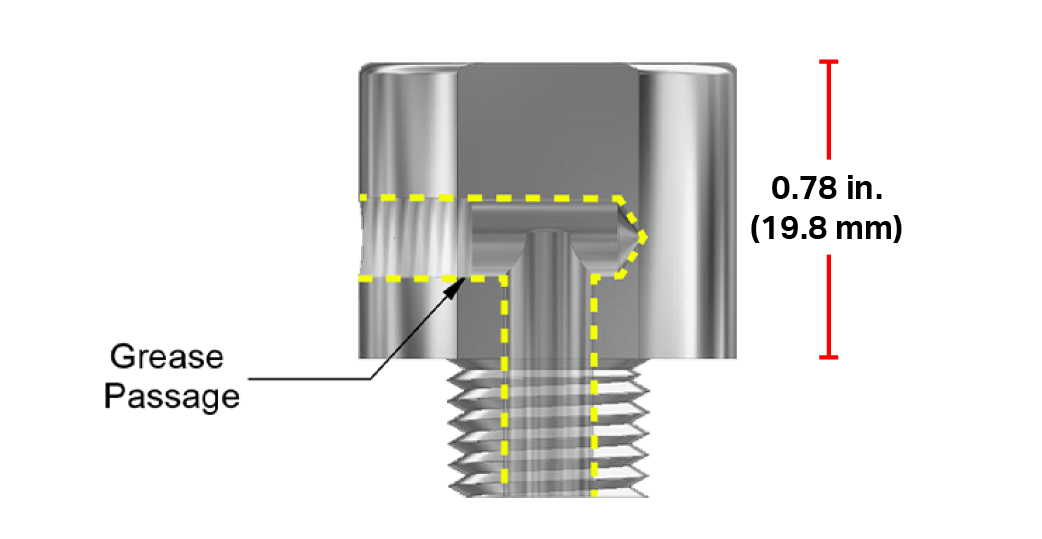

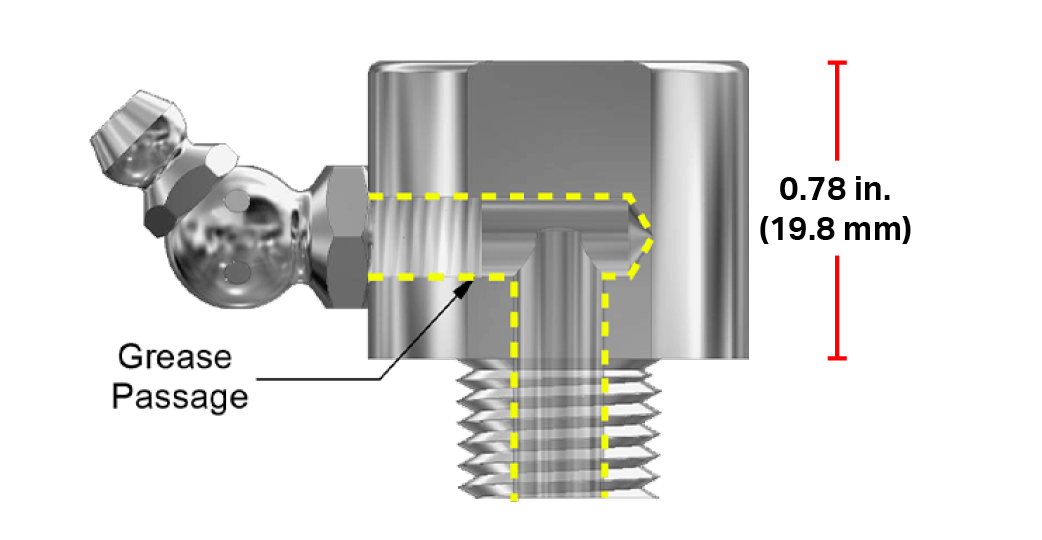

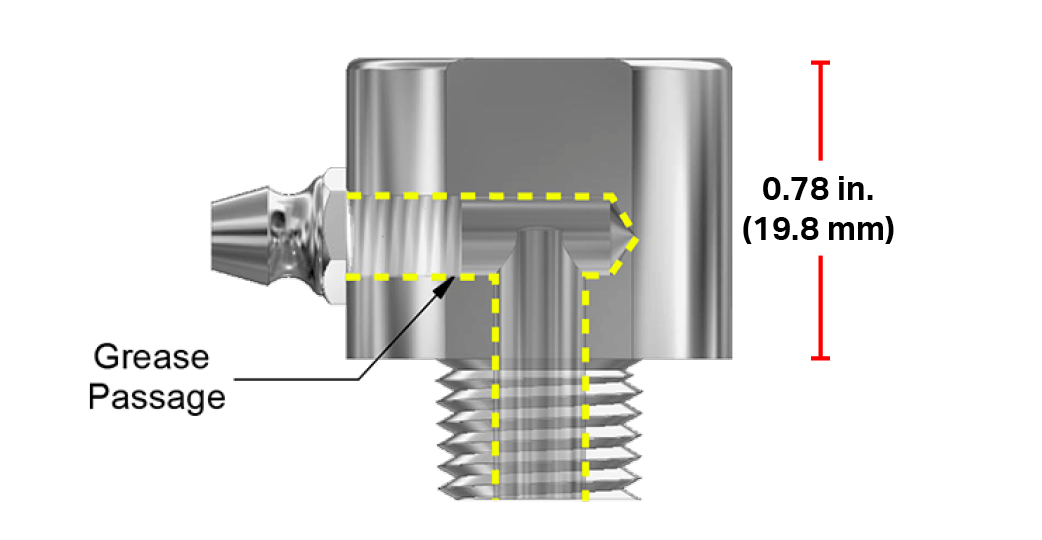

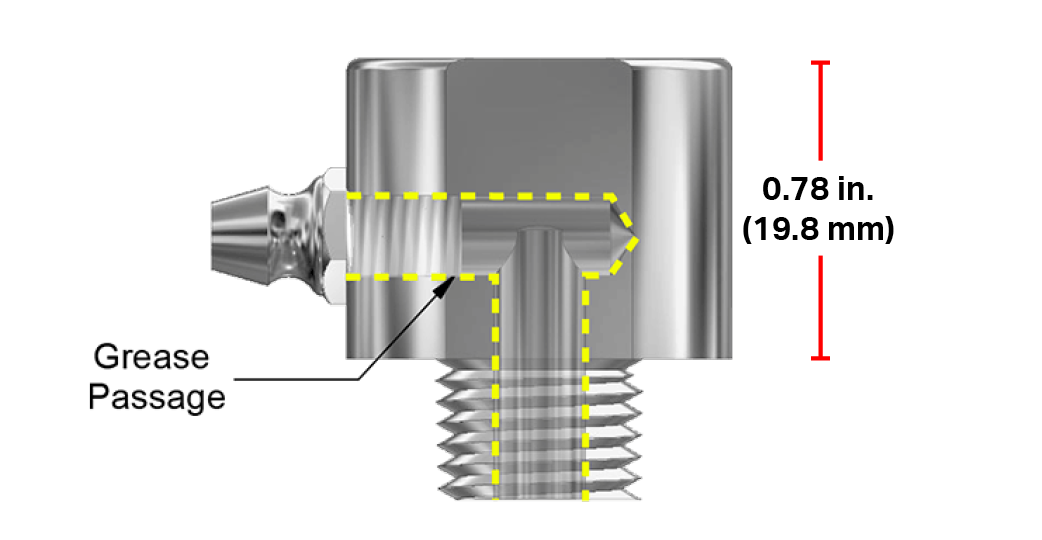

Zerk & Specialty Mounting Adapters:
Motor Fin Mount Probe Pads:
Easily take measurements from hard-to-reach places. Our fin mount probes are perfect for narrow measurement points in motors, turbines, and other machinery. Fin mounts can be used for portable route measurements or permanently mounted accelerometers.
Accelerometer Installation Tool Kits:
HIGH-SPEED STEEL END MILL TOOLKITS:
| Part Number | Thread Size |
Pilot Drill Size |
Taps & Tap Handle Supplies | Shaft Diameter | End Mill Diameter |
| MH117-1A | 1/4 - 28 | #3 | No | 3/8 in. | 1 1/4 in. |
| MH117-1B | 1/4 - 28 | #3 | *Yes 1/4 - 28 | 3/8 in. | 1 1/4 in. |
| MH117-2A | 10 - 32 | 5/32 in. | No | 3/8 in. | 1 in. |
| MH117-2B | 10 - 32 | 5/32 in. | *Yes 10 - 32 | 3/8 in. | 1 in. |
| MH117-3A | 1/4 - 28 | #3 | No | 3/8 in. | 1 in. |
| MH117-3B | 1/4 - 28 | #3 | *Yes 1/4 - 28 | 3/8 in. | 1 in. |
| MH117-4A | M6 x 1 | 5.2 mm | No | 9.53 mm | 31.75 mm |
| MH117-4B | M6 x 1 | 5.2 mm | *Yes M6 x 1 | 9.53 mm | 31.75 mm |
| MH117-5A | 1/4 - 28 | #3 | No | 3/8 in. | 5/8 in. |
| MH117-5B | 1/4 - 28 | #3 | *Yes 1/4 - 28 | 3/8 in. | 5/8 in. |
| MH117-6A | M8 x 1.25 | 7.1 mm | No | 12.7 mm | 31.75 mm |
| MH117-6B | M8 x 1.25 | 7.1 mm | *Yes M8 x 1.25 | 12.7 mm | 31.75 mm |
| MH117-7A | M6 x 1 | 5.2 mm | No | 9.53 mm | 25.4 mm |
| MH117-7B | M6 x 1 | 5.2 mm | *Yes M6 x 1 | 9.53 mm | 25.4 mm |
CARBIDE-TIPPED TOOLKITS FOR INCREASED TOOL LIFE:
| Part Number | Thread Size |
Pilot Drill Size |
Taps & Tap Handle Supplies | Shaft Diameter | End Mill Diameter |
| MH117-11A | 1/4 - 28 | #3 | No | 3/8 in. | 1 1/4 in. |
| MH117-11B | 1/4 - 28 | #3 | *Yes 1/4 - 28 | 3/8 in. | 1 1/4 in. |
| MH117-13A | 1/4 - 28 | #3 | No | 3/8 in. | 1 in. |
| MH117-13B | 1/4 - 28 | #3 | *Yes 1/4 - 28 | 3/8 in. | 1 in. |
| MH117-15A | 1/4 - 28 | #3 | No | 3/8 in. | 5/8 in. |
| MH117-15A | 1/4 - 28 | #3 | *Yes 1/4 - 28 | 3/8 in. | 5/8 in. |
VibeNavigator™ Data Collection Extension Poles:
Collect data from hard-to-reach places and improve analyst safety with our VibeNavigator™ Data Collection Extension Pole, featuring an integrated breakaway safety feature connector and internally routed cable for improved analyst safety. Single axis sensor, TCEB circular triaxial sensor, and Emerson triaxial sensor compatible versions are available (please note, sensor, magnet, and mating cable are sold separately).
