EMERSON/CSI EQUIVALENT & COMPATIBLE CABLE ADAPTERS

CTC is proud to offer a wide selection of cable adapters engineered to work seamlessly with Emerson/CSI data collectors.

At-A-Glance Equivalent Cable Adapter Part Numbers Chart

CTC offers the following parts which are a direct equivalent to the listed corresponding Emerson/CSI part number.

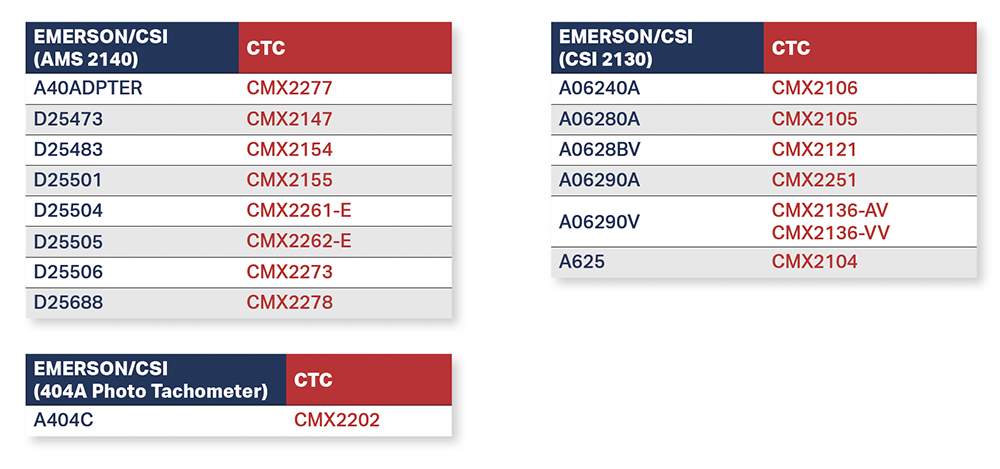

charts showing equivalent Emerson/CSI Equivalent CTC Part Numbers.

Cable Adapters Equivalent Part Numbers - Detailed Product Descriptions

A render of a 25 pin CTC CMX2106 data collector connector compatible with Emerson/CSI A06240A

EMERSON / CSI PN: A06240A
CTC PN: CMX2106

25 Pin Adapter with Single BNC Input, Dual Output Wired for Channel “A” Acceleration Input, Channel “B” PeakVue, 221 °F (105 °C) Maximum Temperature, Compatible with CSI 2120/2130 Data Collector

CMX2106 Datasheet | Shop CMX2106

A render of a CTC CMX2105 Emerson compatible data collector adapter.

EMERSON / CSI PN: A06280A
CTC PN: CMX2105

25 Pin Adapter with Dual BNC Outputs, Channel “A” Acceleration Output, Channel “B” Acceleration Output, 221 °F (105 °C) Maximum Temperature, Compatible with CSI 2120/2130 Data Collector

CMX2105 Datasheet | Shop CMX2105

A render of a CTC CMX2121 25 Pin Connector with BNC Input on Top and Side.

EMERSON / CSI PN: A0628BV
CTC PN: CMX2121

25 Pin Adapter with Dual BNC Jacks, Wired for Dual Channel Voltage Input, 221 °F (105 °C) Maximum Temperature, Compatible with CSI 2120 Data Collector

CMX2121 Datasheet | Shop CMX2121

A render of a CTC CMX2251 data collector adapter with yellow and blue heat shrinks.

EMERSON / CSI PN: A06290A
CTC PN: CMX2251

2 Channel 5 Pin Molded M12 Connector to 2 Molded M12 Sockets, Dual Channel Acceleration Input, Channel “A” Yellow, Channel “B” Blue, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 m) Cable Diameter, Two 0.175 (4.45 mm) Cable Diameters, 18 in. (45.7 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2130 Data Collector

CMX2251 Datasheet | Shop CMX2251

A render of a CTC CMX2136-AV 25 pin data collector adapter.

EMERSON / CSI PN: A06290V
CTC PN: CMX2136-AV

25 Pin Adapter with Dual BNC “E” Jacks, Channel “1” Acceleration Input, Channel “2” Voltage Input, 221 °F (105 °C) Maximum Temperature, Compatible with CSI 2130 Data Collector

CMX2136-AV Datasheet | Shop CMX2136-AV

A render of a CTC CMX2136-VV 25 pin data collector adapter.

EMERSON / CSI PN: A06290V
CTC PN: CMX2136-VV

25 Pin Adapter with Dual BNC Jacks, Channel “1” Voltage Input, Channel “2” Voltage Input, 221 °F (105 °C) Maximum Temperature, Compatible with CSI 2130 Data Collector

CMX2136-VV Datasheet | Shop CMX2136-VV

A render of a CTC CMX2202 data collector adapter cable.

EMERSON / CSI PN: A404C
CTC PN: CMX2202

4 Socket AMP Adapter to Splitter with One BNC “F” Plug and One 0.25 in. (0.64 cm) Power Adapter, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 (4.45 mm) Cable Diameters, 18 in. (45.7 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with 404A Photo Tachometer

CMX2202 Datasheet | Shop CMX2202

An render of a CTC CMX2277 data collector adapter with red, blue, grey, and black heat shrinks.

EMERSON / CSI PN: A40ADPTER
CTC PN: CMX2277

8 Pin Circular M12 Connector to Four BNC “E” Jacks, Channel “A” Red Voltage Input, Channel “B” Blue Voltage Input, Channel “C” Grey Voltage Input, Channel “D” Black Voltage Input, Black Polyurethane Jacketed, 4-Conductor Cable into Four 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Four 0.175 in. (4.45 mm) Cable Diameters, 17 in. (43.2 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with AMS 2140 Data Collector

CMX2277 Datasheet | Shop CMX2277

A render of a CTC CMX2101 25 pin data collector adapter.

EMERSON / CSI PN: A611
CTC PN: CMX2101

25 Pin Adapter with Single BNC Jack, Channel “1” Acceleration Input, 221 °F (105 °C) Maximum Temperature, Compatible with CSI 2120/2130 Data Collector

CMX2101 Datasheet | Shop CMX2101

A render of a CTC CMX2204 25 pin data collector adapter.

EMERSON / CSI PN: A625
CTC PN: CMX2104

25 Pin Adapter to Dual BNC “E” Jacks, Channel “1” Acceleration Input, Channel “2” Voltage Input, 221 °F (105 °C) Maximum Temperature, Compatible with CSI 2120/2130 Data Collector

CMX2104 Datasheet | Shop CMX2104

A render of a CTC CMX2247 data collector adapter.

EMERSON / CSI PN: D25473
CTC PN: CMX2147

8 Pin Molded M12 Connector to 4 Pin LEMO® Connector, Single Channel Tachometer Input, Black Polyurethane Jacketed 2 Conductor Cable, 0.175 in. (4.45 mm) Cable Diameter, 22 in. (55.9 cm) Cable Length, 194 °F (90 °C) Maximum Temperature, Compatible with AMS 2140 Data Collector

CMX2147 Datasheet | Shop CMX2147

A render of a CTC CMX2154 data collector adapter.

EMERSON / CSI PN: D25483
CTC PN: CMX2154

5 Pin Molded M12 Connector to BNC “F” Plug, Single Channel Acceleration Input, Black Polyurethane Jacketed 2 Conductor Cable, 0.25 in. (6.35 mm) Cable Diameter, 8 in. (20.3 cm) Cable Length, 176 °F (80 °C) Maximum Temperature, Compatible with AMS 2140 Data Collector

CMX2154 Datasheet | Shop CMX2154

A render of a CTC CMX2155 data collector adapter.

EMERSON / CSI PN: D25501
CTC PN: CMX2155

5 Pin A-Coded M12 Connector to 5 Socket A-Coded M12 Adapter, 4 Channel Acceleration Input, Black Polyurethane Jacketed 6 Conductor Cable, 0.25 in. (6.35 mm) Cable Diameter, 9 in. (23 cm) Cable Length, 176 °F (80 °C) Maximum Temperature, Compatible with AMS 2140 Data Collector

CMX2155 Datasheet | Shop CMX2155

A render of a CTC CMX2261-E data collector adapter.

EMERSON / CSI PN: D25504
CTC PN: CMX2261-E

5 Pin M12 Connector to Dual BNC “E” Jacks, Dual Channel Acceleration Input, Channel “A” Red, Channel “B” Blue, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.7 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with AMS 2140 Data Collector

CMX2261-E Datasheet | Shop CMX2261-E

A render of a CTC CMX2262-E data collector adapter.

EMERSON / CSI PN: D25505
CTC PN: CMX2262-E

5 Pin M12 Connector to Dual BNC “E” Jacks, Dual Channel Acceleration Input, Channel “C” Grey, Channel “D” Black, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.7 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with AMS 2140 Data Collector

CMX2262-E Datasheet | Shop CMX2262-E

A render of a CTC CMX2273 data collector adapter.

EMERSON / CSI PN: D25506
CTC PN: CMX2273

8 Pin Circular M12 Adapter to Dual BNC “E” Jacks, Channel “A” Red Voltage Input, Channel “B” Blue Voltage Input, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.7 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with AMS 2140 Data Collector

CMX2273 Datasheet | Shop CMX2273

A render of a CTC CMX2278 data collector adapter with red, blue, and yellow heat shrinks.

EMERSON / CSI PN: D25688
CTC PN: CMX2278

8 Pin Circular M12 Connector to Three BNC “E” Jacks, Three Channel Voltage Input, Channel “A” Red, Channel “B” Blue, Tach Yellow, Black Polyurethane Jacketed, 4-Conductor Cable into Three 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Three 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.7 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with AMS 2140 Data Collector

CMX2278 Datasheet | Shop CMX2278

Cable Adapters Compatible Part Numbers - Detailed Product Descriptions

CTC offers the following parts which do not have a direct equivalent Emerson/CSI part number, but are compatible for use with Emerson/CSI Data Collectors.

A render of a CTC CMX2171 data collector adapter.

CTC PN: CMX2171

8 Pin Circular M12 Connector to BNC “E” Jack, Single Channel Voltage Input, Black Polyurethane Jacketed 2 Conductor Cable, 0.25 in. (6.35 mm) Cable Diameter, 2 ft. (0.61 m) Cable Length, 176 °F (80 °C) Maximum Temperature, Compatible with CSI 2140 Data Collector

CMX2171 Datasheet | Shop CMX2171

A render of CTC CMX2135 data collector adapter.

CTC PN: CMX2135

5 Pin M12 Connector to BNC Jack, Single Channel Acceleration Input, Black Polyurethane Jacketed 2 Conductor Cable, 0.25 in. (6.35 mm) Cable Diameter, 18 in. (45.72 cm) Cable Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2130/2140 Data Collectors

CMX2135 Datasheet | Shop CMX2135

A render of a CTC CMX2148 data collector adapter.

CTC PN: CMX2148

8 Pin M12 Connector to 4 Pin Amphenol Connector, Single Channel Tachometer Input, Black Polyurethane Jacketed 4 Conductor Cable, 0.175 in. (4.45 mm) Cable Diameter, 2 ft. (0.61 m) Cable Length, 194 °F (90 °C) Maximum Temperature, Compatible with CSI 2140 with 404 Series Laser Tach

CMX2148 Datasheet | Shop CMX2148

A render of a CTC CMX2149 data collector adapter.

CTC PN: CMX2149

8 Pin M12 Connector to BNC “F” Plug, Single Channel Tachometer Input, Black Polyurethane Jacketed 4 Conductor Cable, 0.175 in. (4.45 mm) Cable Diameter, 2 ft. (0.61 m) Cable Length, 194 °F (90 °C) Maximum Temperature, Compatible with CSI 2140 with TTL Tach

CMX2149 Datasheet | Shop CMX2149

A render of a CTC CMX2252 data collector adapter.

CTC PN: CMX2252

5 Pin M12 Connector to Dual BNC “E” Jacks, Dual Channel Acceleration Input, Channel “A” Yellow, Channel “B” Blue, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2130 Data Collector

CMX2252 Datasheet | Shop CMX2252

A render of a CTC CMX2253 data collector adapter with yellow and blue heat shrinks.

CTC PN: CMX2253

5 Pin M12 Connector to Dual BNC “F” Jacks, Dual Channel Acceleration Input, Channel “A” Yellow, Channel “B” Blue, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2130 Data Collector

CMX2253 Datasheet | Shop CMX2253

A render of a CTC CMX2261-F data collector adapter with red and blue heat shrinks.

CTC PN: CMX2261-F

5 Pin M12 Connector to Dual BNC “F” Plugs, Dual Channel Acceleration Input, Channel “A” Red, Channel “B” Blue, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2140 Data Collector

CMX2261-F Datasheet | Shop CMX2261-F

A render of a CTC CMX2261-T data collector adapter with red and blue heat shrinks.

CTC PN: CMX2261-T

5 Pin M12 Connector to Dual M12 Sockets, Dual Channel Acceleration Input, Channel “1” Red, Channel “2” Blue, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2140 Data Collector

CMX2261-T Datasheet | Shop CMX2261-T

A render of a CTC CMX2262-F data collector adapter with grey and black heat shrinks.

CTC PN: CMX2262-F

5 Pin M12 Connector to Dual BNC “F” Plugs, Dual Channel Acceleration Input, Channel “C” Grey, Channel “D” Black, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2140 Data Collector

CMX2262-F Datasheet | Shop CMX2262-F

A render of a CTC CMX2262-T data collector adapter with grey and black heat shrinks.

CTC PN: CMX2262-T

5 Pin M12 Connector to Dual M12 Socket, Dual Channel Acceleration Input, Channel “C” Grey, Channel “D” Black, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2140 Data Collector

CMX2262-T Datasheet | Shop CMX2262-T

A render of a CTC CMX2272 data collector adapter with red and yellow heat shrinks.

CTC PN: CMX2272

8 Pin Circular M12 Connector to Dual BNC Connectors, Voltage and Tachometer Input, Channel “A” Red, Tach Yellow, Black Polyurethane Jacketed, 4-Conductor Cable into Two 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Two 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2140 with TTL Tach

CMX2272 Datasheet | Shop CMX2272

A render of a CTC CMX2274 with red, yellow, and blue heat shrinks.

CTC PN: CMX2274

8 Pin Circular M12 Connector to Dual BNC “E” Jacks and One BNC “F” Plug, Dual Voltage Input and Tachometer Input, Channel “A” Red, Channel “B” Blue, Tach Yellow, Black Polyurethane Jacketed, 4-Conductor Cable into Three 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Three 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2140 Data Collector

CMX2274 Datasheet | Shop CMX2274

A render of a CTC CMX2275 data collector adapter with red, blue, and grey heat shrinks.

CTC PN: CMX2275

8 Pin Circular M12 Connector to Three BNC “E” Jacks, Three Channel Voltage Input, Channel “A” Red, Channel “B” Blue, Channel “C” Grey, Black Polyurethane Jacketed, 4-Conductor Cable into Three 2-Conductor Cables, One 0.25 in. (6.35 mm) Cable Diameter, Three 0.175 (4.45 mm) Cable Diameters, Three 0.175 in. (4.45 mm) Cable Diameters, 18 in. (45.72 cm) Overall Length, 250 °F (121 °C) Maximum Temperature, Compatible with CSI 2140 Data Collector

CMX2275 Datasheet | Shop CMX2275
