Portable Network Kit for CTC Connect Wireless Condition Monitoring
CTC's portable network solution makes it easy to deploy wireless condition monitoring wherever it's needed, including temporary installs, pilots, demos, troubleshooting, or hard-to-reach assets.
By combining a high-performance cellular router, CTC ConnectSensTM Wireless Sensors, and the CTC ConnectBridgeTM ACCESS360 platform, users can spin up a self-contained monitoring network in minutes, with no plant infrastructure required.

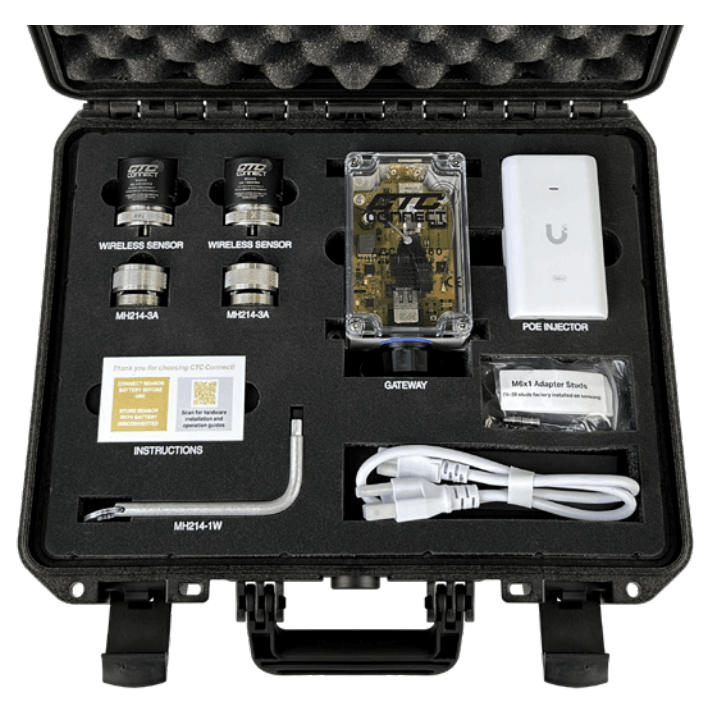

WSK Series Wireless Starter Kit Options
Our convenient Connect Wireless Starter Kit includes:
- Your choice of 2 ConnectSensTM Wireless Sensors - WS100*, WS200, or WS300
*WS100 Series ConnectSens Wireless Process Control Sensors are NOT recommended for temporary installations, pilots, or demos. These non-connectable sensors cannot be triggered or reconfigured on demand. - MH214-3A Multipurpose Mounting Magnets (x2)
- ConnectBridgeTM ACCESS360 Network Controller and Wireless Gateway
- WS-PoE Power over Ethernet Injector
- Includes durable TSA-approved storage case
If a starter kit is not desired, standard WS200 or WS300 Series ConnectSensTM Wireless Sensors paired with ConnectBridgeTM Wireless Gateway provide a flexible and effective alternative.
Suggested Router
TELTONIKA RUTM20
Please note, this router must be purchased from the manufacturer - use the button above to shop now
Key Connectivity Specifications
| 5G Sub-6 GHz (SA / NSA) |
| Up to 2.5 / 3.4 Gbps downlink (4 x 4 MIMO) |
| Up to 900 / 500 Mbps uplink (2 x 2) |
| 4G LTE |
| LTE Cat 19 - up to 1.6 Gbps DL |
| LTE Cat 18 - up to 211 Mbps UL |
| 3G |
| Up to 42 Mbps DL, 5.7 Mbps UL |
Setup
- After configuring the cellular network, connect the ACCESS360 gateway to the Teltonika RUTM20 router using a standard Ethernet cable.
- Install batteries in the wireless sensors and begin collecting data.
Note: When using the Teltonika RUTM20 router, a PoE Injector is not required. This reduces hardware complexity and simplifies setup.
