SBX02 Series Standard Size
Fiberglass Enclosure
Stainless Steel Enclosure
SINGLE AXIS VIBRATION SWITCH BOX, FIBERGLASS ENCLOSURE, NEMA 4X (IP66) RATED, SENSOR INPUT OPTIONS: 4 TO 12 SINGLE OUTPUT SENSOR INPUTS
- Provides a switched output from remotely installed sensors to a data collector through a BNC and a 2 Pin MIL spec connector
- Internally earth grounded for noise reduction
- -58 to 180 °F (-50 to 82 °C) Temperature Range
COMPLIANCE INFO
California Proposition 65 Statement
China RoHS Compliance Statement
EU Battery Compliance Statement
EU Declaration of Conformity
EU POPs Declaration of Compliance
EU Waste Compliance Statement
PFA Usage Statement
REACH Compliance Statement
RMI Conflict Minerals Compliance Report
RMI Extended Minerals Compliance Report
RoHS Compliance Statement
TSCA Compliance Statement
SB102: Fiberglass Switch Box, Standard Size

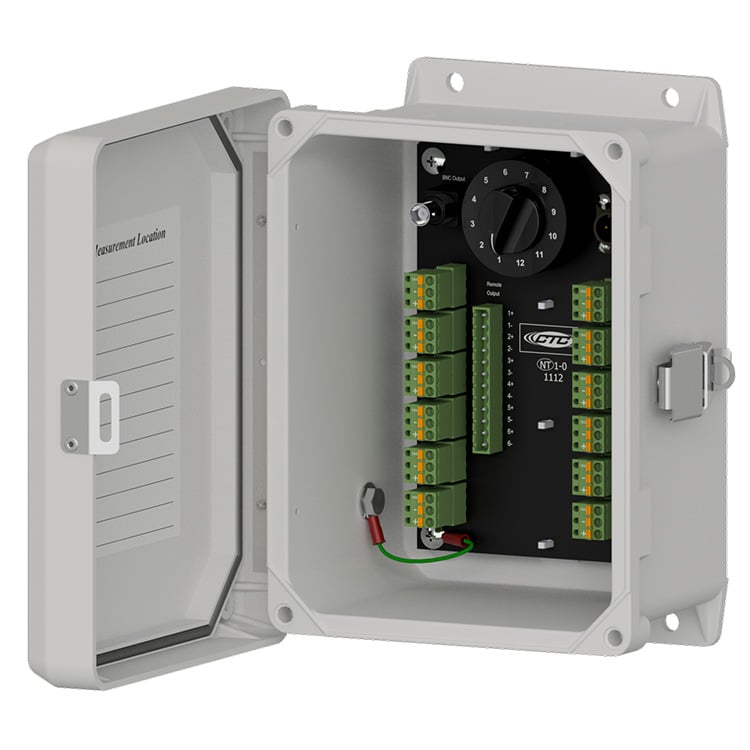

The SB102 standard size, fiberglass switch box is used to convert the two-conductor input wiring of up to 12 remotely installed single-axis accelerometers or piezo velocity sensors to a switched BNC and a switched two-pin MIL spec connector for data collection. Input wiring from each sensor is connected to the outputs via spring cage or screw terminal blocks. Each terminal block includes inputs for positive, negative and shield. The shield drain wire is earth grounded via a ground stud that is mounted to the side of the fiberglass enclosure. Additionally, the SB102 comes equipped with built-in online expansion jacks. To utilize this feature, simply purchase JB905-1A (12 position, spring cage plug) or JB905-2A (12 position, screw terminal plug) and connect your output wiring for continuous, live readings. Please note, JB905-1A and JB905-2A are sold separately. One JB905-1A or JB905-2A plug is required per six channels of measurement.
Rated for NEMA 4X (IP66), the SB102 can withstand harsh environments including temperatures ranging from -58 to 180 °F (-50 to 82 °C). The box is also resistant to hose directed fluid and corrosion. A snap latch is installed on the door allowing the box to be sealed from the elements when not in use.
