MX102 - MX202
Fiberglass Enclosure
Stainless Steel Enclosure
SINGLE AXIS MAXX BOX, ENCLOSED INDIVIDUAL BNC CONNECTORS, FIBERGLASS ENCLOSURE, NEMA 4X (IP66) RATED, SENSOR INPUT OPTIONS: 1 TO 12 SINGLE OUTPUT SENSORS
- Connects remotely installed sensors to portable data collectors
- Internally earth grounded for noise reduction
- -58 to 180 °F (-50 to 82 °C) Temperature Range
COMPLIANCE INFO
California Proposition 65 Statement
China RoHS Compliance Statement
EU Battery Compliance Statement
EU Declaration of Conformity
EU POPs Declaration of Compliance
EU Waste Compliance Statement
PFA Usage Statement
REACH Compliance Statement
RMI Conflict Minerals Compliance Report
RMI Extended Minerals Compliance Report
RoHS Compliance Statement
TSCA Compliance Statement

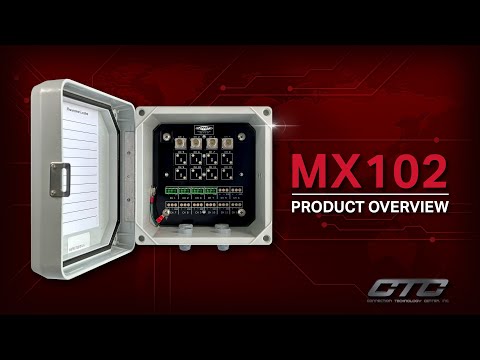

MX102 Fiberglass MAXX Box
The MX102 fiberglass enclosed BNC connection box is used to convert the two-conductor input wiring of up to 12 remotely installed single-axis accelerometers or piezo velocity sensors to BNC outputs for portable data collection. Input wiring from each sensor is connected to the outputs via spring cage or screw terminal blocks inside the enclosure. Each terminal block includes inputs for signal/power, common and shield. The shield drain wire is earth grounded via an external ground stud that is mounted to the side of the fiberglass enclosure.
Rated for NEMA 4X (IP66), the MX102 Series can withstand harsh environments including temperatures ranging from -58 to 180 °F (-50 to 82 °C). The box is also resistant to hose directed fluid and corrosion. A snap latch is installed on the door allowing the box to be sealed from the elements when not in use.
