MX505
TRIAXIAL INPUT & OUTPUT MINI-MAXX BOX, M12 STYLE CONNECTOR COMPATIBLE, ALUMINUM ENCLOSURE, NEMA 4X (IP66) RATED, SENSOR INPUT OPTIONS: 1 OR 2 TRIAXIAL OUTPUT SENSORS
- Provides a low cost solution that is ideal for harsh environments, including cooling towers and other wet or dusty environments
- Internally earth grounded for noise reduction
- -58 to 180 °F (-50 to 82 °C) Temperature Range
COMPLIANCE INFO
California Proposition 65 Statement
China RoHS Compliance Statement
EU Battery Compliance Statement
EU Declaration of Conformity
EU POPs Declaration of Compliance
EU Waste Compliance Statement
PFA Usage Statement
REACH Compliance Statement
RMI Conflict Minerals Compliance Report
RMI Extended Minerals Compliance Report
RoHS Compliance Statement
TSCA Compliance Statement

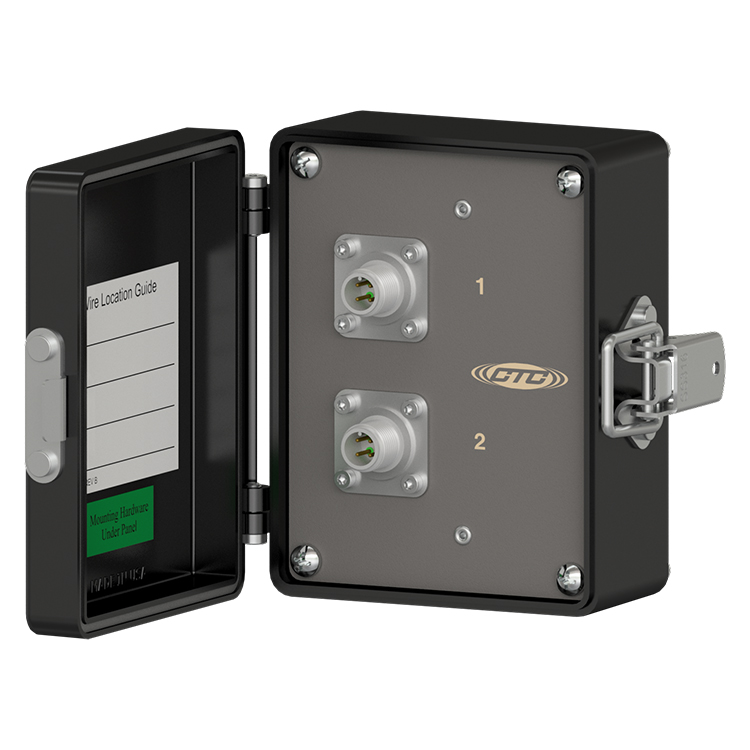

MX505: Aluminum Mini-MAXX Box

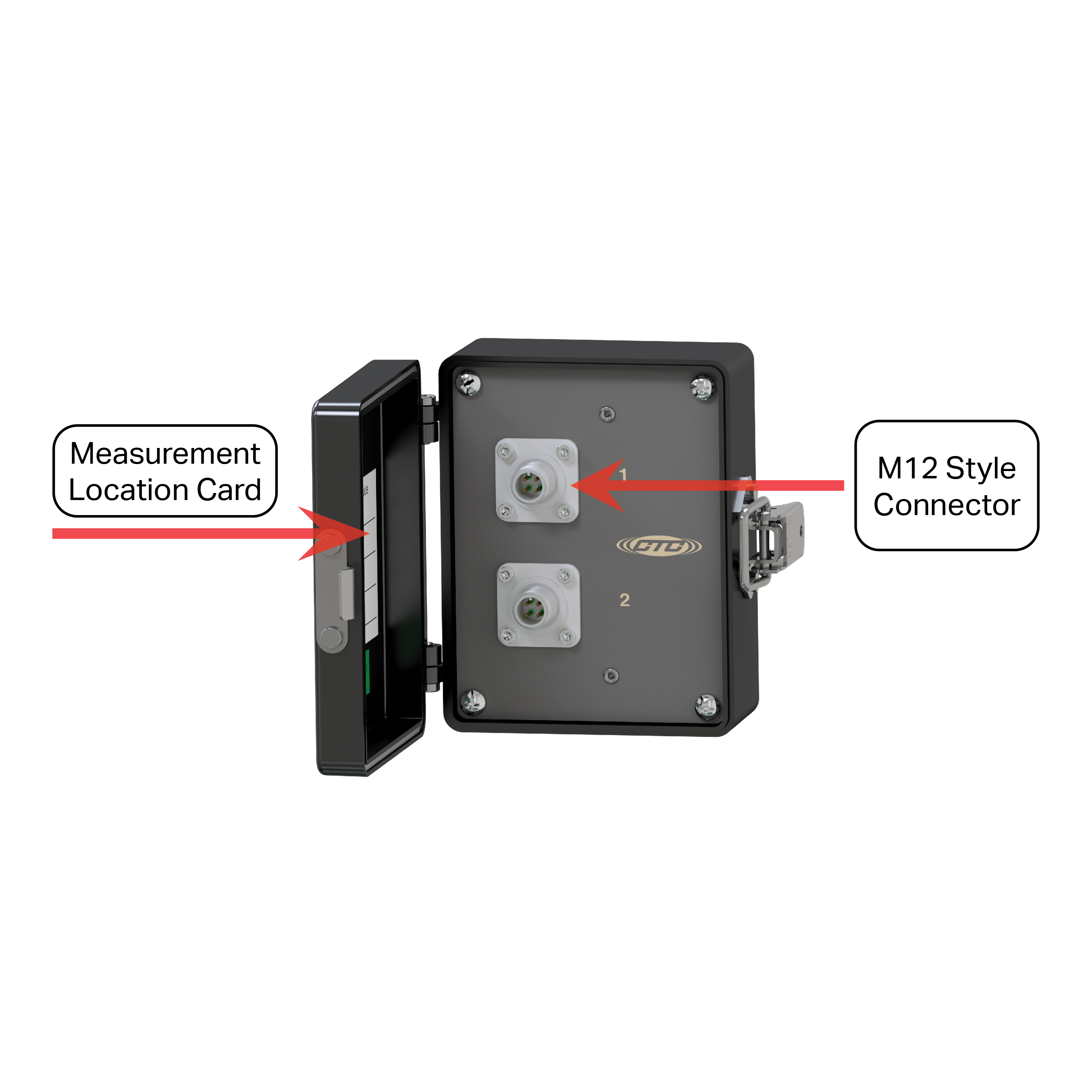

The MX505 powder-coated aluminum, miniature enclosed BNC connection box is used to convert the four-conductor input wiring of up to two triaxial accelerometers or piezo velocity sensors to a portable data collection unit. Each sensor is wired to a four-pin M12 connector on the front of the panel via an internal terminal strip that is located on the reverse side of the panel. Connections on the terminal strip are clearly labeled for an X, Y, and Z input as well as common and the shield drain wire. The shield drain wire is earth grounded via the aluminum enclosure. The four-pin connectors on the MX505 enclosure are compatible with CTC’s M4C connector. Data collector cables for interface with this enclosure can be built using CTC's Cable Wizard.
Rated for NEMA 4X (IP66), the MX505 Series can withstand harsh environments including temperatures ranging from -58 to 180 °F (-50 to 82 °C). The box is also resistant to hose directed fluid and corrosion. A snap latch is installed on the door allowing the box to be sealed from the elements when not in use. This box is ideal for low cost applications in harsh environments, and/or applications with space constraints which require a small form factor.
